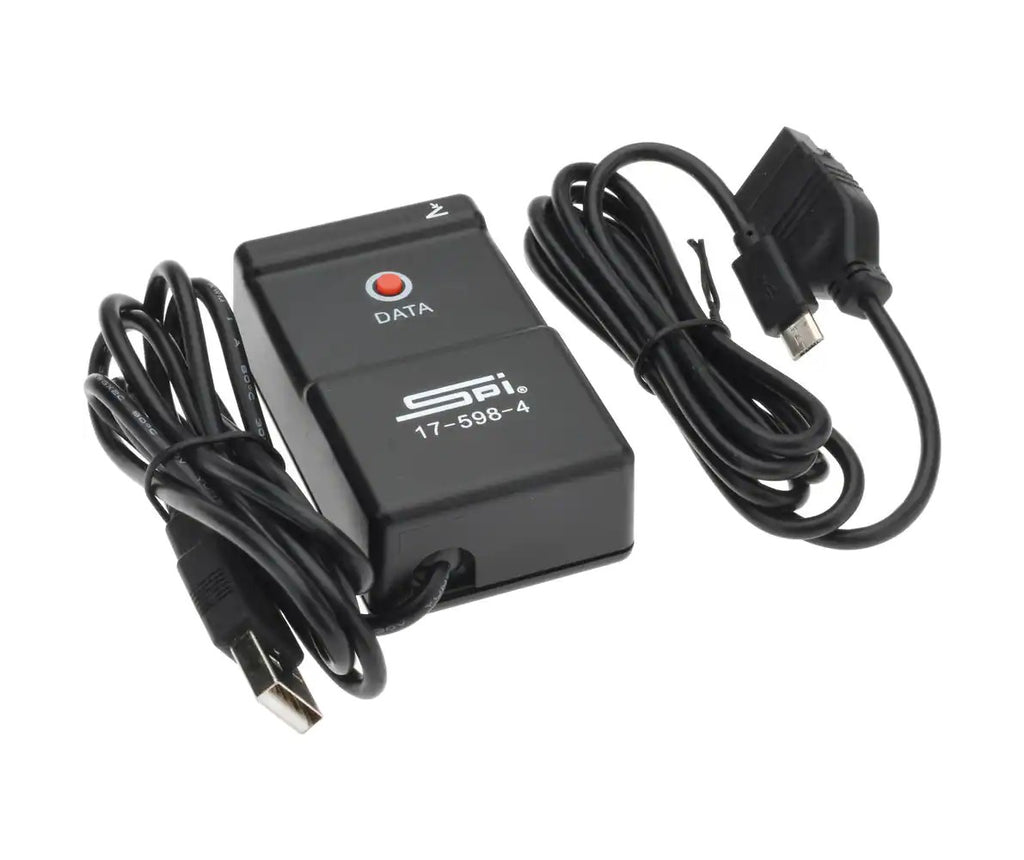

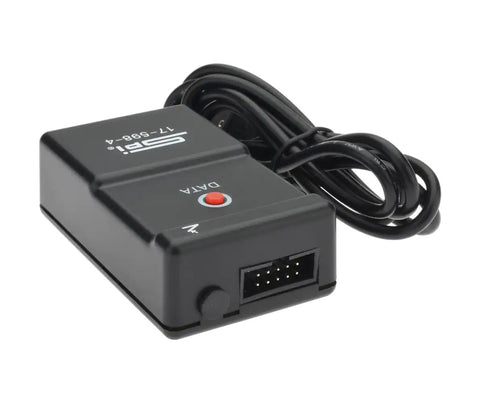

USB Direct Cable Gage Interface for SPI Gages

Send data directly to Excel---No Software Wedge Required

This USB Direct Cable single gage interface connects the SPI's Electronic Micrometer models...

• 15-953-3 (0-1")
• 15-954-1 (1-2")
• 15-955-8 (2-3")
• 15-956-6 (3-4")
• 15-957-4 (4-5")
• 15-958-2 (5-6")

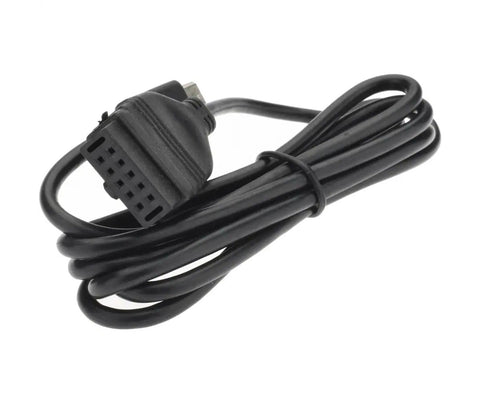

This gage interface connects directly to the device, no additional cables required. The output of the USB Direct Cable gage interface is a standard USB 2.0 keyboard signal, so the incoming data will be treated by Windows just like it was typed in on a keyboard.

Connecting the USB Direct Cable with its built-in keyboard wedge to a computer will allow the USB Direct Cable gage interface to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. The USB Direct Cable gage interface will make the gage readings appear as if they were typed in using a standard keyboard - eliminates data acquisition errors. If you want to collect data into a Microsoft Excel spreadsheet or Explorer based SPC programs, simply select the cell where you want the data to appear.
