52-710-025-0 Coaxial Indicator Set Centering Indicator Fowler

52-710-025-0 Coaxial Indicator Set

$ 289.55$ 232.00

Customer Reviews

Customer Reviews

Based on 1 review Write a review

Product Description

Fowler's Coaxial Indicator Set

Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters. Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.

Features include...

  • Length: 6 7/8" / 175mm
  • Shank Dia: 3/8" x 7/8" / 10mm x 20mm long
  • Feeler Ball: 1/8" diameter
  • Dial Reading: 0-50
  • Locating Accuracy within 0.0002" of true center.
  • Operating speed not to exceed 800 RPM.
  • Capacity: 5/32" - 12" Internal; Up to 12" external
  • Graduations: 0.0005"

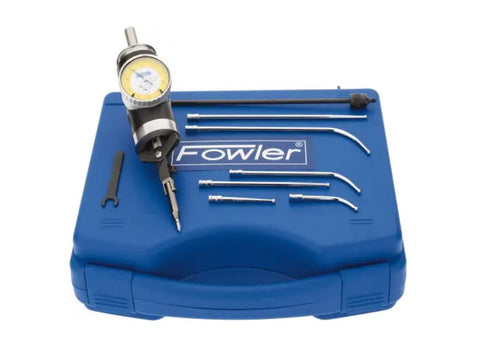

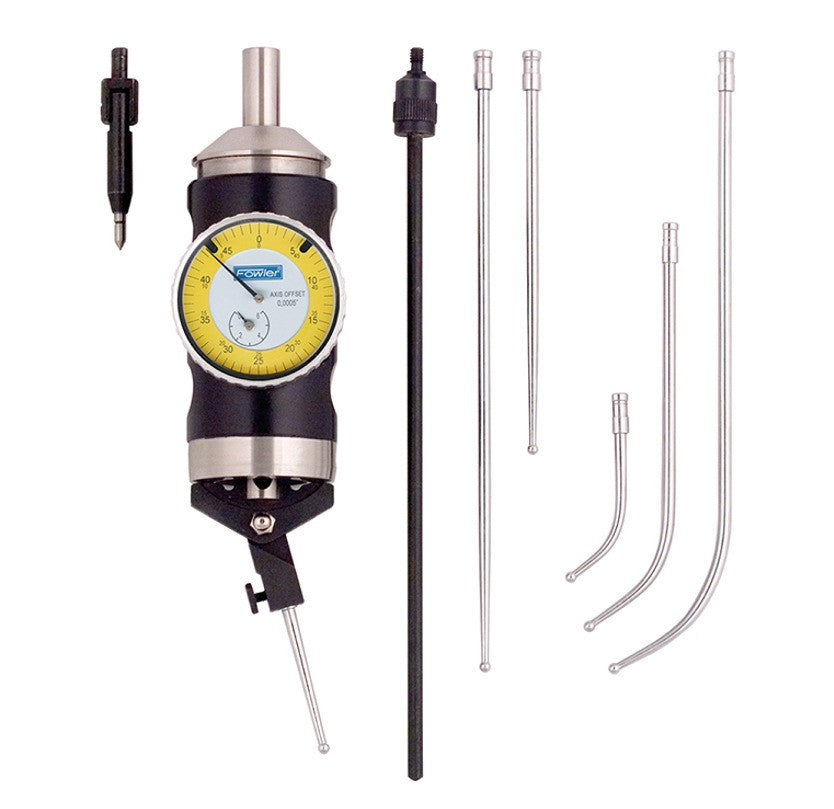

Kit includes each of the following...

  • Indicator
  • 3 Internal Feelers
  • 3 External Feelers
  • Center Locating Feeler
  • Fitted Box
