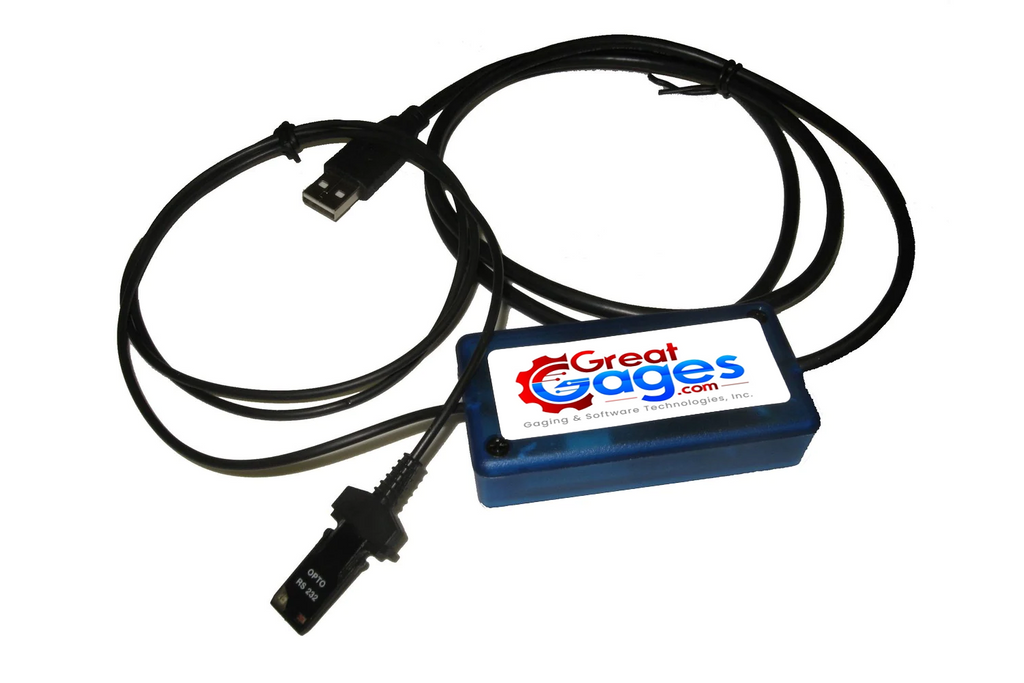

Mahr Federal MarCal / Fowler Sylvac Ultra-Cal USB Direct Cable Send data directly to Excel---No Software Wedge Required Simplify your SPC data acquisition system. The USB Direct Cable is a single gage interface that connects the Mahr Federal MarCal / Digimar 16ESv, Fowler Sylvac Ultra-Cal, Euro-Cal (such as Mark II, Mark III, Mark IV, Mark V) or Starrett 797 and others to Excel or Explorer based SPC programs. See below for complete list of gage model options. This USB Direct Cable uses an optic RS232C Simplex coupling signal cable connector---no additional cables required. The output of the USB Direct Cable is a standard USB 2.0 keyboard signal. Connecting the USB Direct Cable with its built-in keyboard wedge to a computer will allow your gage to be identified as a keyboard device that can send data to any Microsoft Windows application or other spreadsheet programs - no software wedge required. Never again struggle when your software application changes. Our Keyboard interface always works when your operating or SPC software is updated. The USB Direct Cable will make the gage readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear. No configuration or set-up required! Readings can be triggered by the following: Pressing the button on the USB Direct Cable Depressing a connected footswitch (not included) LED Indicator lights aid the user with the operation of the USB Direct Cable. This USB Direct Cable is easily configured to output data in different output modes on your spreadsheet, such as CR, TAB, up, down, left, or right. The output mode is selected by adjusting the rotary switch on the USB Direct Cable. To access the rotary switch, simply remove the top cover by loosening two Phillips screws. Six foot overall cable length with special lengths available on request. A detailed operation manual is included with each USB Direct Cable. Refer to the gage user manual for more information on external communication. USB Direct Cable for: Fowler Sylvac Ultra-Cal, Euro-Cal (such as Mark II, Mark III, Mark IV, Mark V) Starrett 797 Electronic Digital Calipe Starrett 782 Micromerter Starrett 781 Accubore Mahr Federal 25ES / 27ES / 31ES / 32 ES MarCal MultiMar Caliper Mahr Federal M 814 Digimar Mahr Federal 106 ES MarTool Protractor Mahr Federal 1082 Bowers Micrometer Brown & Sharpe Micrometer Euro-Cal III Caliper Mark II Bore Gage S_Cal Calipers Sylvac Calipers Syvac Gages with Paddle Sylvac Series 213 indicators Digital Ultra-Height Gage Holematic MarkII XT Holematic and HoleMikes MiniVertical Series II Starrett 781 Accubore Starrett 782 Micromerter Starrett 797 Caliper Mahr 25 ES / 27 ES / 31 ES / 32 ES Mahr 106 ES Mahr 1082 Mahr Digimar M 814 Multimar 25 ES MarTool 106 ES Features: Sends data to Excel or other Explorer based SPC programs Multiple data triggering options Special cable lengths available on request Lifetime warranty against manufacturing defects
