Shop Floor CNC CMM
MiSTAR 555 CMM
Promotional Package Includes:
MiSTAR 555 Shop Floor CNC CMM
- MCOSMOS Level 1 version 5.2 software

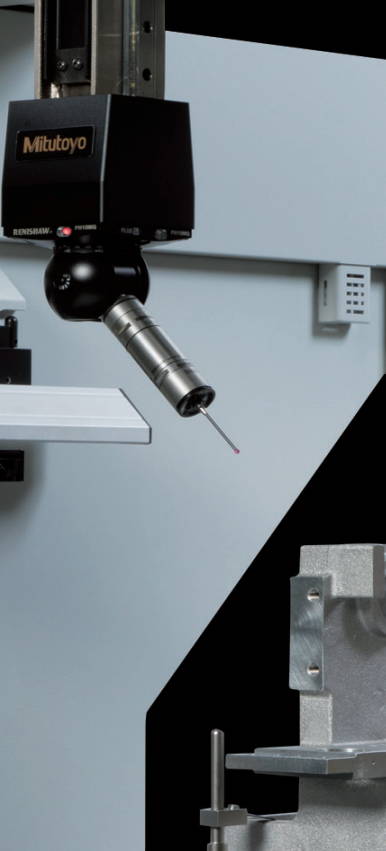

- PH6M SP25 Fixed head scanning probe system FCR25 port rack
- Factory Trained Installation, Training, and A2LA Accredited Calibration
- MiCAT Planner Enhanced Programming software at no charge
- Includes QuickLauncher to easily start a measurement program from included touch screen
- 2 Days of part programming from Enhanced Services Division
Key Benefits
- Environment-resistant absolute scale system
- Best-in-class accuracy reading: accuracy temperature range guarantee (10-40°C)
- The MiSTAR CNC CMM system does not require compressed air
- Uses standard 120V power source
- Space saving ergonomic design
- Open access part loading area
Need a Quote?
Call or email us anytime, we strive to answer all inquiries within 24 hours on business days. We will be happy to answer any and all of your questions.
Toll Free: 866-460-1942
Email: sales@greatgages.com

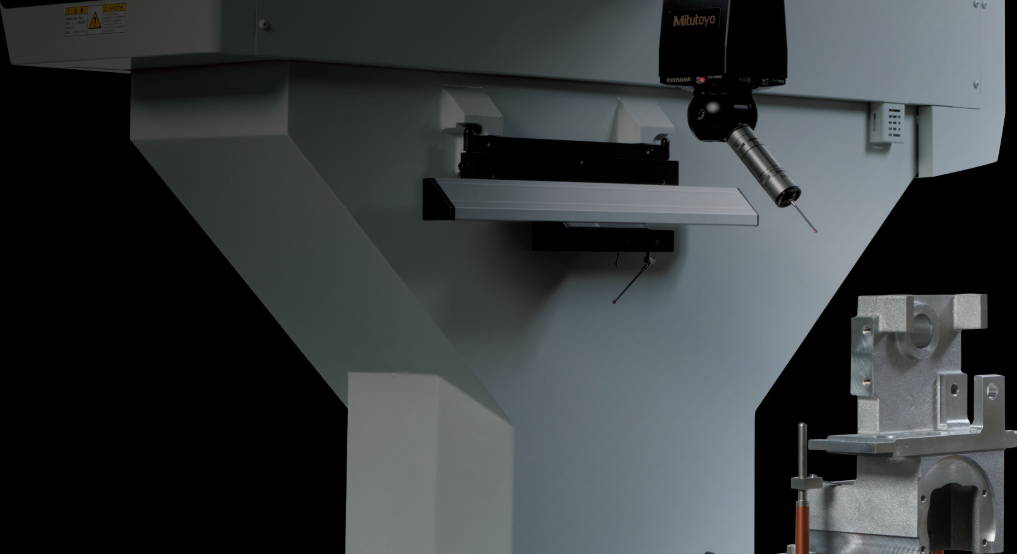

MITUTOYO MiSTAR 555
Highly Environment-resistant Coordinate Measuring Machine, Allowing near-line or in-line inspection.

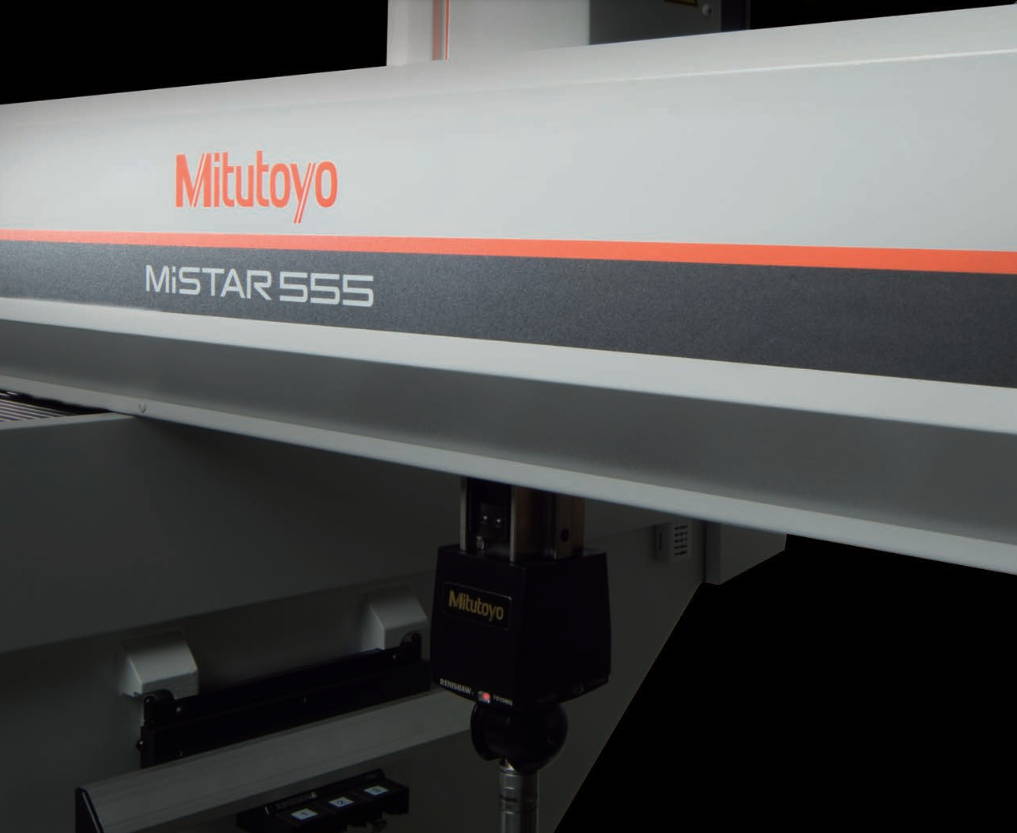

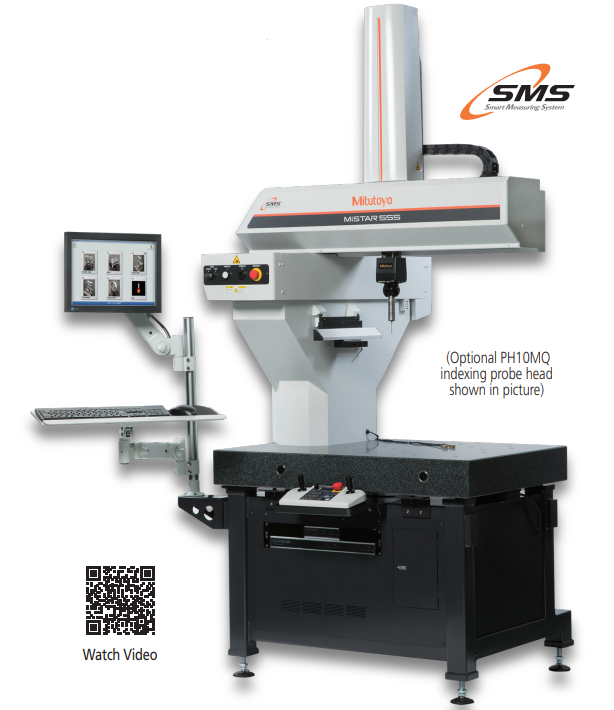

MiSTAR 555 is a CNC coordinate measuring machine conceived to be a “measuring machine for any environment”. Wide accuracy-guaranteed temperature range, environment-resistant absolute scale, and all-in-one space-saving design.
With performance that sets it apart from conventional coordinate measuring machines, MiSTAR 555 will boost your productivity.
chECK OUT OUR INFORMATIONAL VIDEO ON THE MISTAR 555 BELOW:
Precise + Effective + Absolute
ENVIRONMENT
Making measurements in harsh shop floor environments possible.
With an environment-resistant absolute scale*1 and revamped body structure, MiSTAR 555 is a contamination-resistant coordinate measuring machine. Highly reliable as a result of real-time temperature compensation technology that guarantees accuracy over a wide temperature range, it delivers a length measurement error of just E0, MPE of 2.2 + 3L/1000 μm*2
.

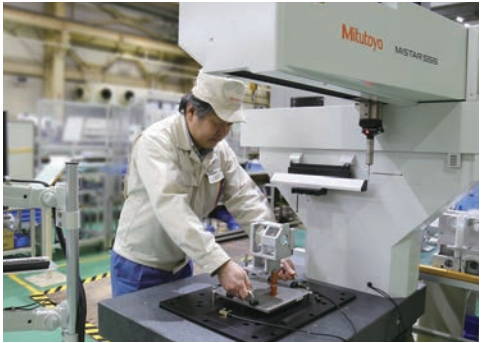

MiSTAR 555 can be installed and operated next to machine tools on production lines.
Wide accuracy-guaranteed temperature range
The accuracy-guaranteed temperature range of 10 ºC to 40 ºC is achieved as a result of body architecture designed with temperature traceability in mind.

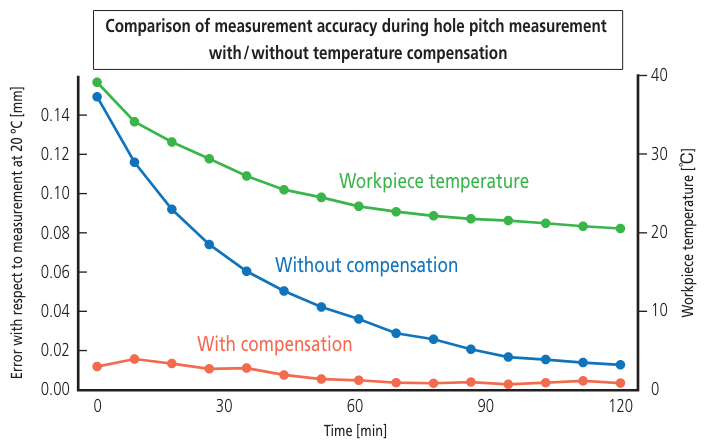

The real-time workpiece temperature compensation makes temperature stabilization unnecessary, allowing for installation in a wider range of temperatures than conventional coordinate measuring machines.
A Coordinate measuring machine resistant to contamination

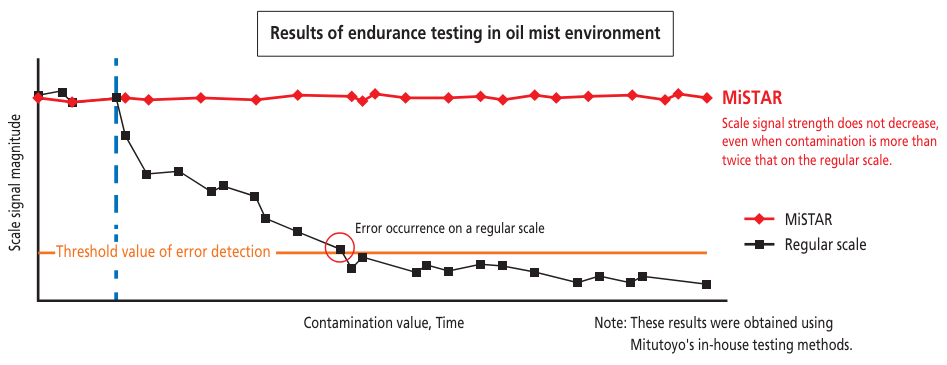

A newly developed environment-resistant absolute scale having more than twice (in-house comparison), the contamination resistance of conventional models has been adopted, together with linear guides on the moving elements.
The use of linear guides in place of air bearings eliminates the need for compressed air and eliminates contamination failure from the air source or the environment. This CMM can go without maintenance for long periods, even when used on a shop floor subject to airborne oil mist.
Energy-saving
With a wide accuracy-guaranteed temperature range and without the need for compressed air, MiSTAR 555 does not require a measuring room for its installation.

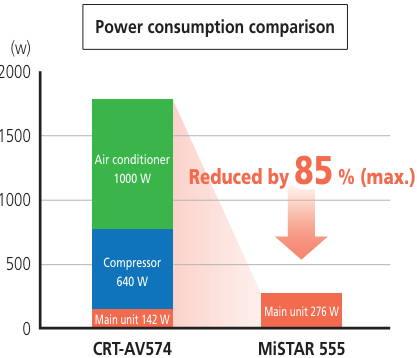

This allows for substantial reduction in running costs compared with conventional coordinate measuring machines because it does not require a temperature controlled environment and air supply facilities.
USABILITY
User-friendly design that reduces the operator’s workload.

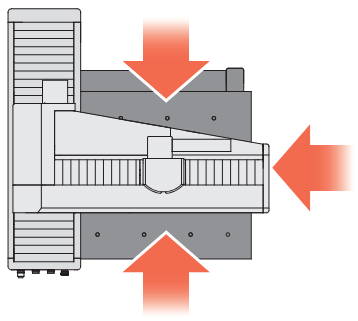

Cantilever architecture used to open the measurement area on three sides is the result of redesigning the measuring machine body design, starting from its material quality.
Compared with a bridge or gantry design, it makes moving workpieces on and off the measuring table significantly easier. The user-friendliness of MiSTAR 555, enabled by being open on three sides, can be seen especially on shop floors and the like where workspace is often limited.
Improved efficiency with three-sided open architecture
Three-sided open architecture while securing an ample measuring range of 570 (X) × 500 (Y) × 500 (Z) mm is very effective for moving workpieces on and off the measuring table.
Simple, single button operation to start measuring
MiSTAR 555 comes with the Quick Launcher, which enables simple and intuitive operation for easy part program execution.

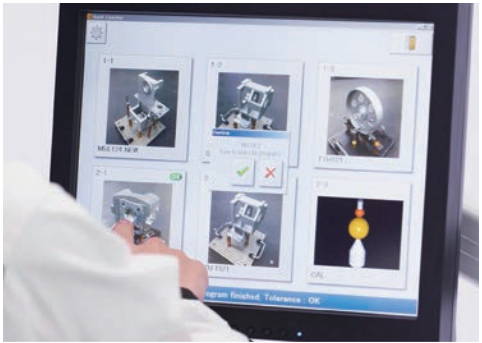

The touch panel monitor further improves operability, allowing anyone to easily execute part programs.
Positioning cannot be easier: Simply place the workpiece on the measuring table

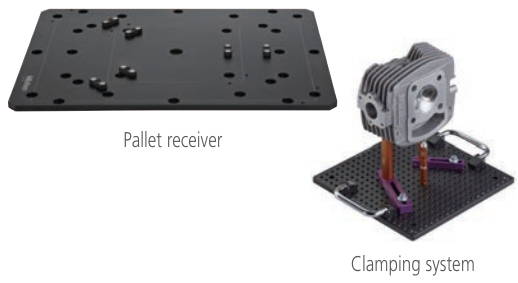

The optional clamping system and pallet receiver with
positioning mechanism allow you to start measuring
just by placing the workpiece on the measuring
table, relieving you of the trouble of positioning the
workpiece.
SOFTWARE
Application software that offers both functionality and operability.

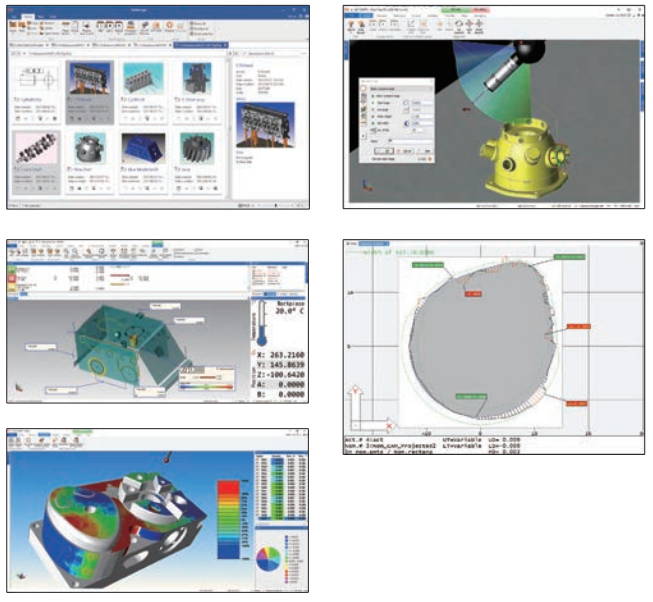

We offer an extensive lineup of application software for generating measurement programsautomatically, CAD nominal/actual comparisons, user designed report templates, gear analysis,airfoil analysis, EDM inspection, and so on. From simple to complex measurements, these softwareapplications can resolve any measurement issues that our customers may encounter.
MCOSMOS
Data Processing System for CMMs
A family of dedicated programs for coordinate measuring machines.
A basic software with rich functionality and a wide variety of optional programsallows you to measure and analyze any workpiece.
MiCAT Planner
Automatic Measurement Program Generation Software
Allows you to automatically generate measuring programs from the 3D CADmodel. Ready-to-use programs are generated in the shortest time based onthe minimum number of probe repositionings, number of probe changes, andshortest measurement path assessed by the optimization software.

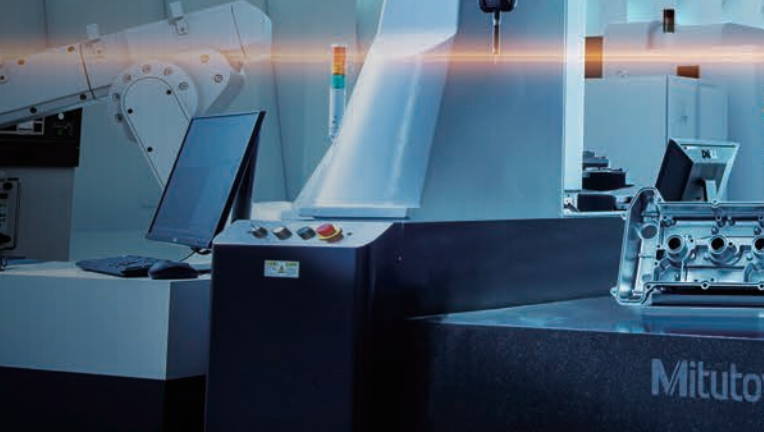

SMART FACTORY
From status management to preventive maintenance. Kickstart your smart factory through visualization.
Mitutoyo has developed the Smart Measuring System (SMS),
a new system that use a network to centrally manage
manufacturing process information and data visualization.
Data visualization includes MeasurLink ® for predicting defects
by collecting and analyzing measuring machine data in real
time; Status Monitor that tracks operational status of the
measuring machine for optimal machine scheduling and
performance; Condition Monitor, which indicates the condition
of the machine itself, to help maintain measurement accuracy,
increase productivity, and improve maintenance management.
STATUS MONITOR
Monitoring and logging of measuring machine operational status.

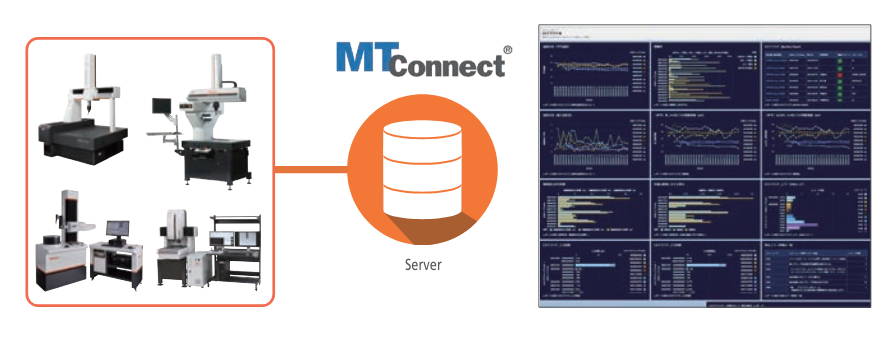

Allows you to centrally monitor the operational status of coordinate measuring machines connected to a network,along with other measuring machines on the network. “Visualizing the operational status” allows you to reduce wasteand improve the operating ratio of your production facilities.
Condition Monitor
Preventive maintenance based on measuring machine status monitoring.

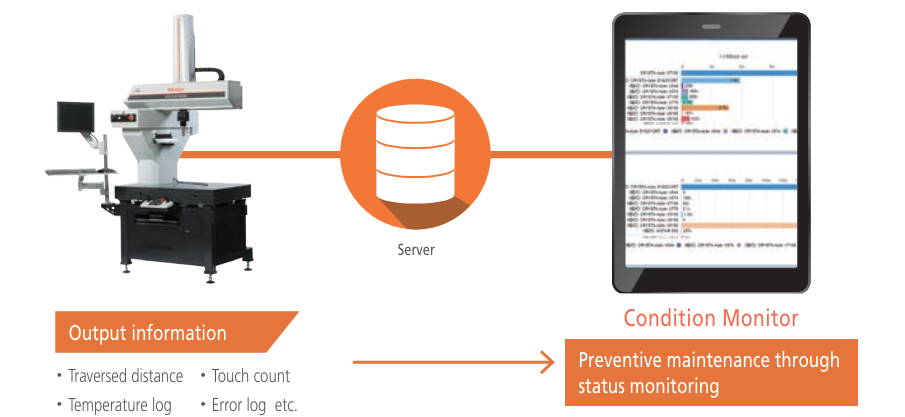

“Visualization of status” through constant collection and accumulation of coordinate measuring machine status information, such as the probe touch count and total distance traversed by each moving element along each axis, helps to prevent sudden machine stoppages that could have been avoided by timely maintenance. Status monitoring enables you to achieve a non-stop production facility.
MeasurLink ®
Reduces defective products by visualizing quality

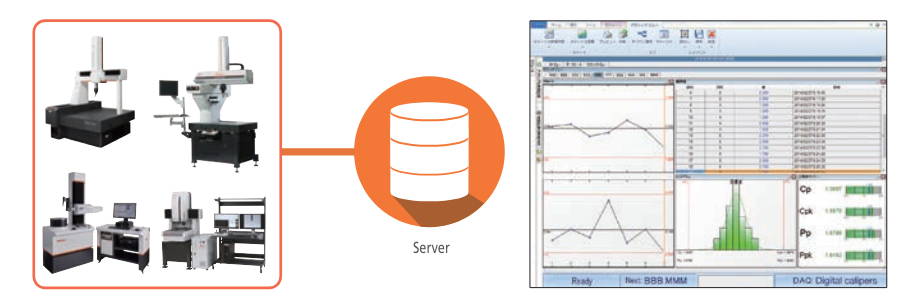

“Visualization of quality” by collecting and accumulating measurement data from networked measuring machines, and then statistically processing this data on a server in real time helps to reduce defective products.
COMPACT
Footprint-reducing all-in-one architecture broadens MiSTAR 555 options for installation sites.

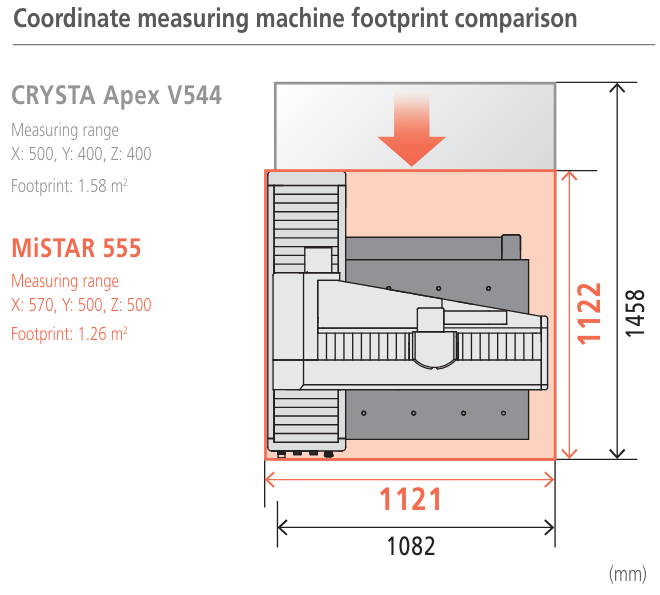

The storage cabinet for PC, machine controllers, etc., under themeasuring table reduces the footprint by about 20 % when comparedwith that of other coordinate measuring machines with similarmeasuring range.
OPTIONS
Particularly effective to evaluate rotationally symmetrical parts like gears

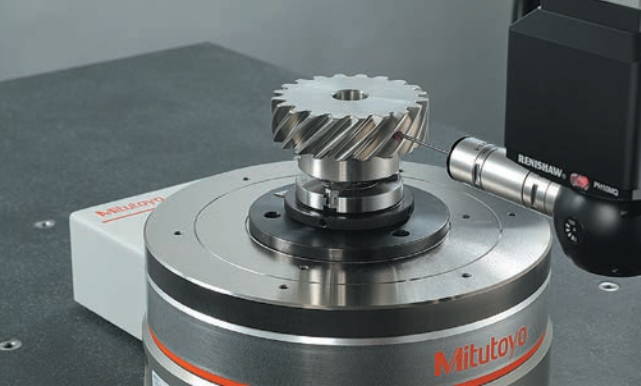

This rotary table allows highly-accurate and efficient measurements of workpieces like rotationally symmetrical parts (gears, impellers and screw rotors). When used with a scanning probe, synchronized scanning measurements can be performed, enabling 4-axis scanning measurements.
