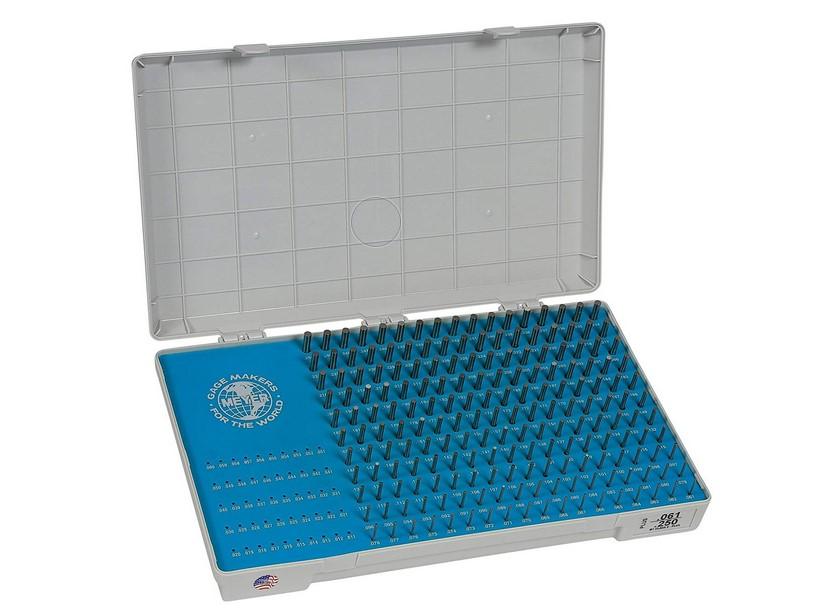

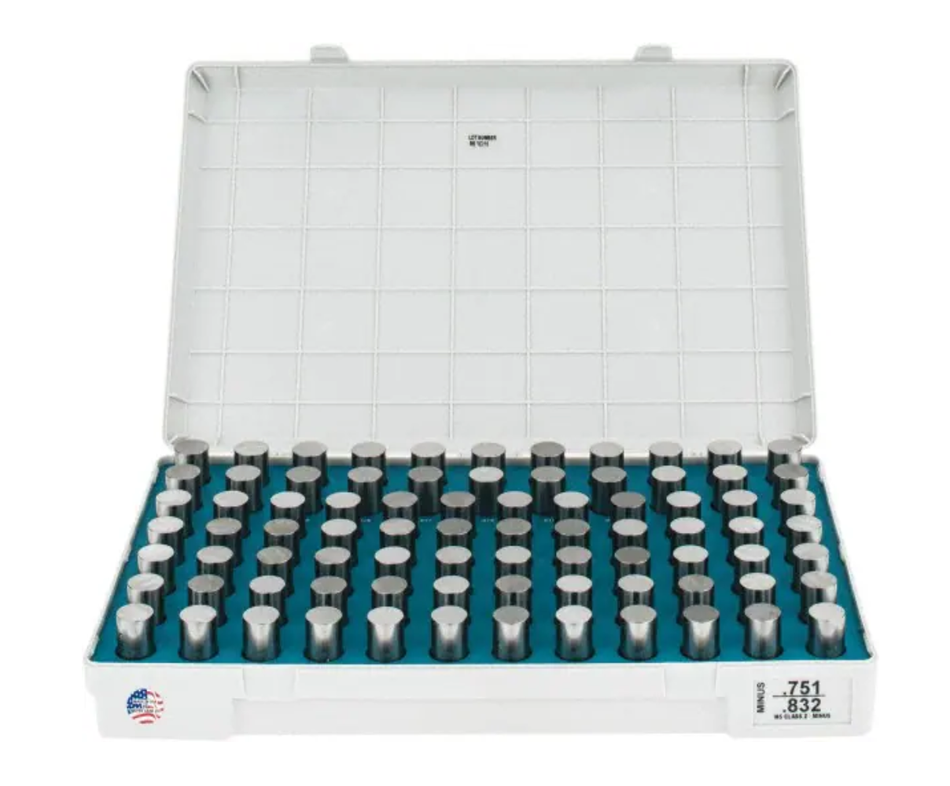

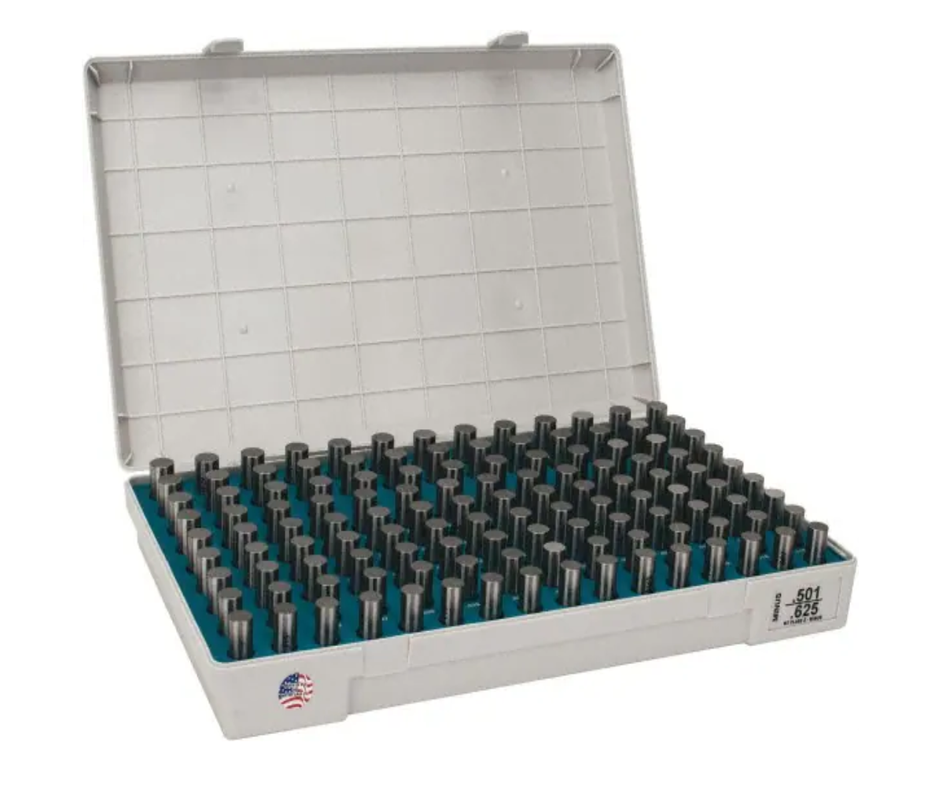

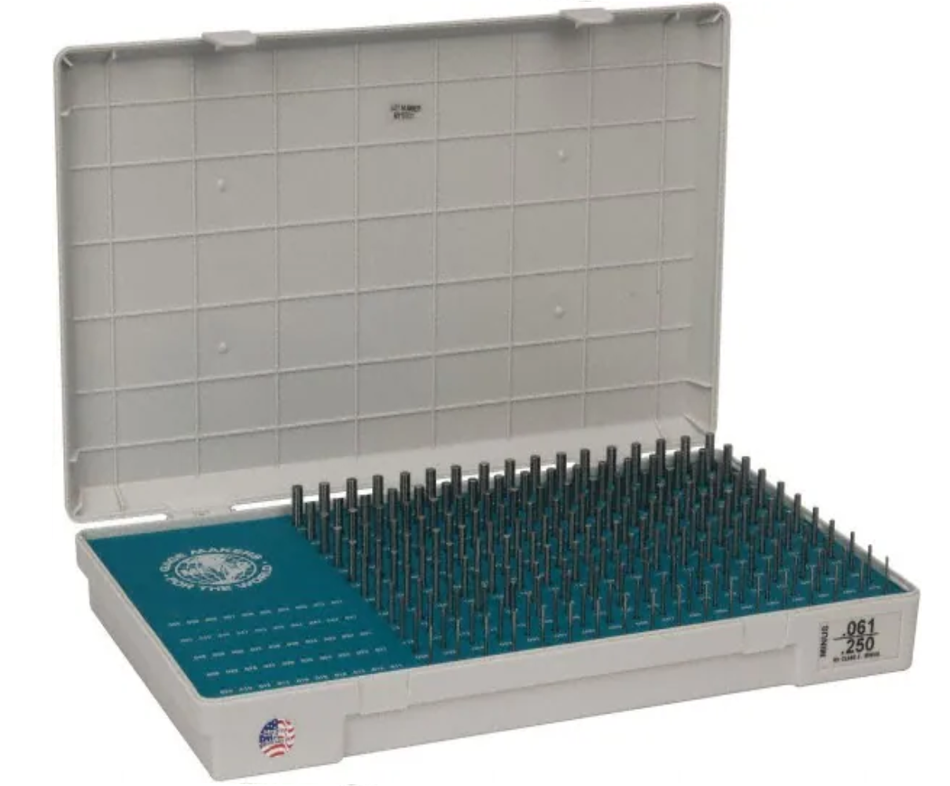

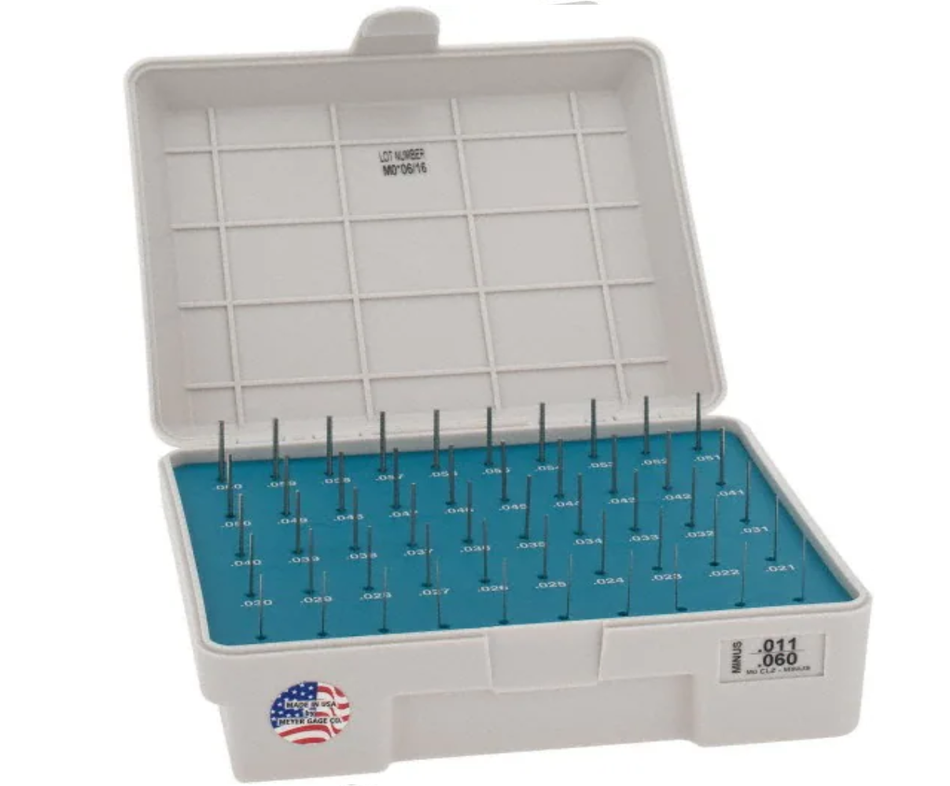

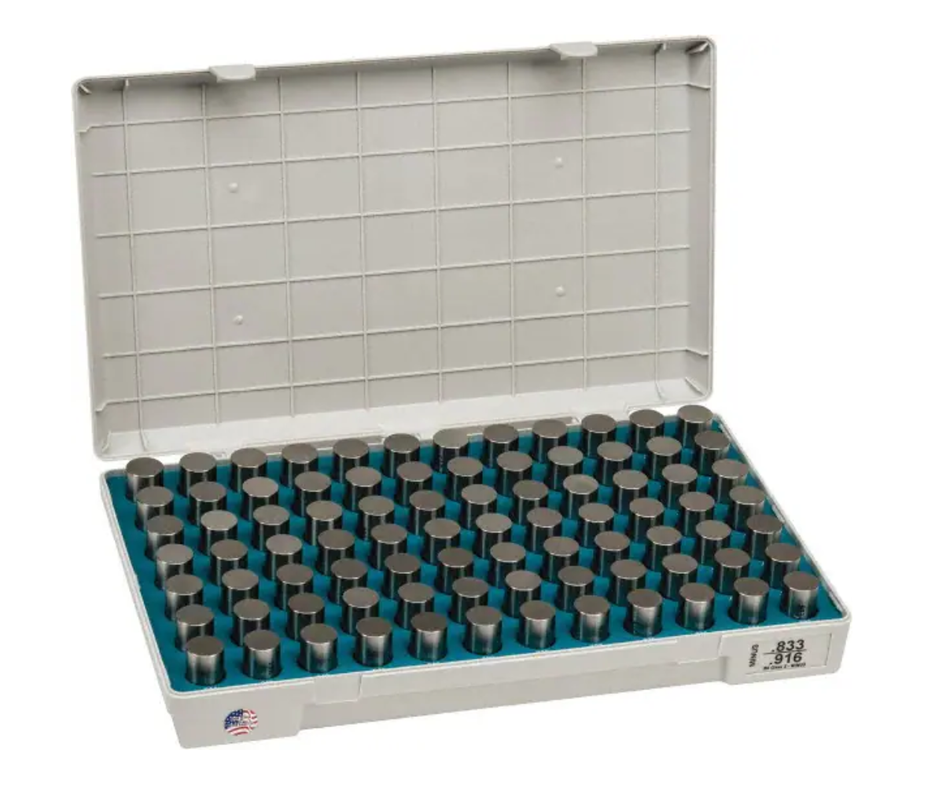

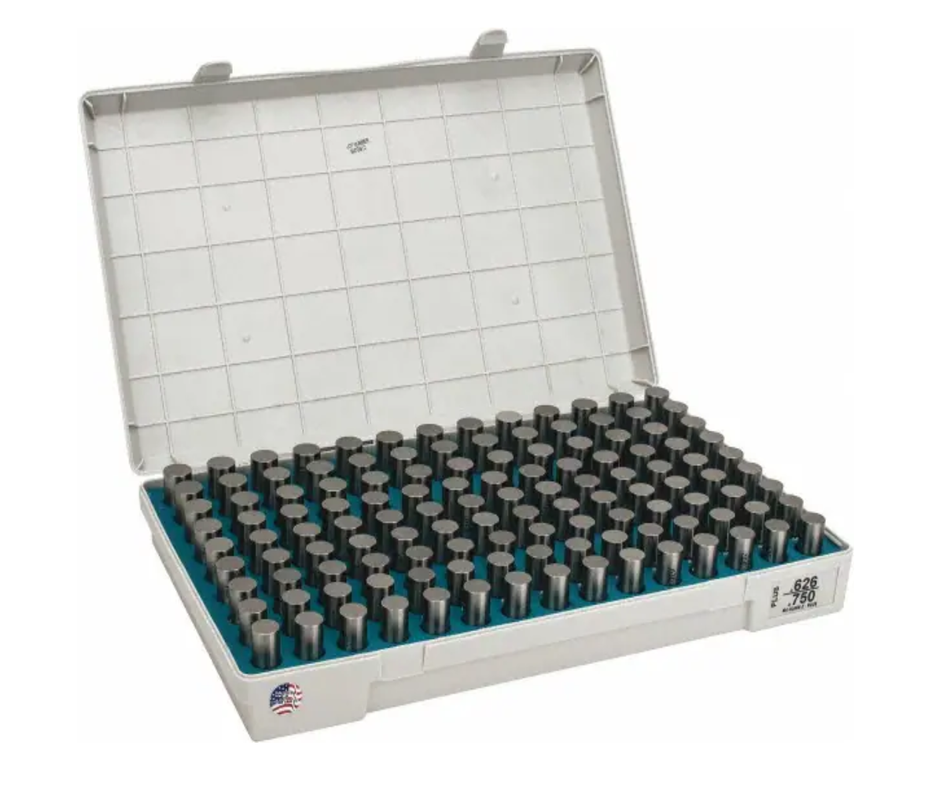

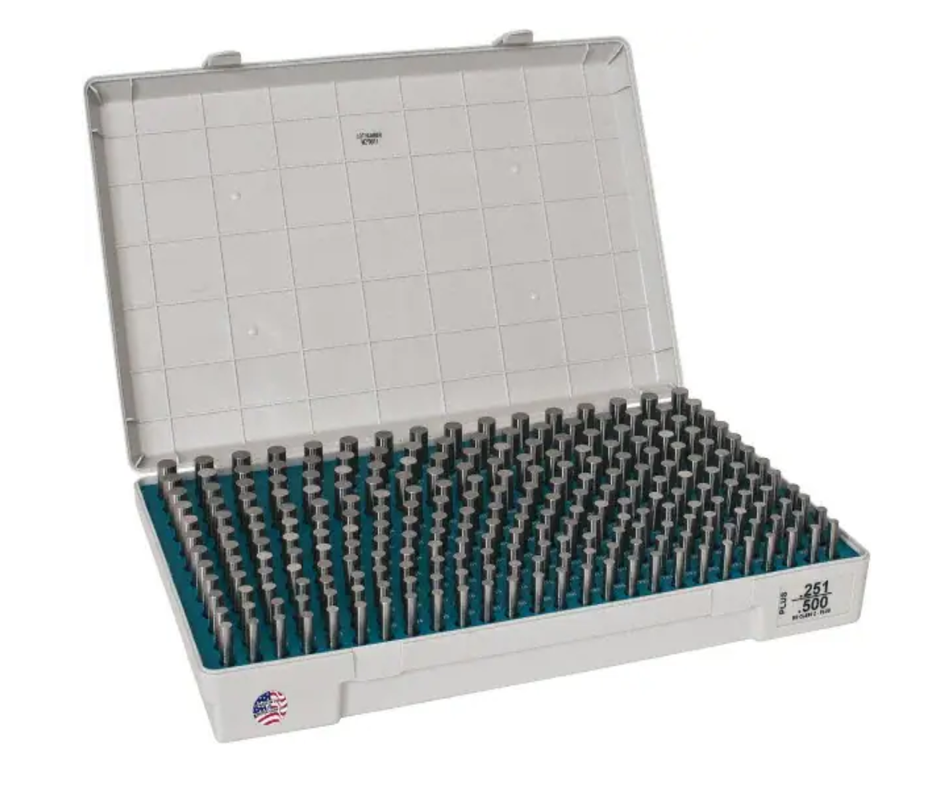

Meyer Class Z Pin Gage Set


Meyer Class Z Pin Gage Set

Introducing the MEYER Z pin gage set.

A closer tolerance (.0001), more accurate and better for your needs. Meyer has made a better pin gage that no other has attempted with the same great features listed below.

OLD Class ZZ

Size deviation .0002”
Roundness geometry .0001”
Surface finish 10 micro

NEW Class Z

Size deviation .0001”
Roundness geometry .00005”
Surface finish 8 micro

Features include...

  • All gages and sets are traceable to N.I.S.T.
  • Boxes and gages both marked
  • Size and serial number laser etched on each piece (M-O not etched)
  • Material: 52100 Bearing Steel
  • No sharp edges
  • All members 2” long

Uses include...

  • Checking locations
  • Measuring hole sizes and depth
  • GO & NO/GO gaging
  • Setting micrometers
  • Checking distances between holes

Finish includes...

  • Centerless lapped
  • Each gage is inspected and has a 8 microfinish or better
  • Heat treated to a hardness of 60-62 Rockwell C
  • All English gages with .0001″ limit
