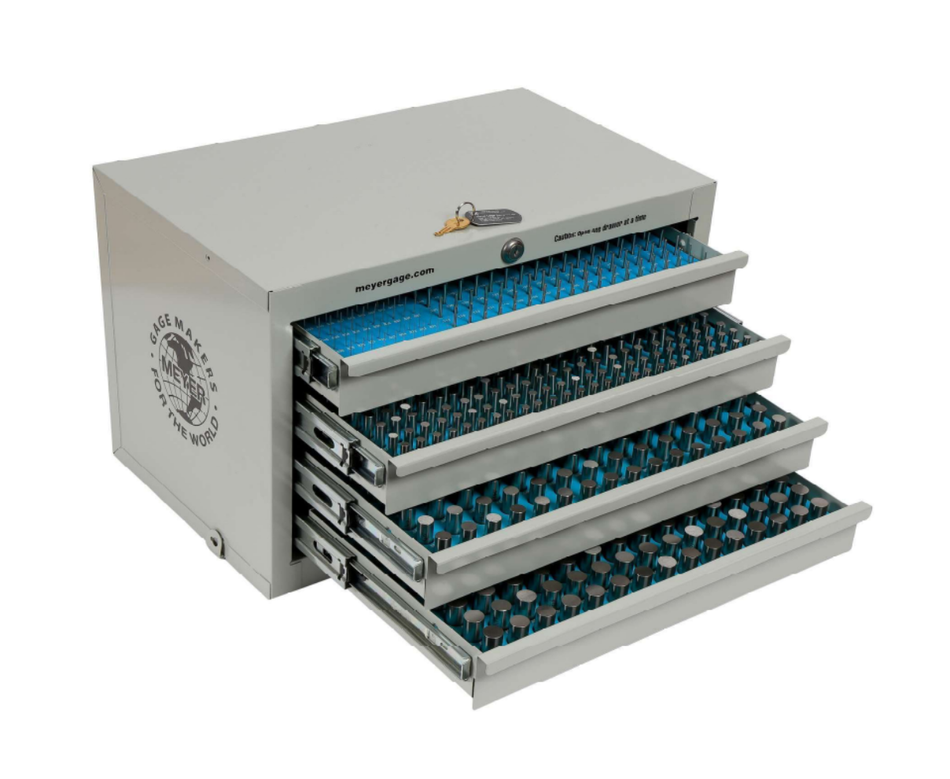

Meyer Class Z Gage Pin Libraries

Introducing the MEYER Class Z Gage Pin Library.

A closer tolerance (.0001), more accurate and better for your needs. Meyer has made a better pin gage that no other has attempted with the same great features listed below.

OLD Class ZZ

Size deviation .0002”
Roundness geometry .0001”
Surface finish 10 micro

NEW Class Z

Size deviation .0001”
Roundness geometry .00005”
Surface finish 8 micro

Features include...

All gages and sets are traceable to N.I.S.T.
Boxes and gages both marked
Size and serial number laser etched on each piece (M-O not etched)
Material: 52100 Bearing Steel
No sharp edges
All members 2” long

Uses include...

Checking locations
Measuring hole sizes and depth
GO & NO/GO gaging
Setting micrometers
Checking distances between holes

Finish includes...

Centerless lapped
Each gage is inspected and has a 8 microfinish or better
Heat treated to a hardness of 60-62 Rockwell C
All English gages with .0001″ limit

Sort by

Meyer L5 Steel Class Z Gage Pin Library .0751 - 1.000

~~Regular price $ 2,744.75~~ Save $ 274.47

Meyer L4 Steel Class Z Gage Pin Library .0110 - 1.000

~~Regular price $ 4,273.76~~ Save $ 427.38

Meyer L3 Steel Class Z Gage Pin Library .0610 - 1.000

~~Regular price $ 4,195.83~~ Save $ 419.58

Meyer L2 Steel Class Z Gage Pin Library .0610 - .5005

~~Regular price $ 1,396.54~~ Save $ 139.65

Meyer L2C Steel Class Z Gage Pin Library .0110 - .5005

~~Regular price $ 1,552.40~~ Save $ 155.24

Meyer L1 Steel Class Z Gage Pin Library .0610 - .7500

~~Regular price $ 1,645.92~~ Save $ 164.59

Meyer LC Steel Class Z Gage Pin Library .0110 - .7500

~~Regular price $ 1,723.86~~ Save $ 172.39

Meyer LS Steel Class Z Gage Pin Library .0110 - .6250

~~Regular price $ 1,190.17~~ Save $ 119.02
