STANDARD SPHERICAL FACE MICROMETERS

PRECISION Thickness MEASURING

Mechanical Spherical Face Micrometers are precision measuring tools used to measure the thickness and diameter of spherical or curved surfaces with high accuracy. They are commonly used in the manufacturing, engineering, and scientific industries to ensure precise measurements of spherical or curved components.

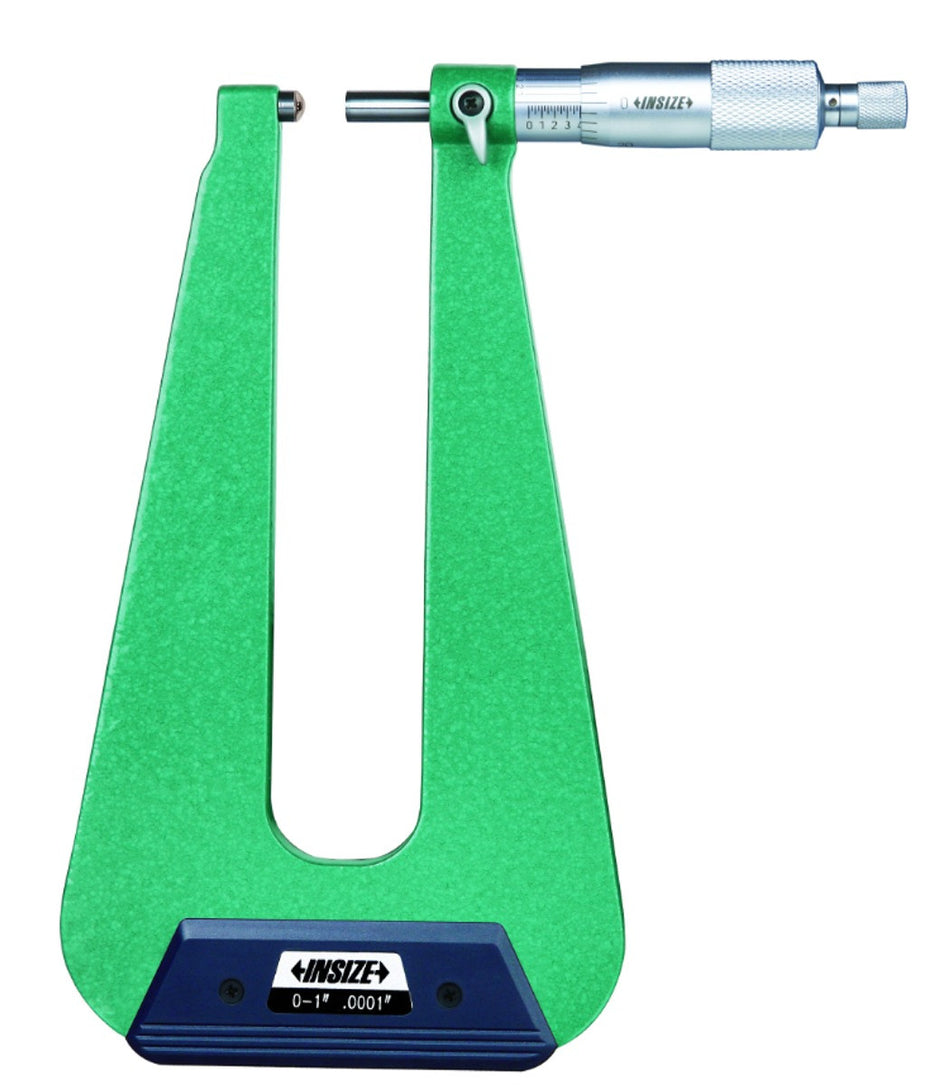

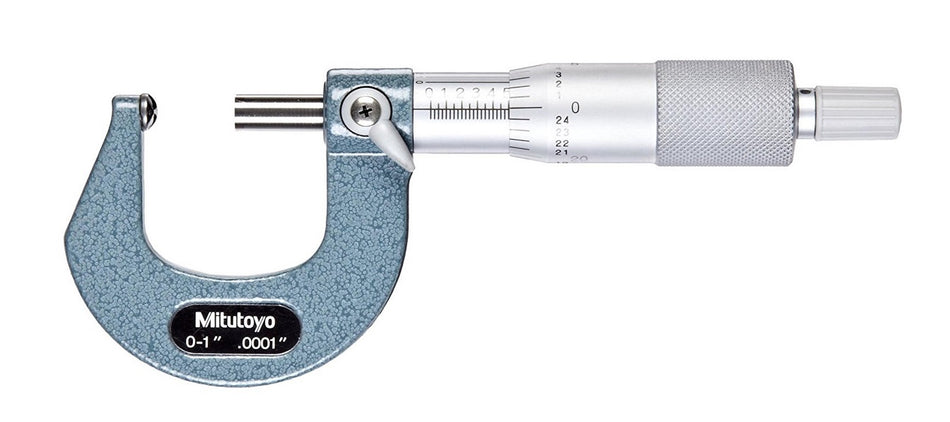

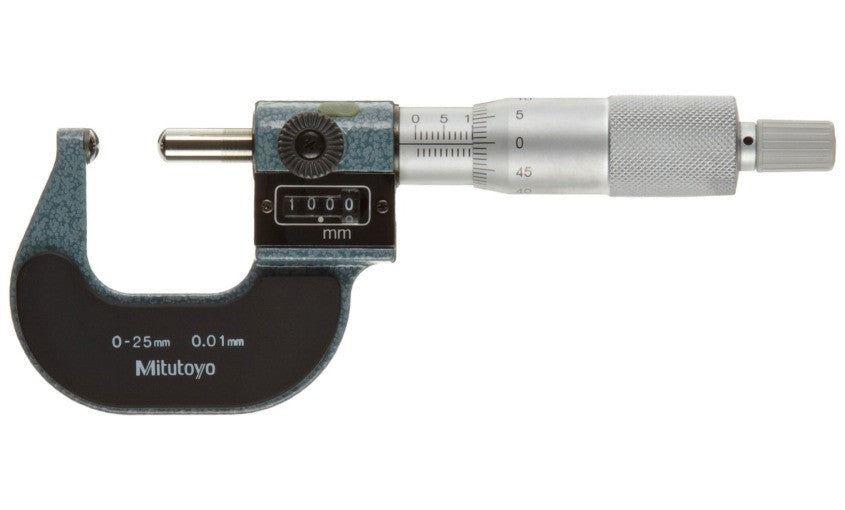

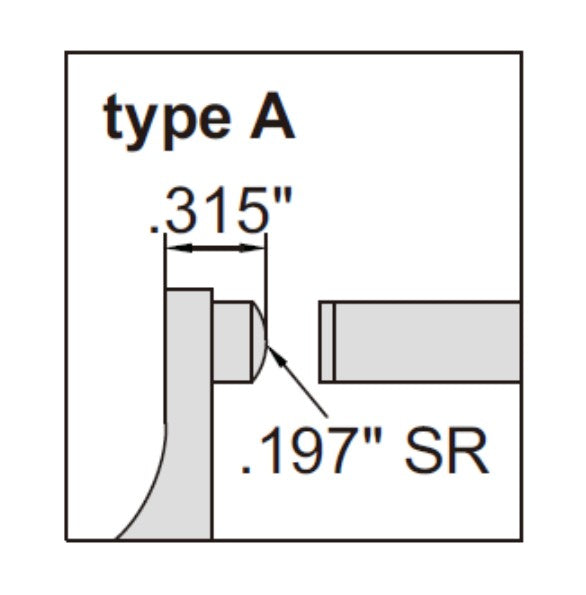

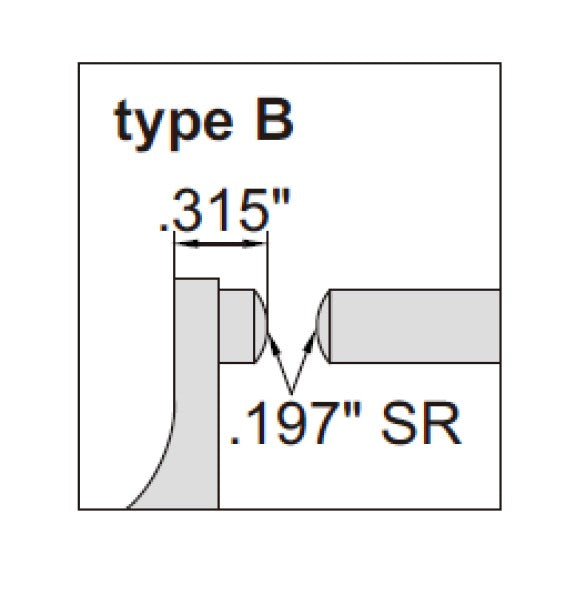

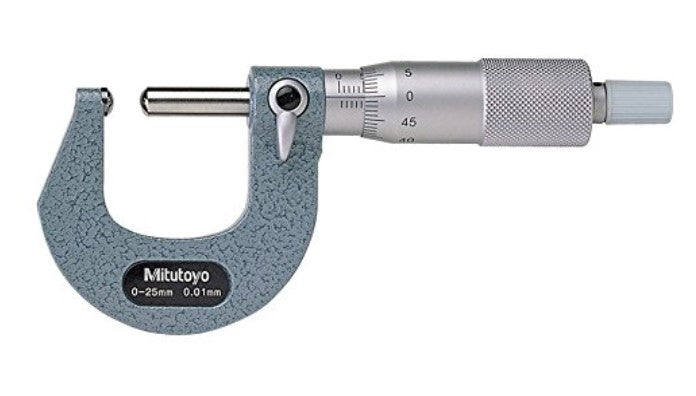

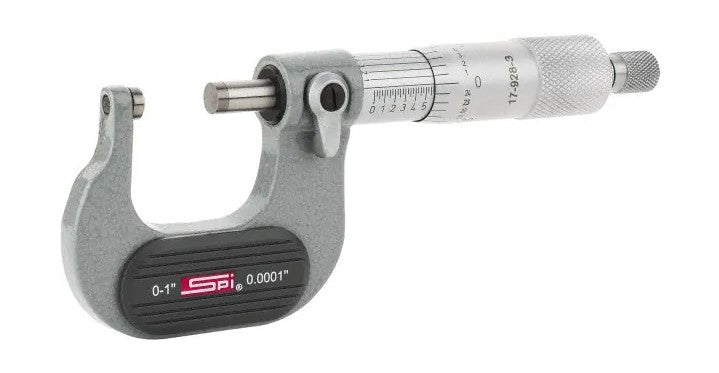

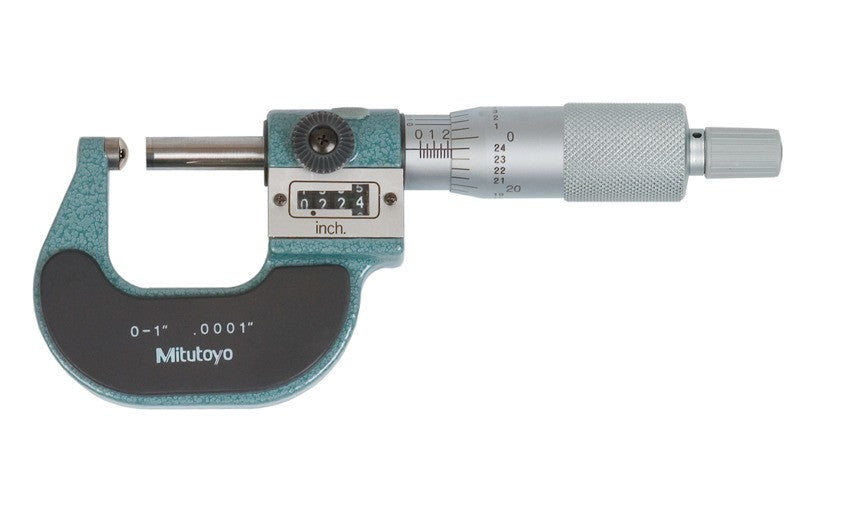

A Mechanical Spherical Face Micrometer consists of a frame, a spindle, a thimble, and a measuring contact with a spherical face. The spindle is movable and threaded and is used to measure the thickness or diameter of the spherical or curved component. The measuring contact with a spherical face is used to make contact with the curved surface of the component being measured.

Standard Spherical Face Micrometers at GreatGages.com

The spindle is rotated using the thimble, which moves the spindle towards or away from the measuring contact, allowing the user to measure the thickness or diameter of the component. The measuring scale is located on the thimble and is used to read the measurement result. The scale typically has markings indicating the thickness or diameter being measured in micrometers or thousandths of an inch.

Mechanical Spherical Face Micrometers are available in various types and sizes, including outside micrometers, inside micrometers, and depth micrometers. They can be used to measure a wide range of spherical or curved components, such as bearings, balls, and lenses, making them a versatile tool for quality control and precision machining.

Overall, Mechanical Spherical Face Micrometers are highly precise and accurate measuring tools that are essential in many industries. They provide accurate measurements of the thickness or diameter of spherical or curved components, making them a valuable tool for quality control and precision machining. The spherical measuring contact ensures accurate measurements on curved surfaces, making them suitable for measuring a wide range of components.



sHOP our STANDARD SPHERICAL FACE MICROMETERS collection...

11 products
