Mitutoyo IDC Digital Indicators

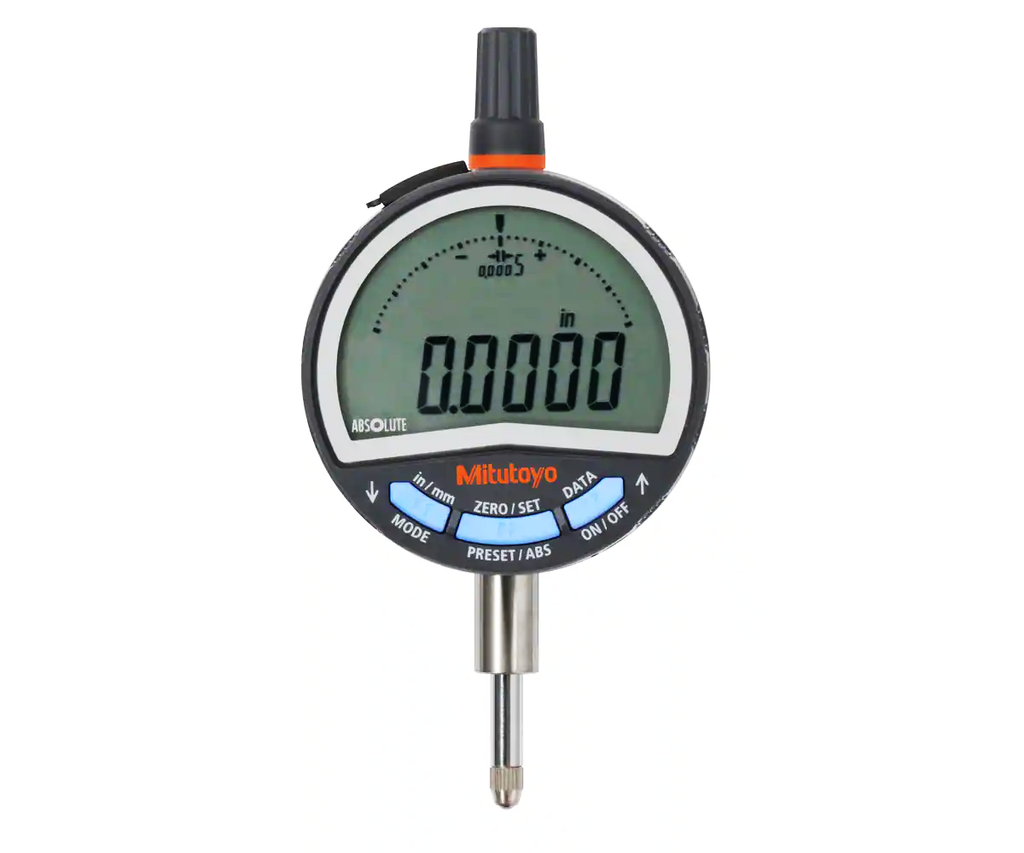

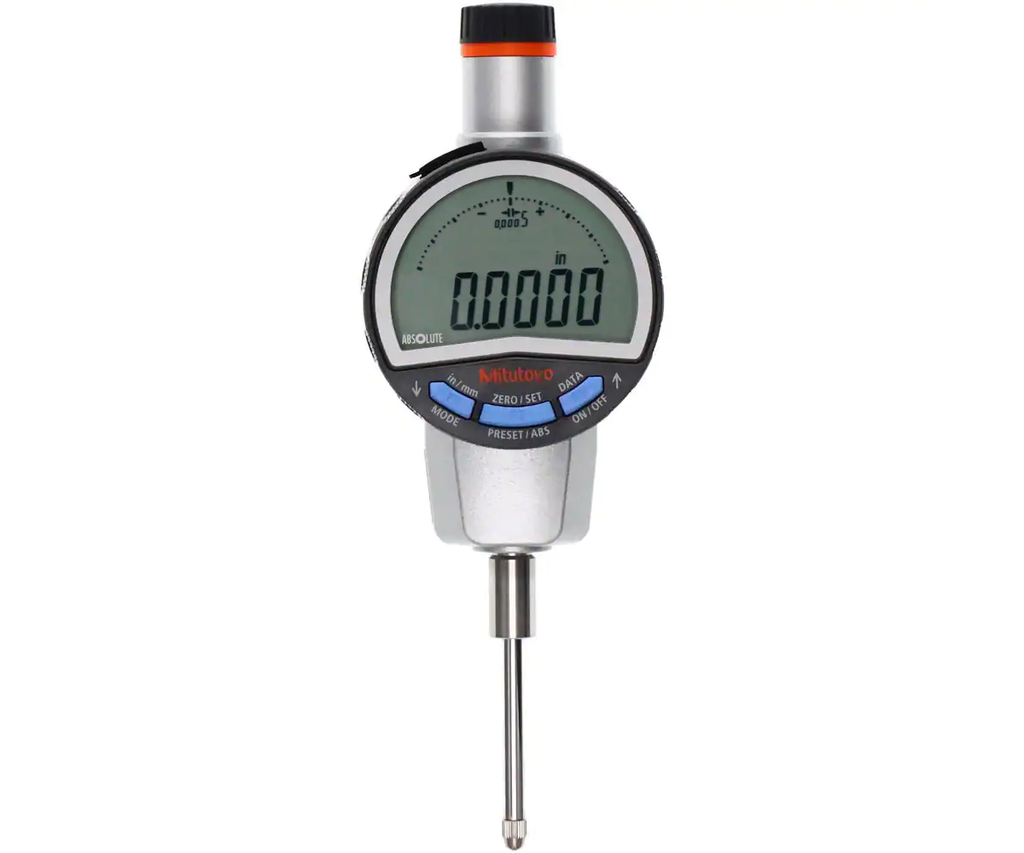

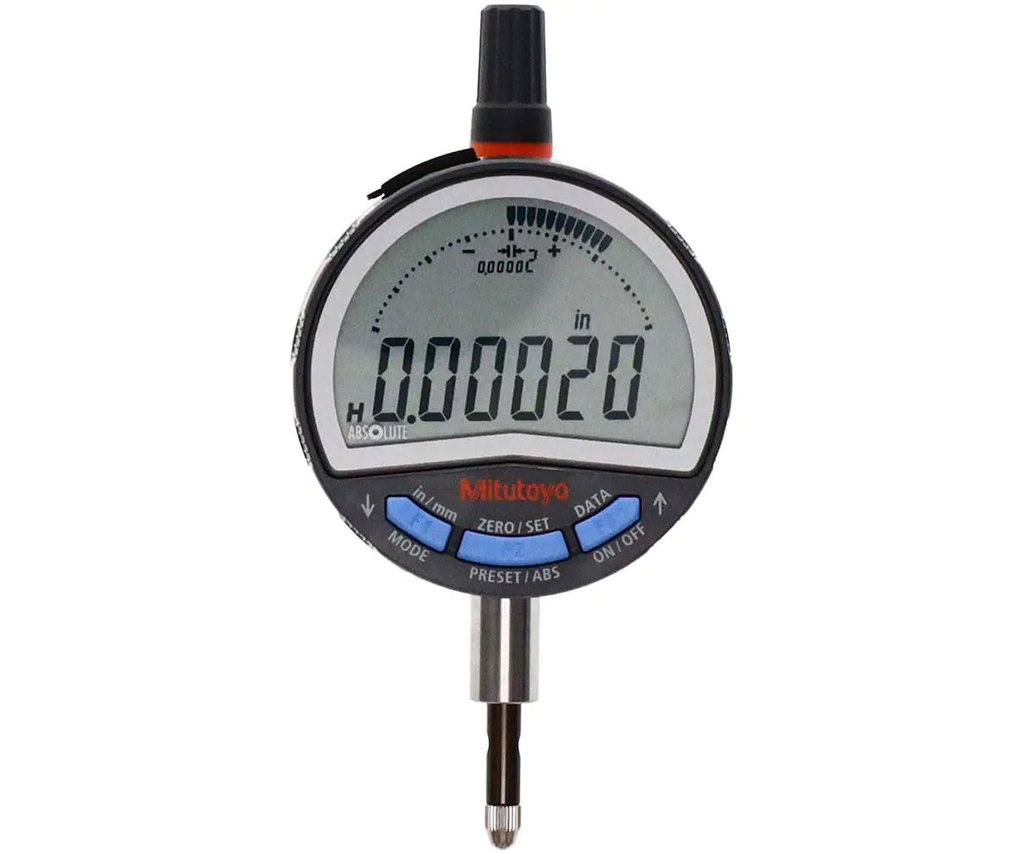

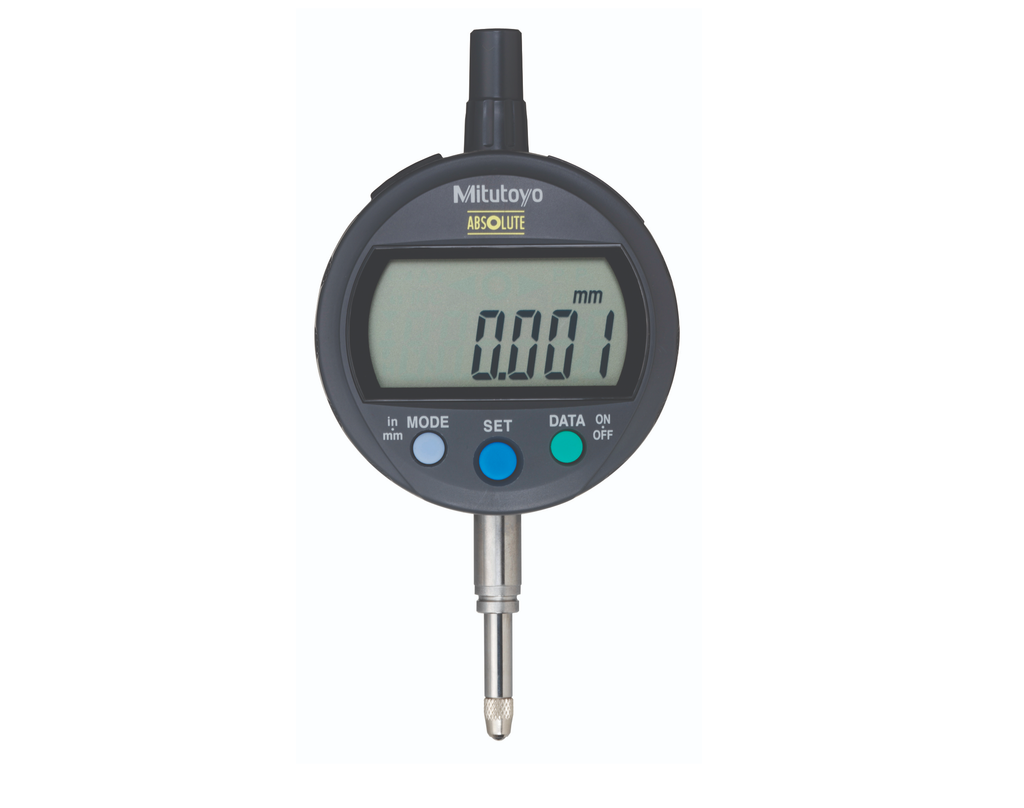

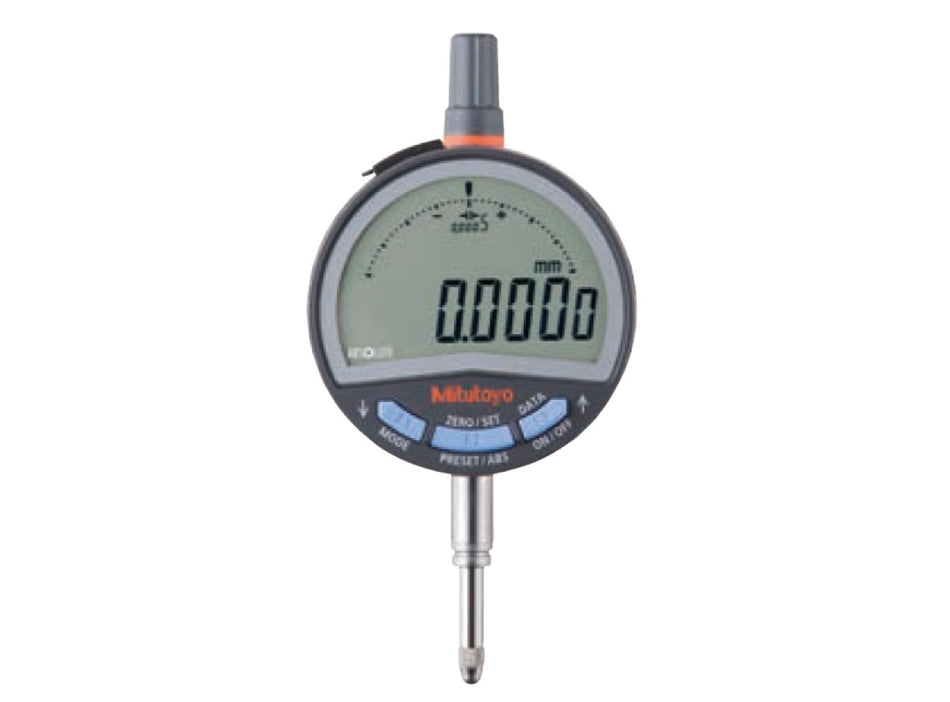

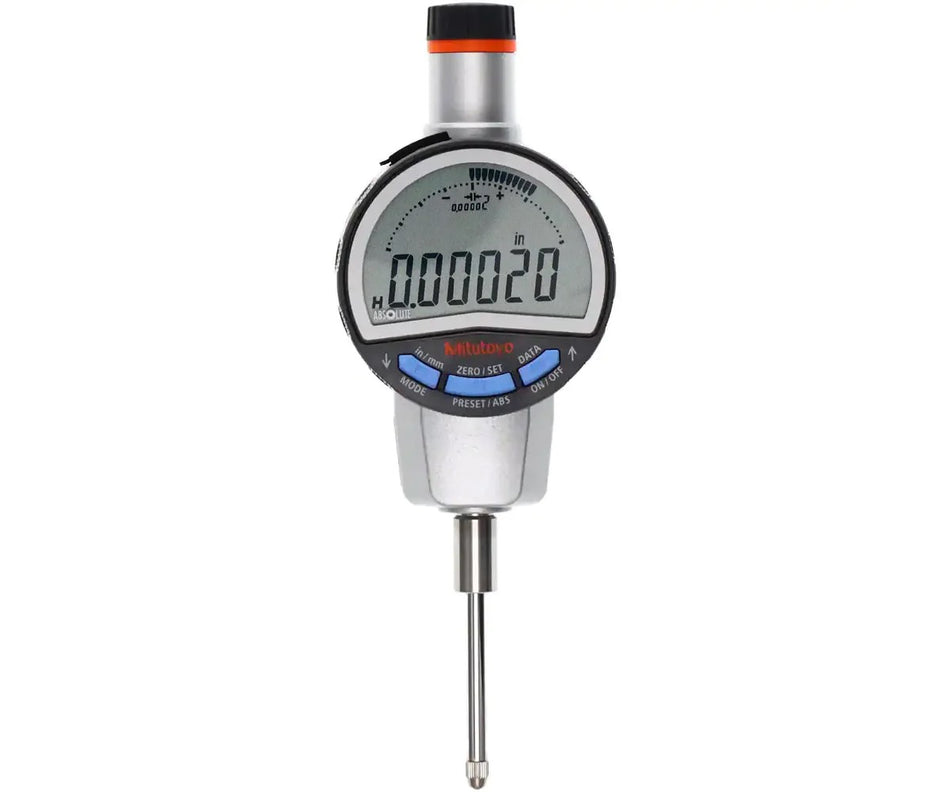

Mitutoyo IDC Digital Indicator

Mitutoyo's new, standard digital indicator is extremely versatile with lots of functionality and a face that rotates 330°.

Features include...

  • As compact as standard Series 2 dial indicators.
  • Large, easy-to-read LCD.
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits.
  • The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled.
  • Internal calculations using the simple formula of [F(x) = Ax)] are available.
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on.
  • Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.

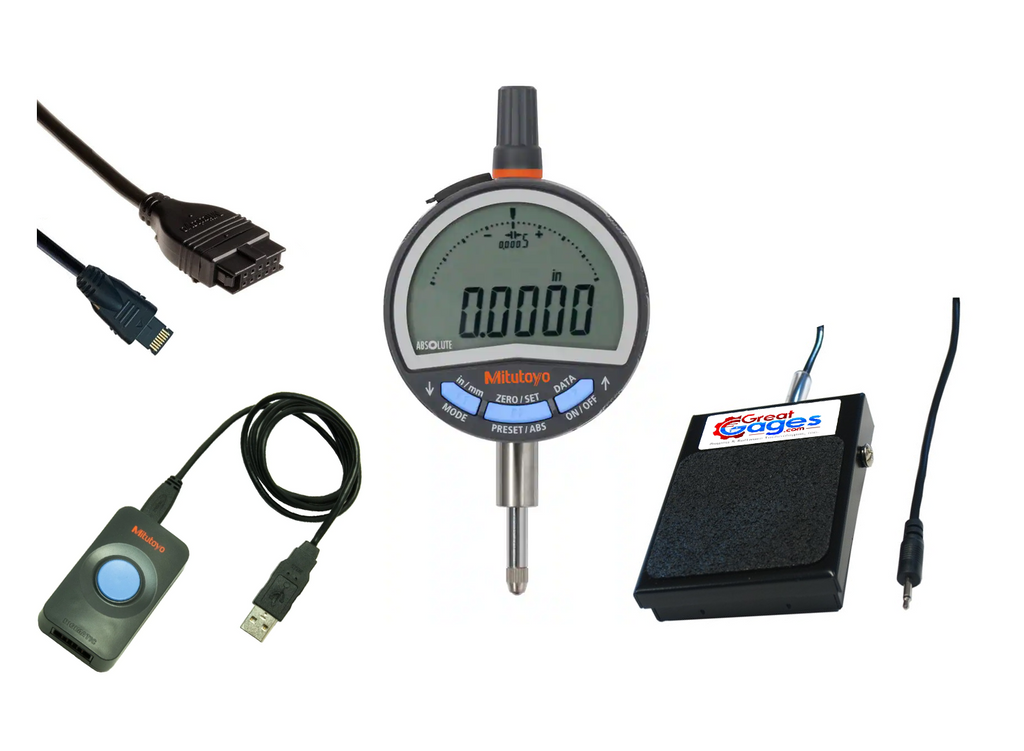

  • With SPC data output.

Resolution

Range

w/ Lug Back

Flat Back

Accuracy

Remarks

.00005" / .001mm .5" / 12.7mm 543-391 543-391B .0001" 8mm Stem, M2 Thread
.00005" / .001mm .5" / 12.7mm 543-392 543-392B .0001"
.00005" / .001mm .5" / 12.7mm 543-396 543-396B .0001" Low Measuring Force
.0005" / .01mm .5" / 12.7mm 543-402 543-402B .001"
.0005" / .01mm .5" / 12.7mm 543-406 543-406B .001" Low Measuring Force
.00005" / .001mm 1" / 25.4mm   543-472B .0001"
.0005" / .01mm 1" / 25.4mm   543-476B .001"
.00005" / .001mm 2" / 50.8mm   543-492B .0002"
.0005" / .01mm 2" / 50.8mm   543-496B .0016"
