Toolmakers Microscopes


Toolmakers Microscopes Online

Mitutoyo's Toolmakers Microscopes are compact microscopes for inspection and measurement of machined workpieces.

Included Features

  • The eyepiece section of the optical tube incorporates a vernier protractor.
  • Angle measurements are easily performed by turning the protractor to align the cross-hair reticle and the workpiece image.
  • Complete selection of interchangeable reticles.
  • Both transmitted and reflected illumination intensity can be adjusted to obtain optimal illumination.
  • A 2" x 2" (50mm x 50mm) XY travel stage is available.
  • A 4" x 2" (100mm x 50mm) XY travel stage is available.
  • A 15X eyepiece is standard accessory. 10X & 20X eyepieces are also available.
  • A 2X objective is standard accessory. 5X & 10X objectives are also available.
  • The Toolmaker's Microscope can be purchased with no micrometer heads, standard micrometer heads, or digital micrometer heads with the ability to send SPC data.

We also have a variety of accessories available for the Toolmakers Microscopes like USB Cameras & Fiber Optic Illuminators.

Click here for Toolmakers Microscope Accessories.

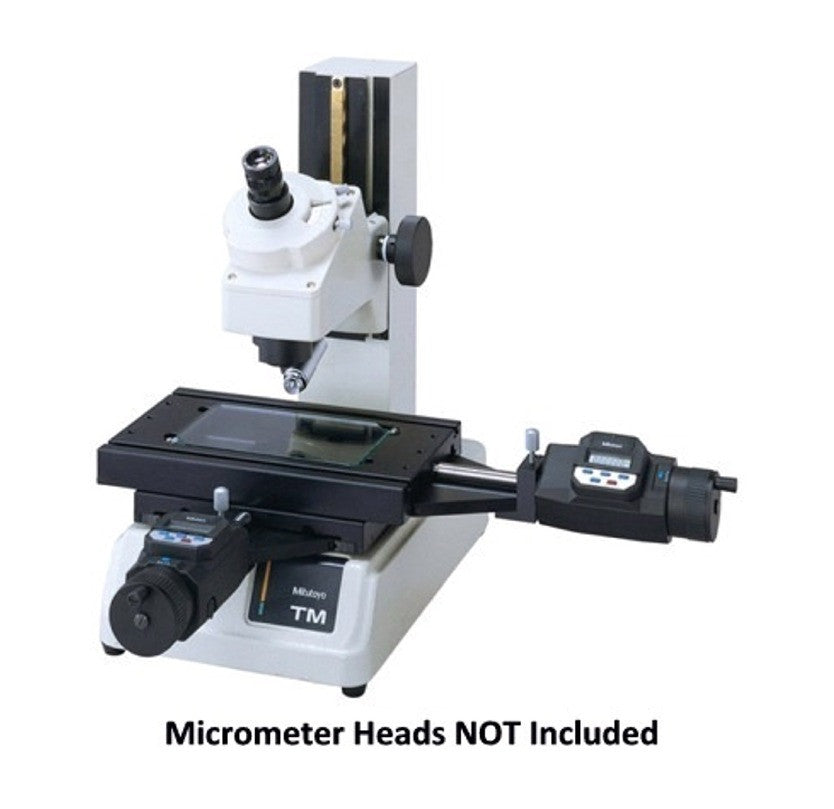

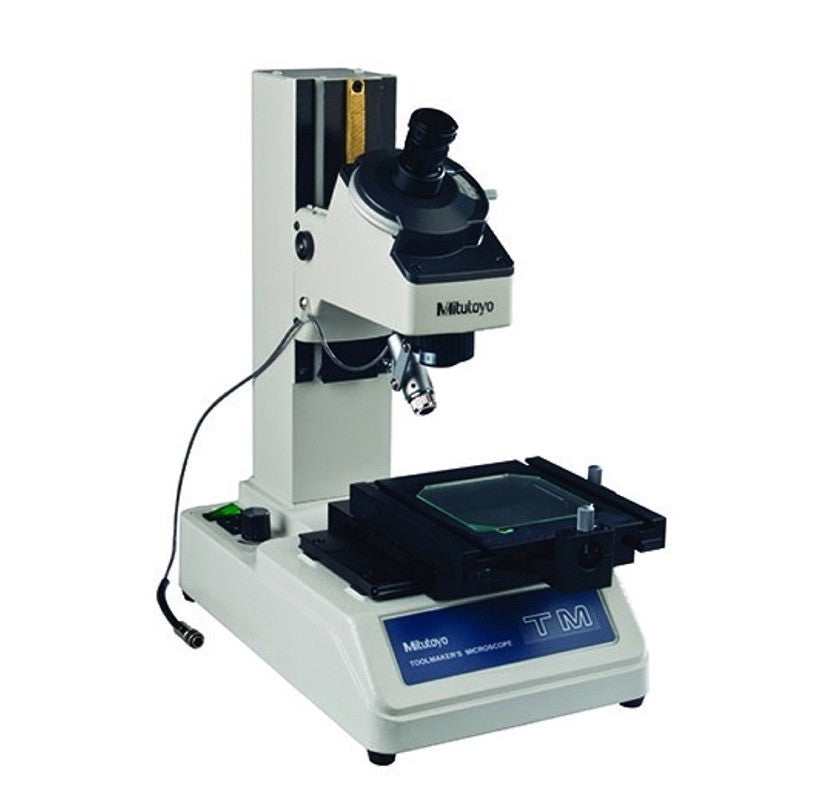

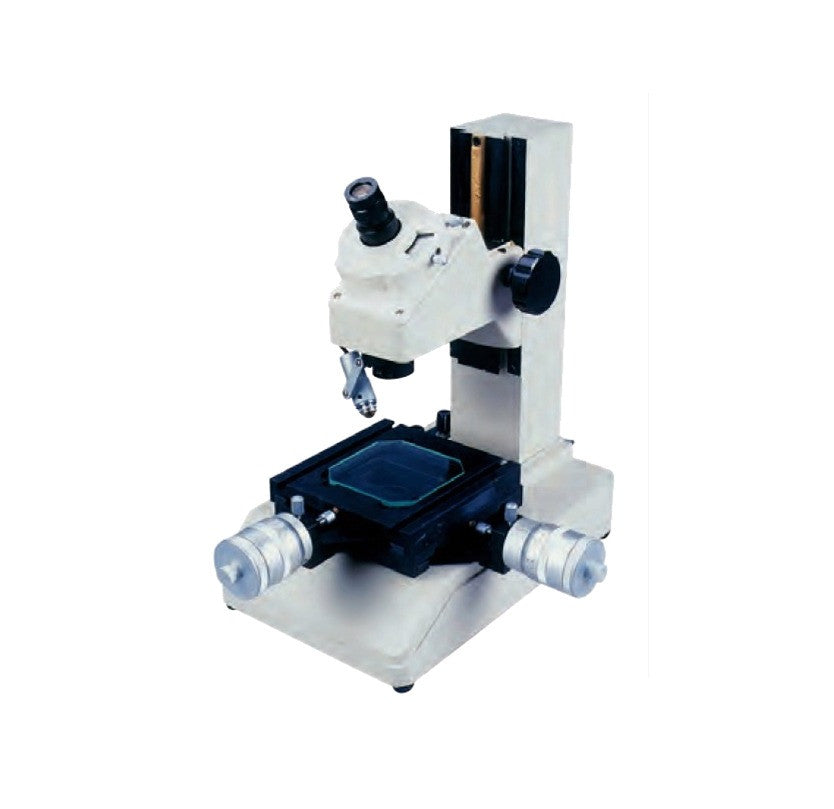

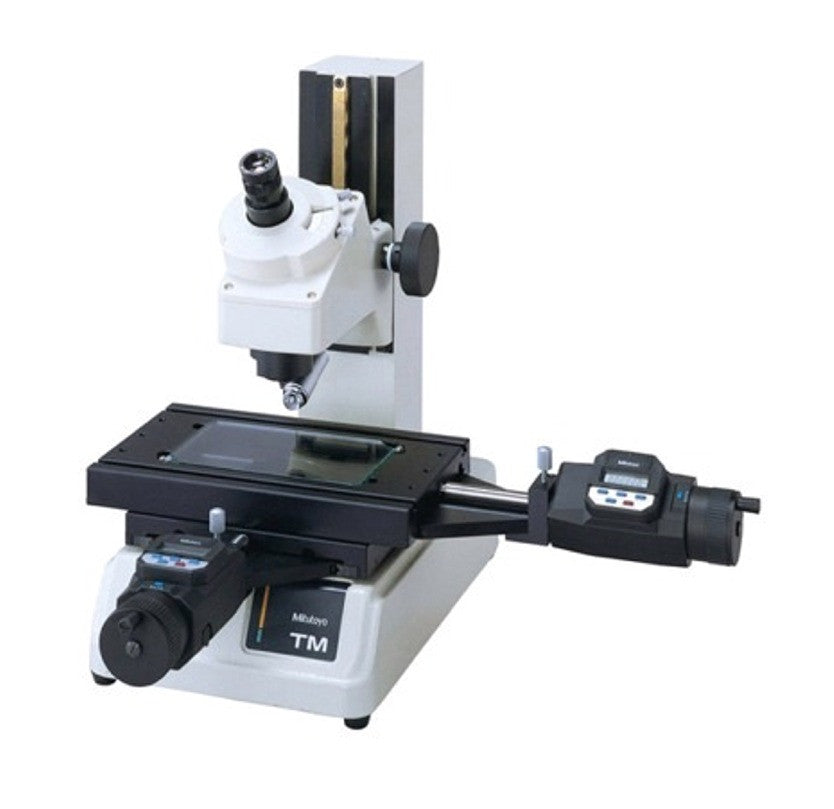

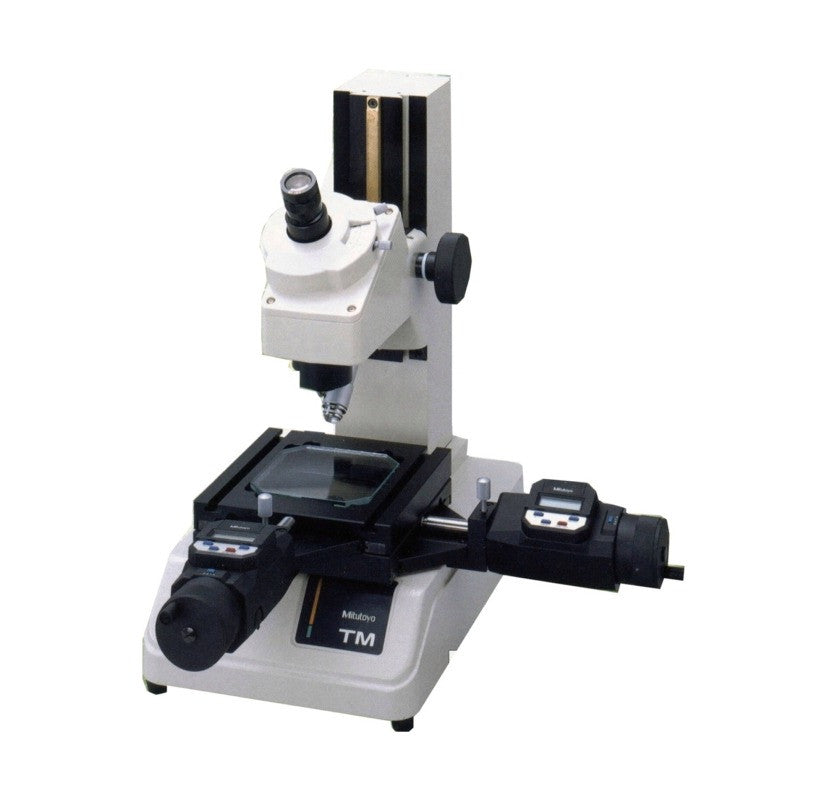

Below is our selection of Mitutoyo & SPI Toolmakers Microscopes
