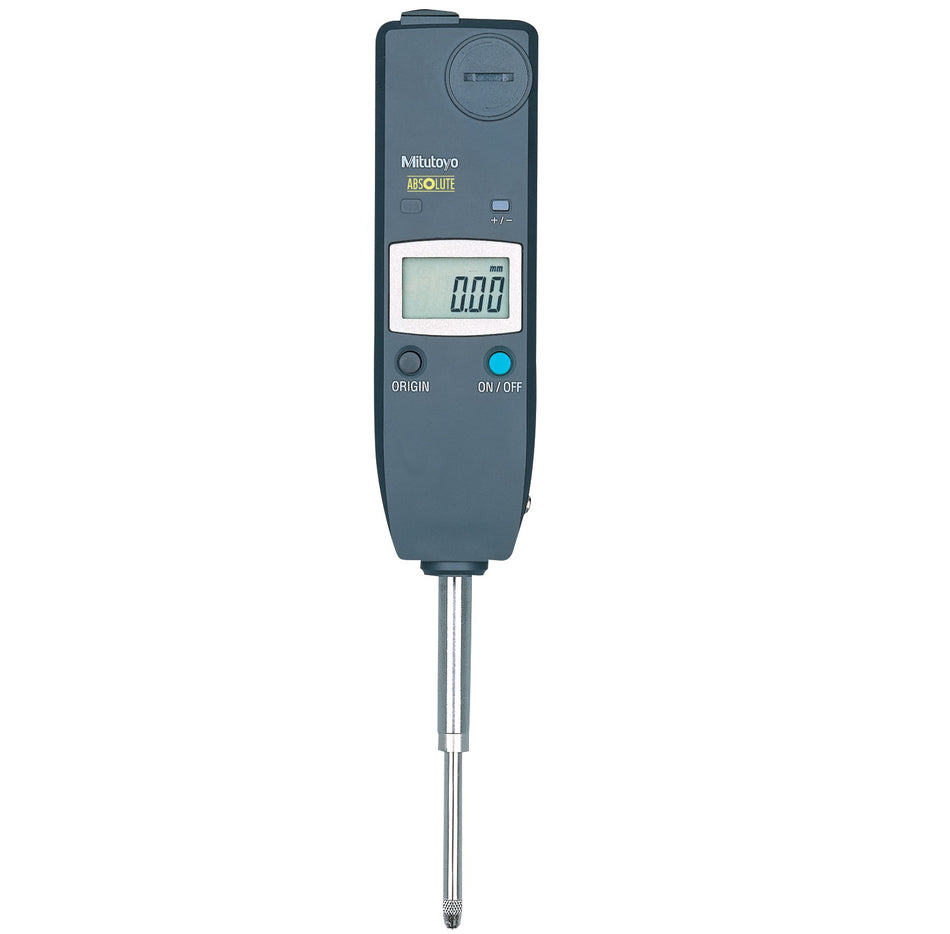

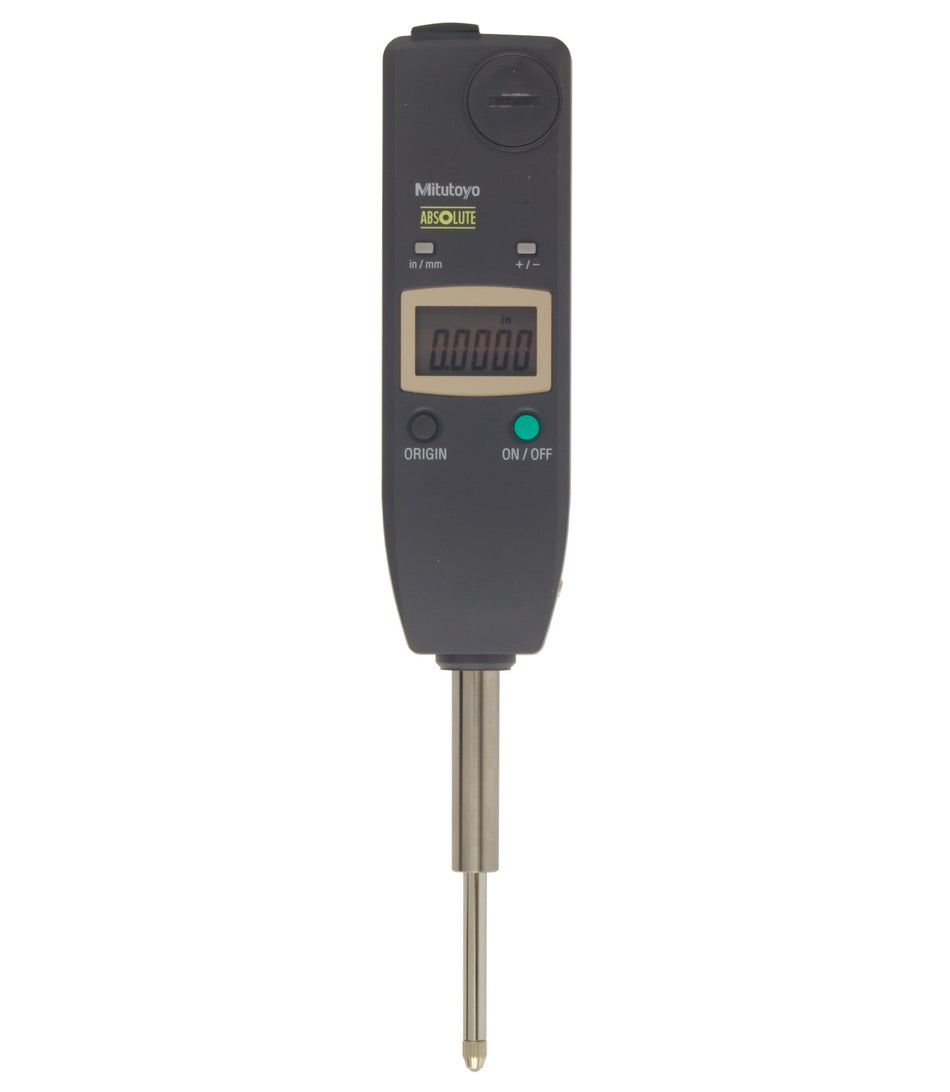

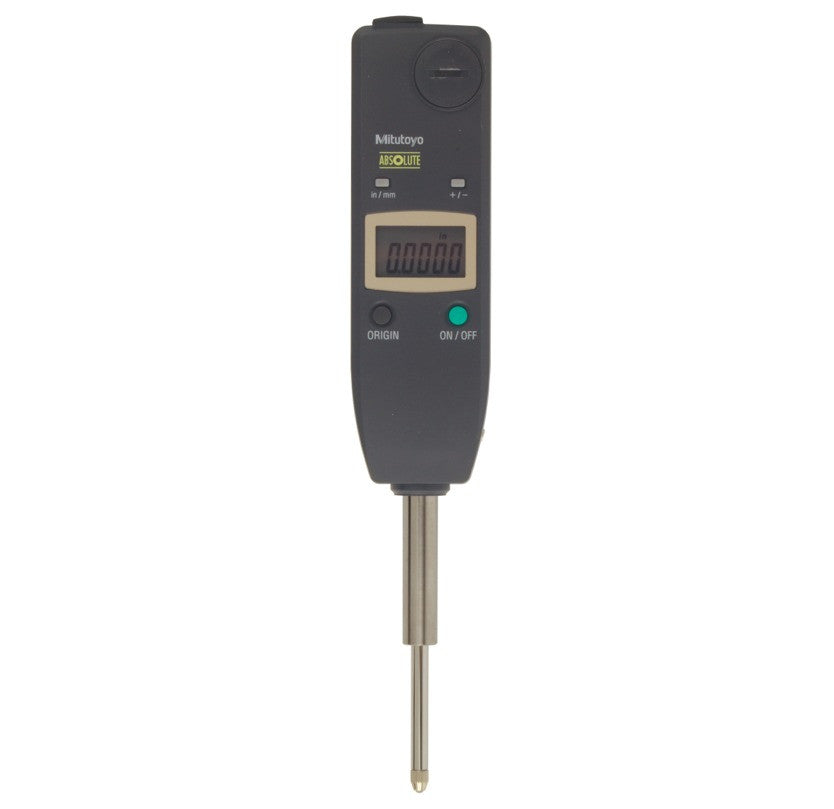

MITUTOYO IDU DIGITAL INDICATORS

PRECISION TOLERANCE MEASURING

Mitutoyo's slim and simple digital indicator is Mitutoyo's best priced 0-1" digital indicator.

Features include...
  • Slim type digital indicator with low price.
  • Large LCD and simple key operation.
  • After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off.
  • Ideal for installation into measuring devices because of it’s compact design and long battery life.

Mitutoyo IDU Digital Indicators at GreatGages.com

  • Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • Flat back type only no option for backs.

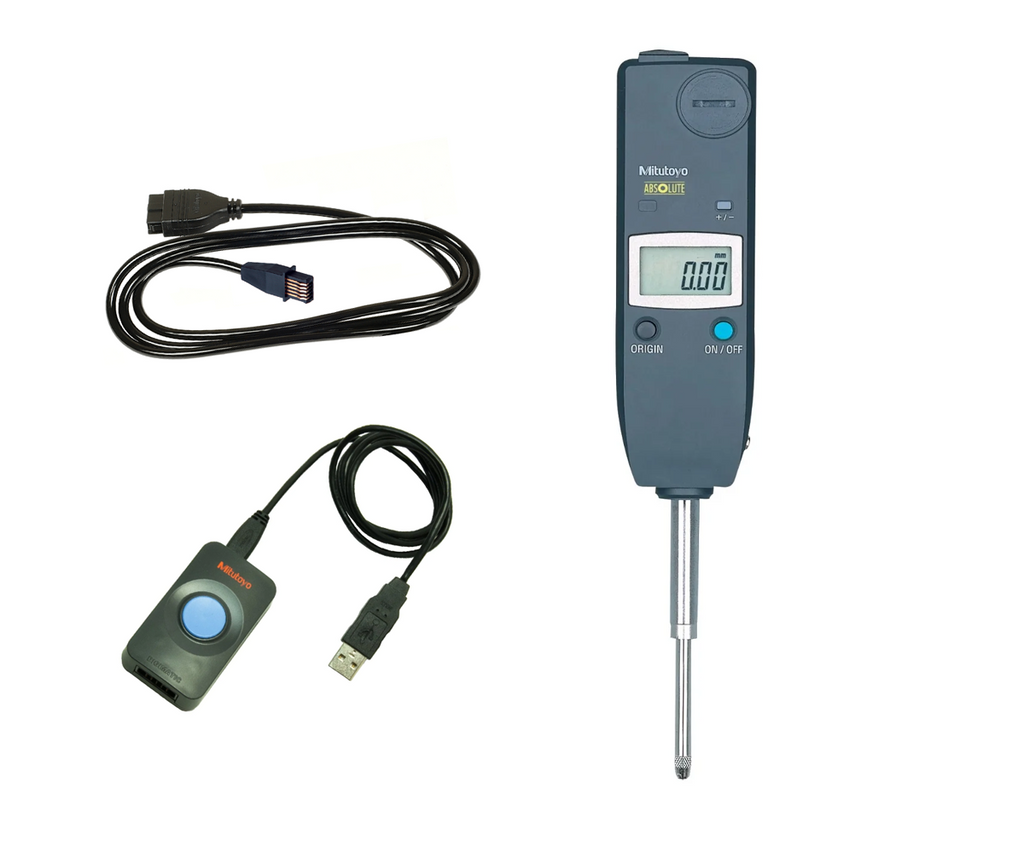

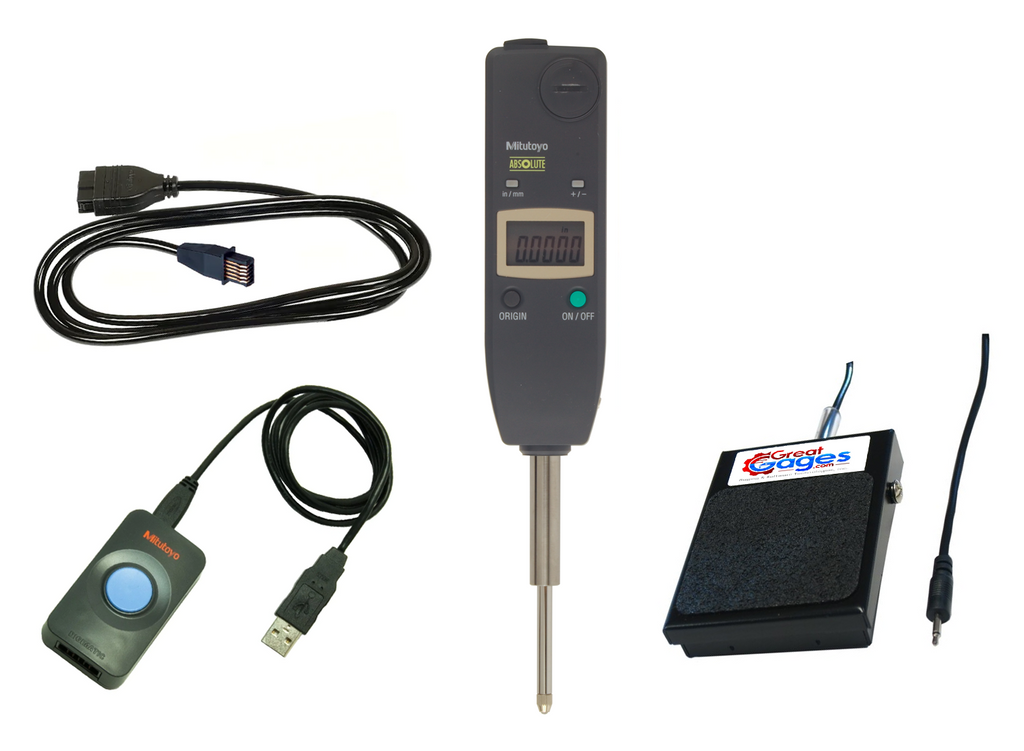

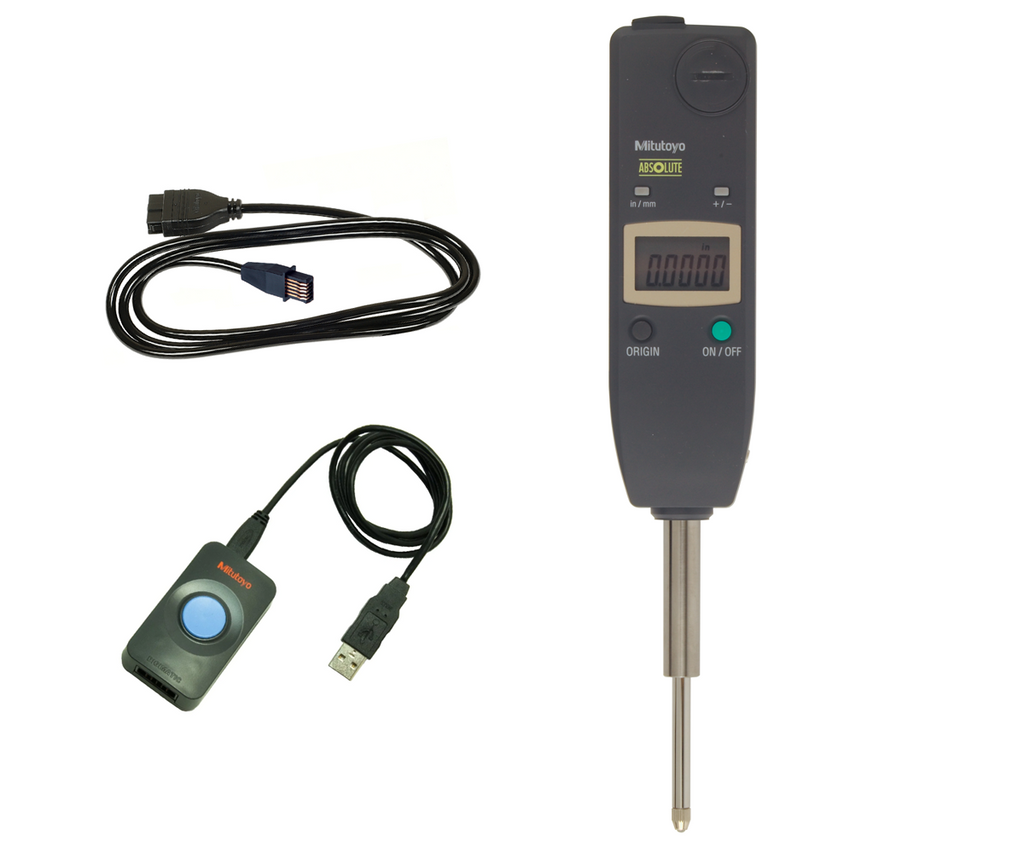

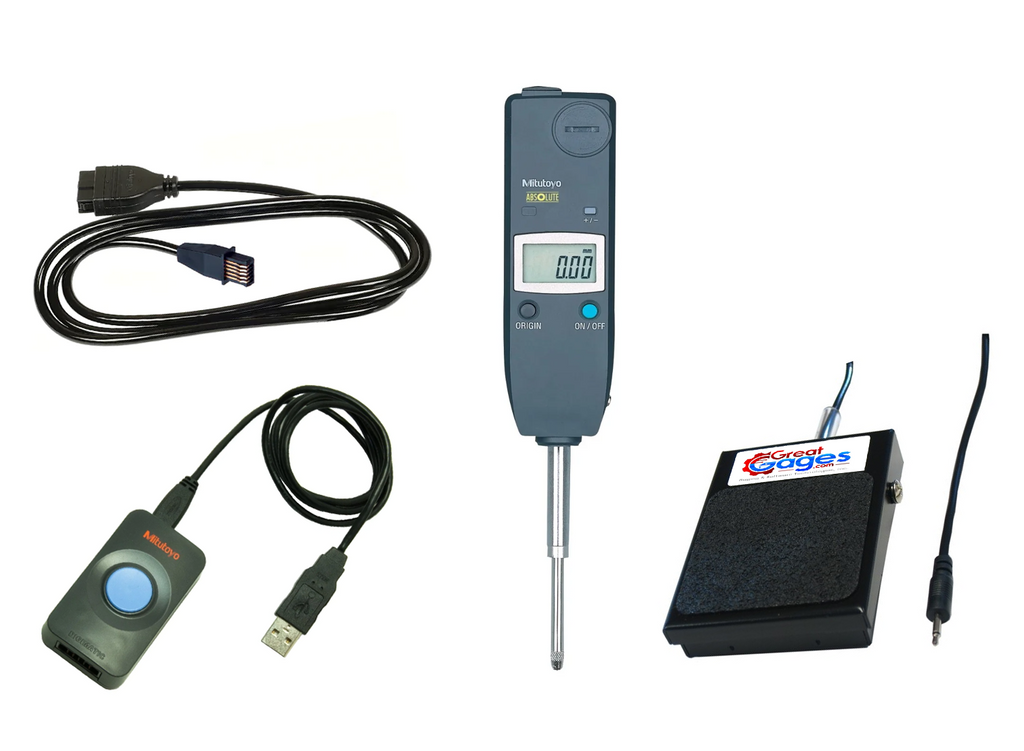

  • SPC data output.

  • Mitutoyo IDU Digital Indicators

SKU

Stem Diameter: 3/8"

Tip Thread: 4-48 UNF

RESOLUTION

.00005" / .001mm

RANGE

0-1" / 25.4mm

ACCURACY

.0008" / 0.02mm


Stem Diameter: 8mm

Tip Thread: M2.5

.00005" / .001mm

0-1" / 25.4mm

 .0008" / 0.02mm


Stem Diameter: 8mm

Tip Thread: M2.5

0.01mm

 25.4mm

0.02mm
