Mitutoyo U-Wave Fit Wireless Data Collection System

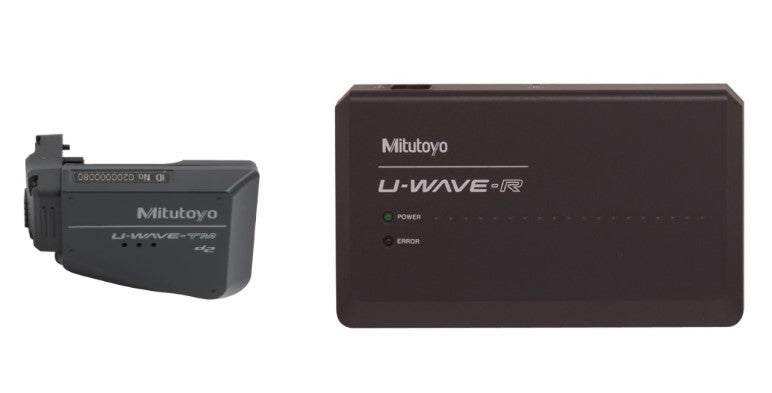

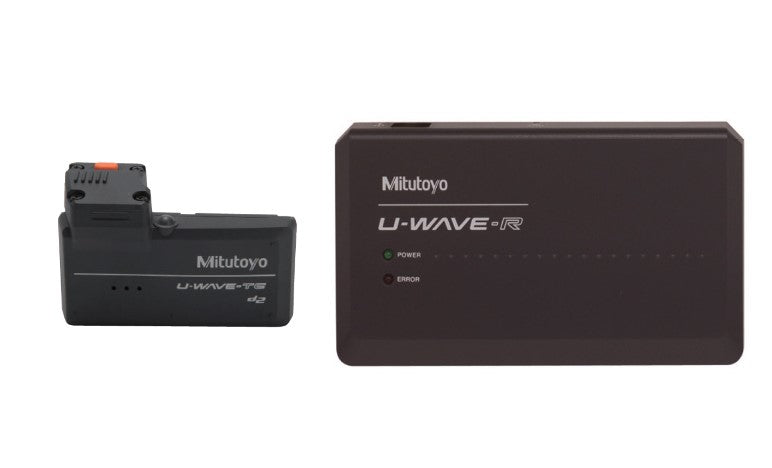

Mitutoyo’s U-Wave Fit Wireless Data Transmitters

These wireless data transmitters from Mitutoyo fit to the back of popular Mitutoyo hand-held measuring instruments. This new design allows for a snug fit behind the display resulting in a more ergonomic feel. U-Wave Fit is the same technology as the U-Wave T, just a smaller version.

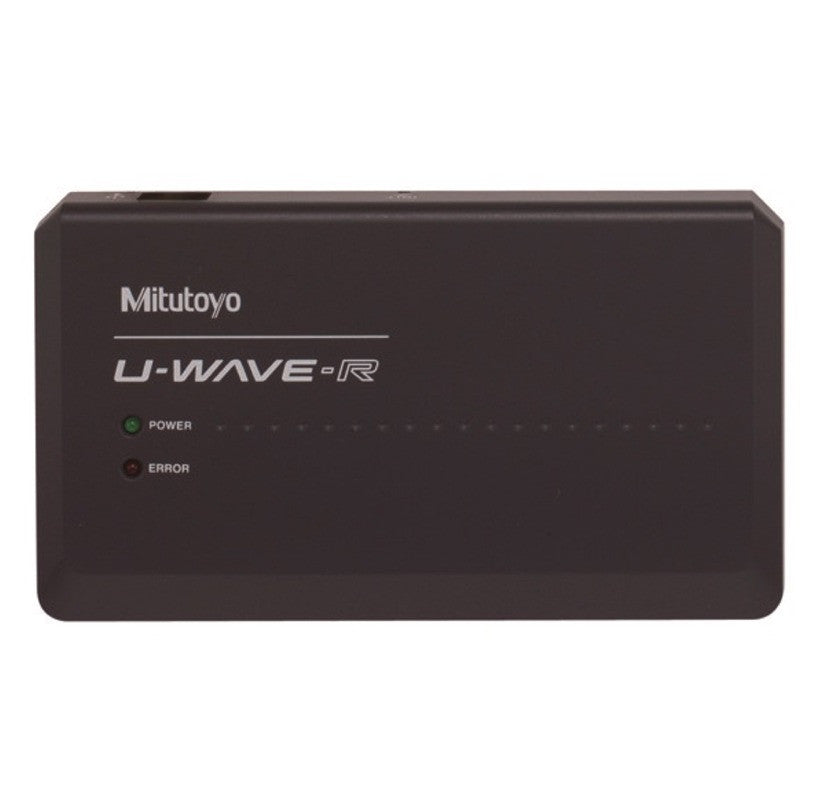

Mitutoyo's U-Wave Wireless Gage Interface system enables easy wireless data communication from a Mitutoyo measuring tool to a PC using the Mitutoyo's Digimatic protocol. Measurement efficiency is improved by eliminating long and cumbersome data cables.

The user-friendly interface allows data to be loaded into any software product that accepts keyboard input, including MS Excel, Mitutoyo's MeasurLink, and Prolink's QC-CALC software.

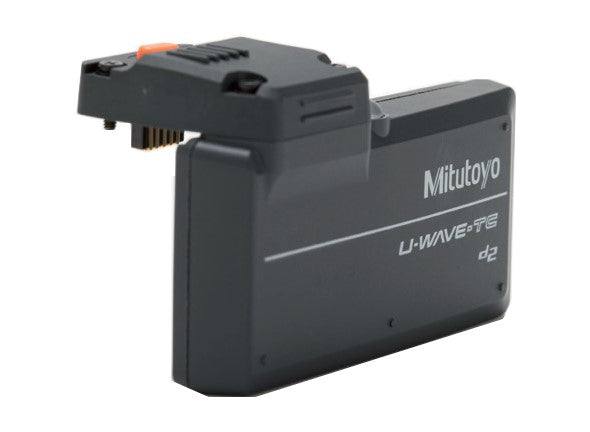

  • The transmitter is designed to fit in the space behind the display, and the connecting cable has been replaced by a rigid connector
  • Approx. 20 m transmission range (within visible range)
  • 2.4GHz wireless system for reliable and secure data transmission
  • Easy data export to Microsoft® Excel® or SPC software applications
  • Transmitter confirms data transfer by an LED signal and optional buzzer
  • An IP67 transmitter is available to ensure a coolant-proof gaging system
  • Low power consumption: 400.000 data transmissions with a single battery

  Mitutoyo U-Wave FIT Wireless Brochure... Click Here
