LINEAR SCALES ECONOMY
PRECISION dimension MEASURING
Horizontal and Vertical Linear Scales are precision measuring instruments used to measure linear dimensions in manufacturing, engineering, and research applications. They are similar to Digimatic Linear Scales, but they are designed for specific orientations - horizontal and vertical - respectively.

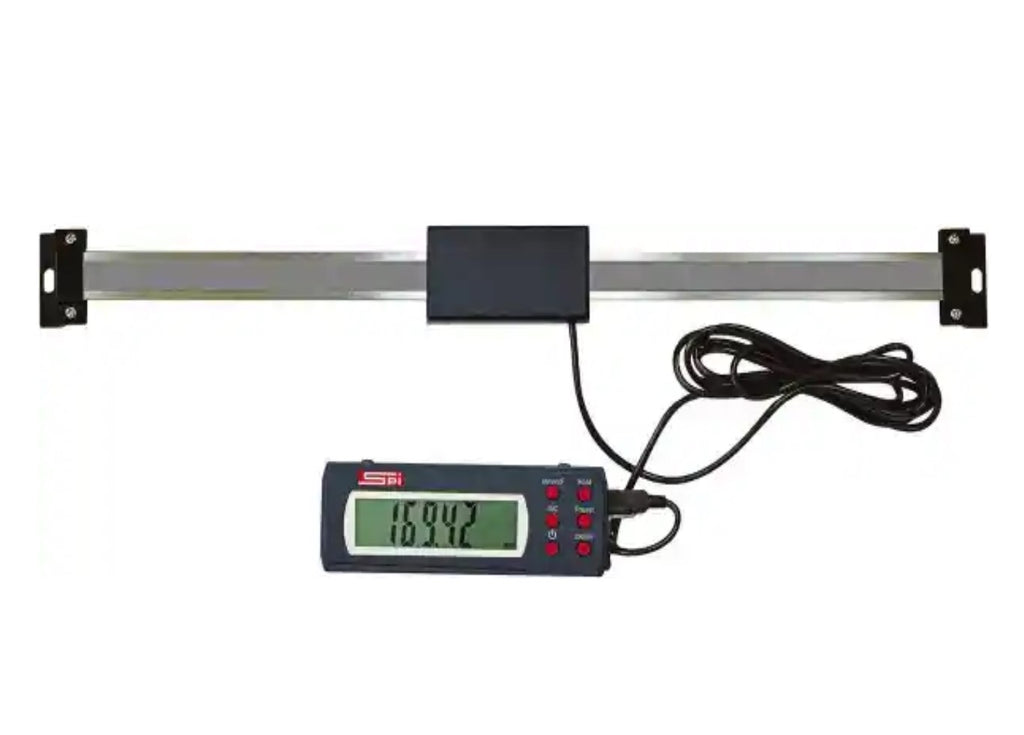

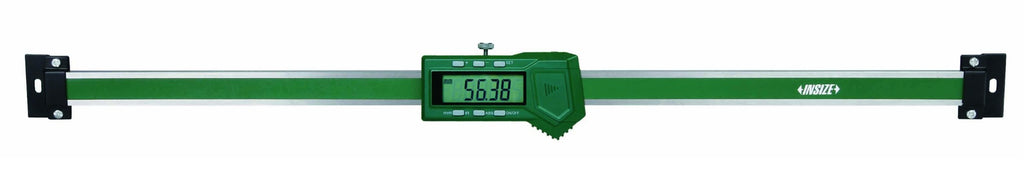

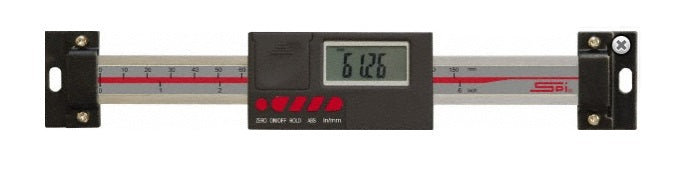

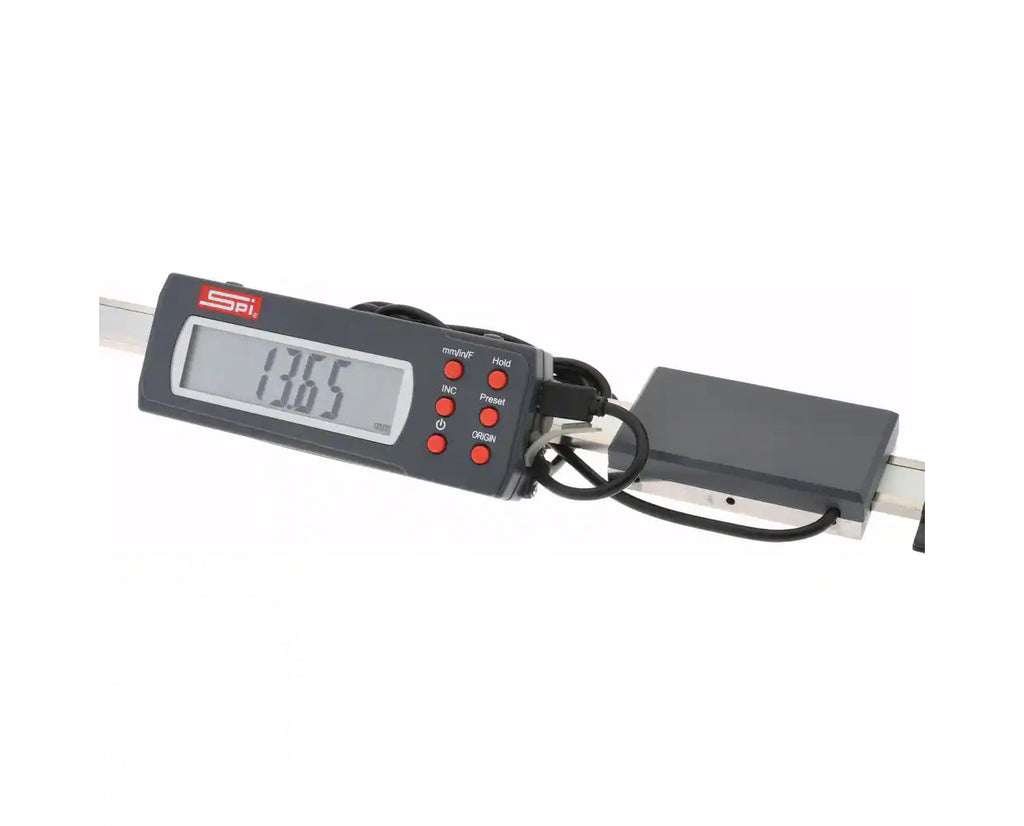

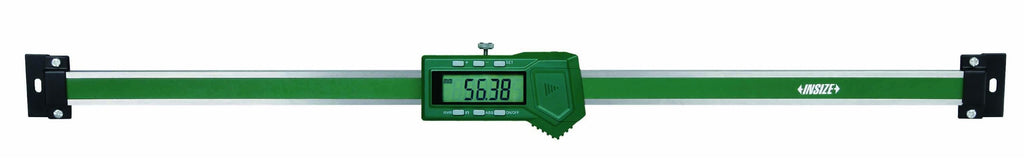

Horizontal Linear Scales, also known as horizontal digital scales or horizontal digital calipers, are used for measuring distances along a horizontal plane. They typically consist of a fixed base with a movable jaw that slides along a horizontal bar. The reading head contains a linear encoder and digital display, which shows the measured distance in millimeters or inches. They are often used in woodworking, metalworking, and other applications where measurements need to be taken along a horizontal surface.

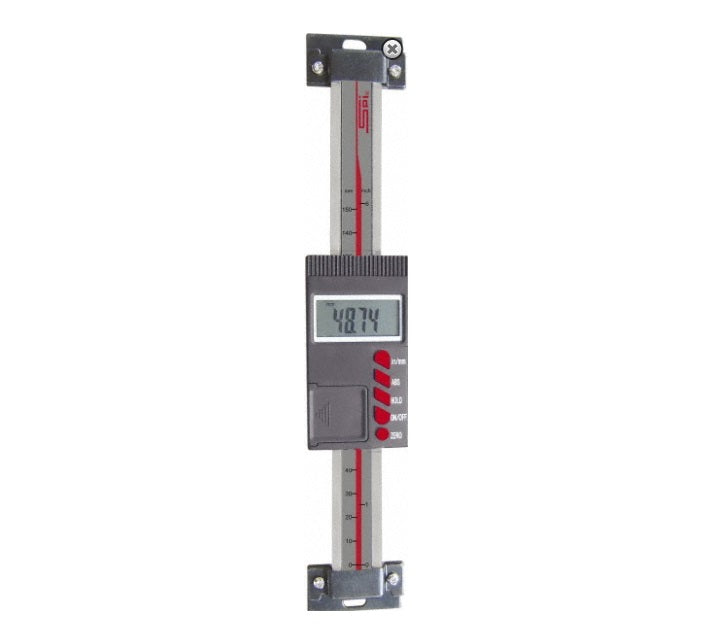

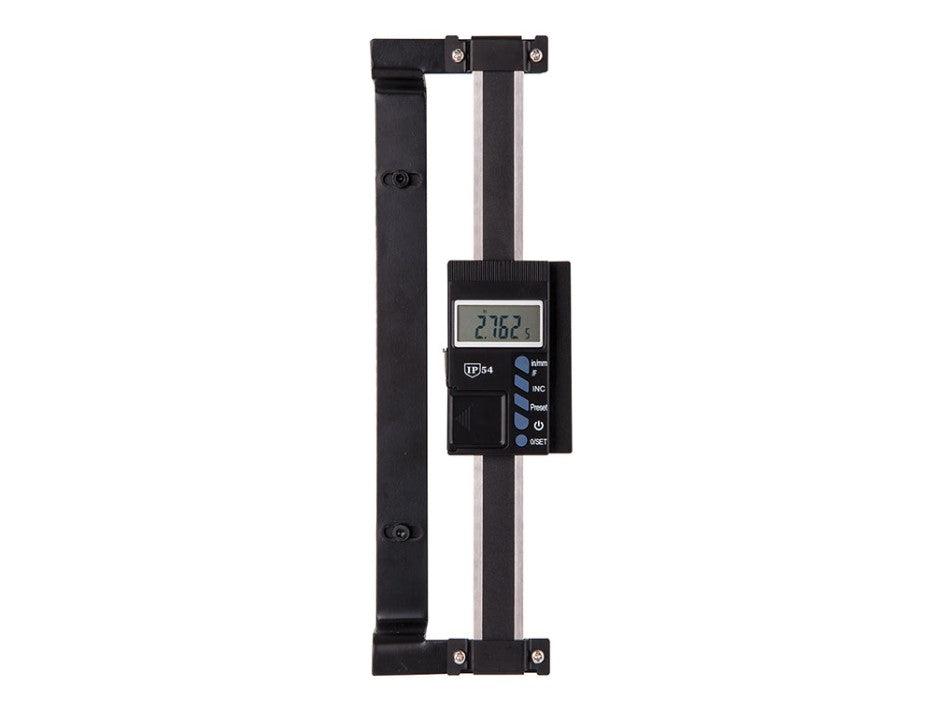

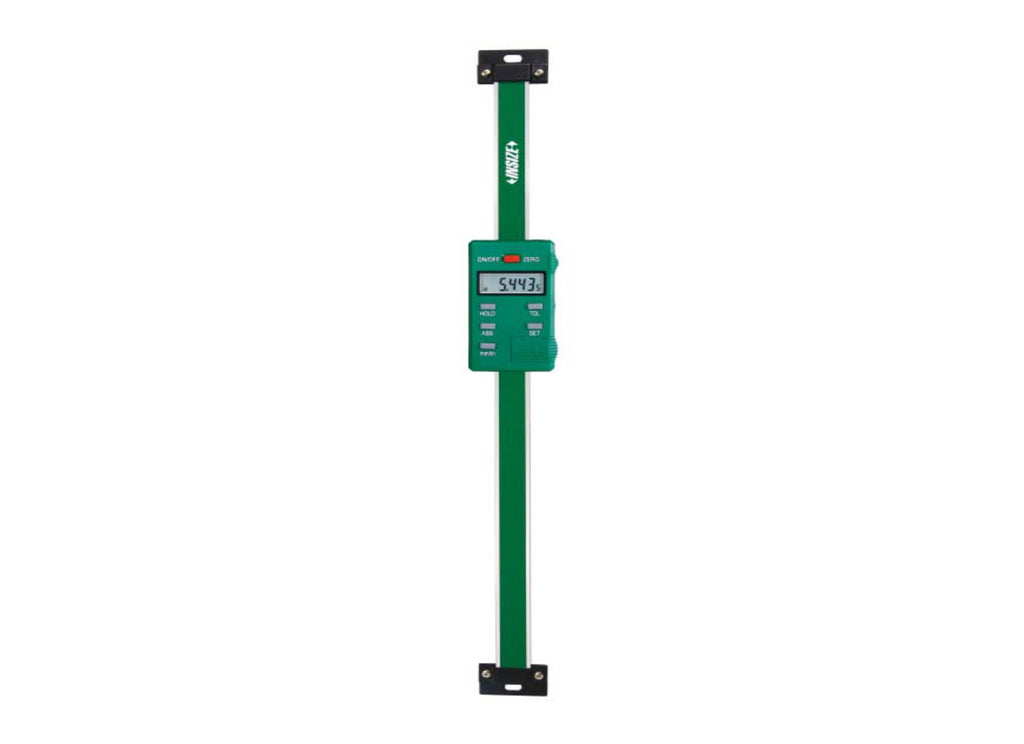

Vertical Linear Scales, also known as vertical digital scales or vertical digital calipers, are used for measuring distances along a vertical plane. They typically consist of a fixed base with a movable jaw that slides up and down a vertical bar. The reading head contains a linear encoder and digital display, which shows the measured distance in millimeters or inches. They are often used in metalworking, machining, and other applications where measurements need to be taken along a vertical surface.
Both Horizontal and Vertical Linear Scales are known for their high accuracy and repeatability, with measurement resolution ranging from 0.001mm to 0.0005 inches. They also have a variety of advanced features such as data output, absolute and incremental modes, and IP67 dust and water resistance ratings.
In summary, Horizontal and Vertical Linear Scales are specialized measuring instruments that are essential for industries that require precise measurement along specific planes. They are reliable and accurate tools for a wide range of applications, including machining, tool making, and quality control.
Both Horizontal and Vertical Linear Scales are known for their high accuracy and repeatability, with measurement resolution ranging from 0.001mm to 0.0005 inches. They also have a variety of advanced features such as data output, absolute and incremental modes, and IP67 dust and water resistance ratings.
In summary, Horizontal and Vertical Linear Scales are specialized measuring instruments that are essential for industries that require precise measurement along specific planes. They are reliable and accurate tools for a wide range of applications, including machining, tool making, and quality control.
