MMVB-Series Digital Length Gages with Stand
The MMVB Series of Digital Length Gages are designed to simplify the quality control process of measuring overall dimensions of round parts. The MMVB features a more robust construction and integrated v-blocks to make measuring round parts much more user friendly. A rigid support stand is included with optional casters for portability.
- Non-contact linear encoder for direct and precise measuring
- Swivel mounted 5.7” color TFT screen with segmented error compensation for near perfect measuring accuracy
- Simulated absolute encoder functionality to ensure you do not lose positional information when the readout is powered off

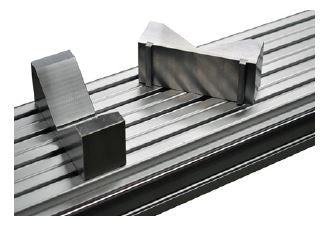

- Integrated stand with keyed v-blocks
- Available in any length - No limitations
- Maintenance -free stainless steel roller bearings
- Customized to fit application requirements
Standard Specifications include...
- 0.0001" / 0.001mm Resolution
- Encoder Accuracy: + 0.0002"
- Jaw Size: Up to 6" OD Standard
- 36" Working Height
FREE Ground Shipping is included on these items.
To view a quick YouTube video of the MMVB in action, click on the picture below...

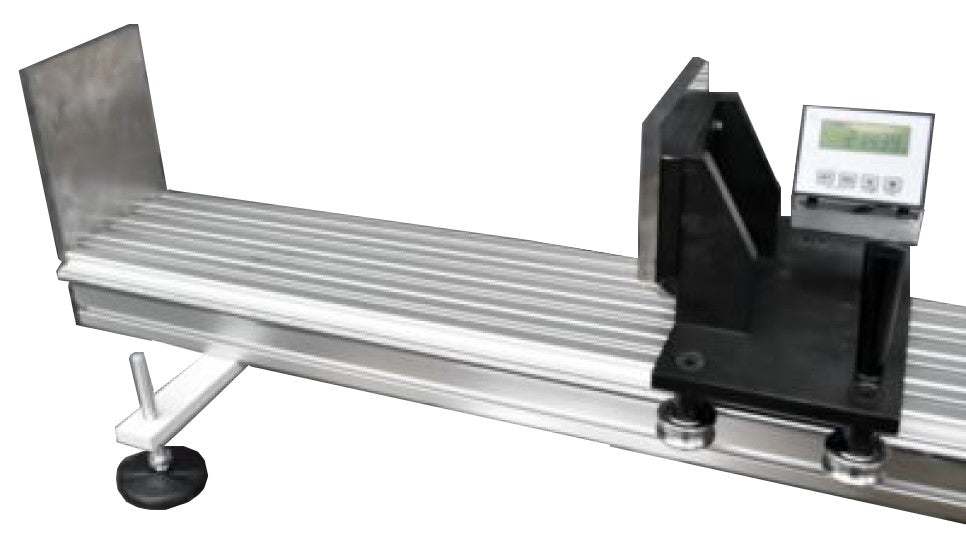

MMVB-18 Round Material Digital Length Gage for Table-Top 18"
Sale price $ 4,55000 $ 4,550.00
Save $ 400
MMVB-36 Round Material Digital Length Gage for Table-Top 36"
Sale price $ 4,85000 $ 4,850.00
Save $ 400

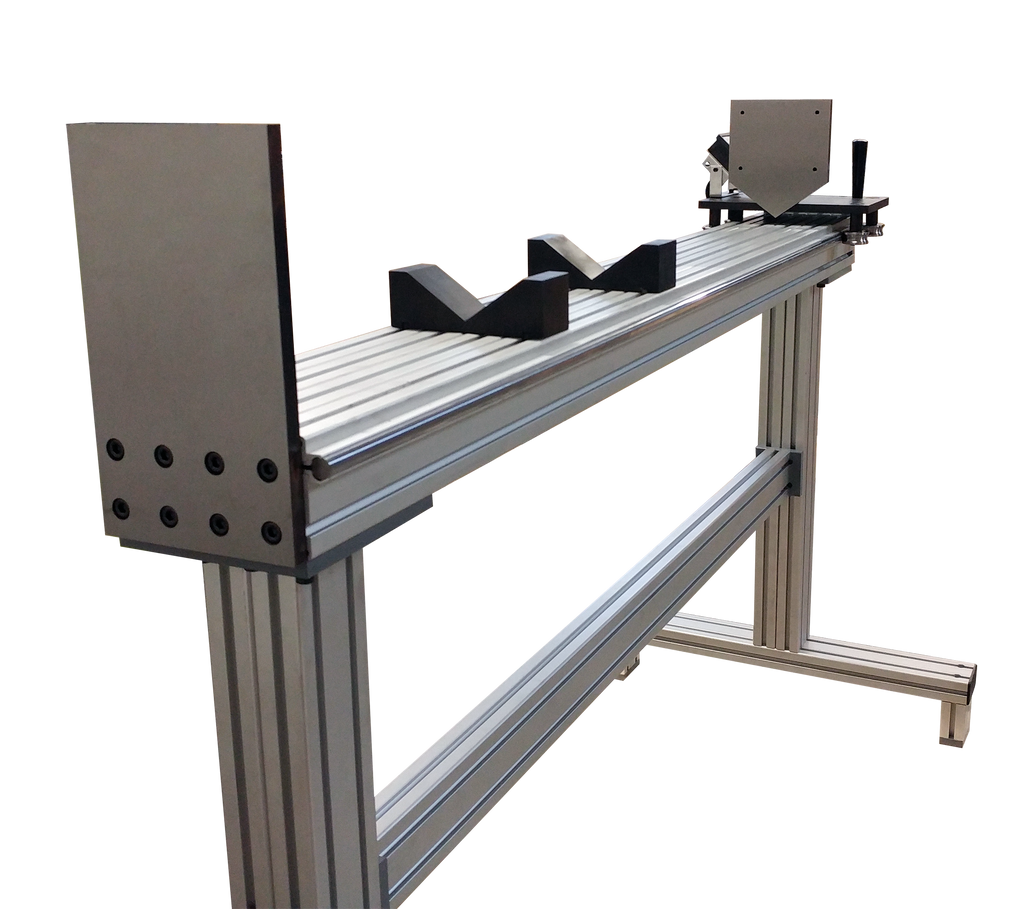

MMVB-120 Digital Length Gage with Stand 120"
Sale price $ 9,82500 $ 9,825.00
Save $ 473.75
MMVB-96 Digital Length Gage with Stand 96"
Sale price $ 8,95000 $ 8,950.00
Save $ 447.50
