Mitutoyo U-Wave Wireless Gage Interface System
U-Wave Wireless Gage Interface System
If you have an application to measure your products where it is not convenient to have cables or a PC close by, then Mitutoyo's U-Wave Wireless Gage Interface solution is what you need.
Mitutoyo's U-Wave Wireless Gage Interface system enables easy wireless data communication from a Mitutoyo measuring tool to a PC using the Mitutoyo's Digimatic protocol. Measurement efficiency is improved by eliminating long and cumbersome data cables.
The user-friendly interface allows data to be loaded into any software product that accepts keyboard input, including MS Excel, Mitutoyo's MeasurLink, and Prolink's QC-CALC software.

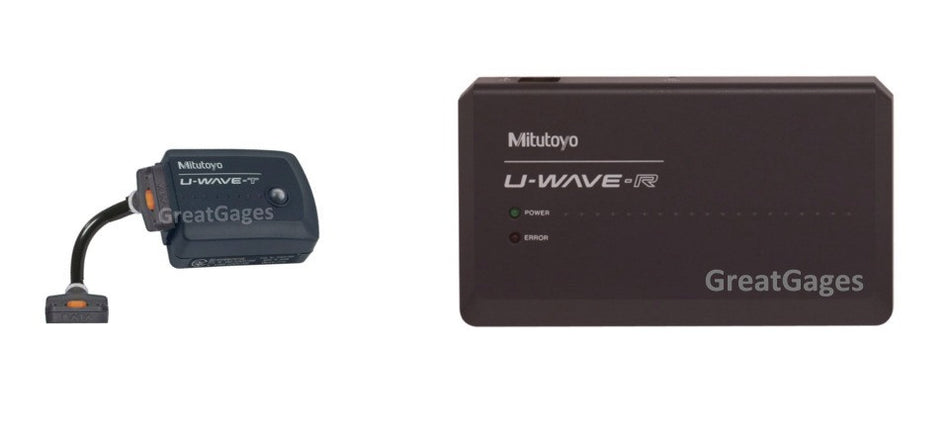

When putting together a wireless data collection system, you will need to have 1 U-Wave Receiver for each PC you want to send data to, and then 1 U-Wave Transmitter and 1 U-Wave Transmitter cable for each gage that you want to send data from to the U-Wave Receiver.
To view Mitutoyo U-Wave Wireless Gage Interface System videos, click here.
| Standard Cable # | |||||||

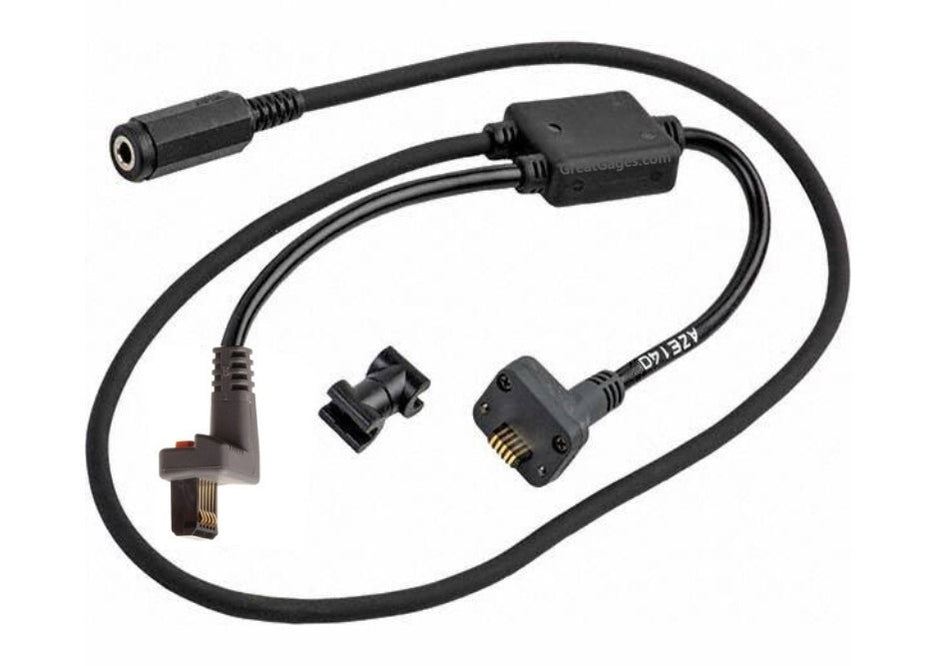

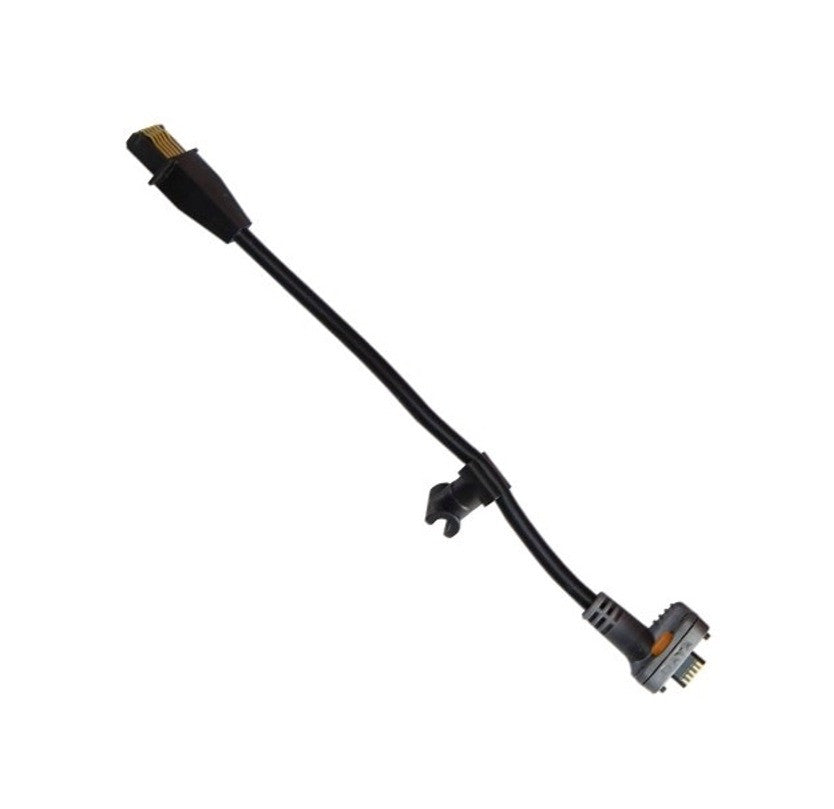

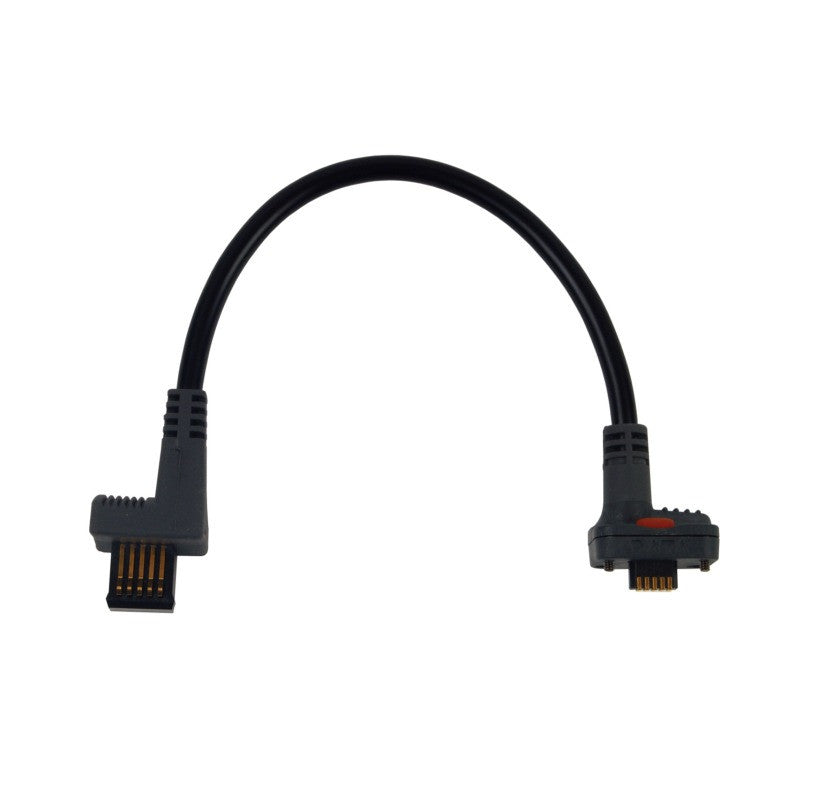

| Footswitch Cable # | 02AZE140A | 02AZE140B | 02AZE140C | 02AZE140D | 02AZE140E | 02AZE140F | 02AZE140G |
| Cable Type | Water-proof with switch | Water-proof with switch | With Switch | 10-pin plain | 6-pin round | Straight Type | Water-proof Straight Type |
| Connector Illustration |  |
 |
 |
 |
 |
 |
 |
| Gage Connector |  |
 |
 |
 |
 |
 |
 |
| Compatible Gage | 550 / 551 series Caliper 552 series Carbon Fiber Caliper 571 series Depth Gage 572 series Scale Unit 573 series Caliper |
293 / 337 / 339 / series Micrometers 350 series Micrometer Heads 468 series Holtest |
164 series Micrometer Head 500 series Caliper 550 / 551 series Depth Gage 572 series Scale Unit 573 series Caliper |
178 series Surftest 179 series Thickness Gage 518 series Linear Height 543 series IDH Indicators 544 series Laser Scan Micrometers |
121 / 164 / 227 / 293 / 337 / 339 / series Micrometers 468 series Holtest 568 series Borematic 810 series Hardness Testers |
192 / 570 / 574 series Height Gages 500 / 550 / 551 series Calipers 511 series Bore Gage 543 series IDC Indicators 547 series Depth Gages 552 series Carbon Fiber Caliper |
543 series IDN, IDB Indicator |
