Fixture Kits
The fixture kits that we offer are designed to help maximize the efficient use of your CMMs, Vision Systems, and Optical Comparators.

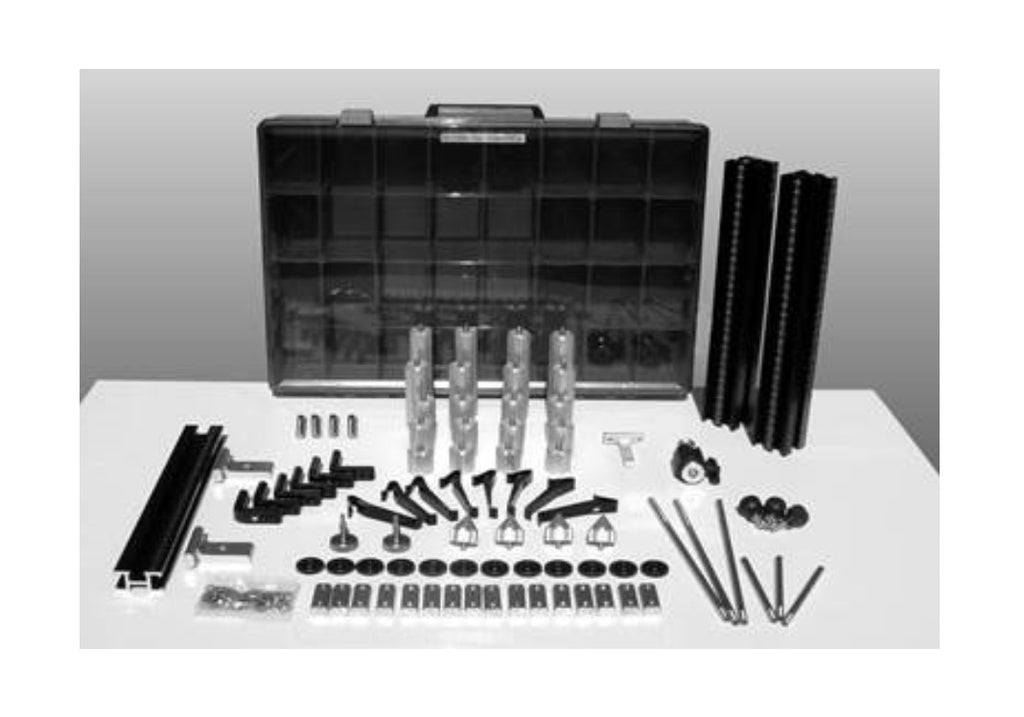

CMM Fixture Component KitsRayco offers a variety of CMM Fixture Component Kits ranging from a 41 pc set up to a 150 pc set. Whether you are looking for a basic fixture kit to help you get started with your CMM fixturing needs, or a more advanced and complete kit to maximize the use, efficiency, and accuracy of your CMM, we have got the right component kits for you. |

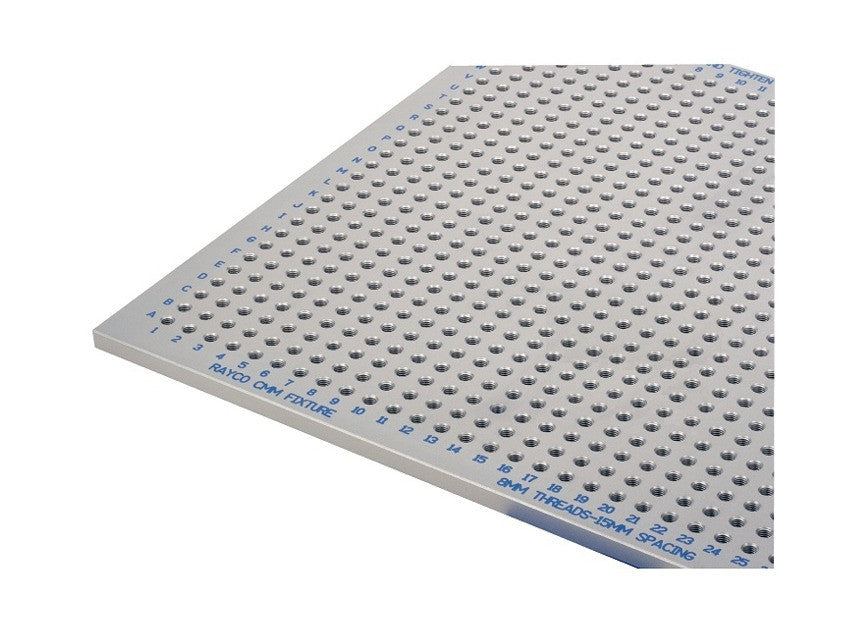

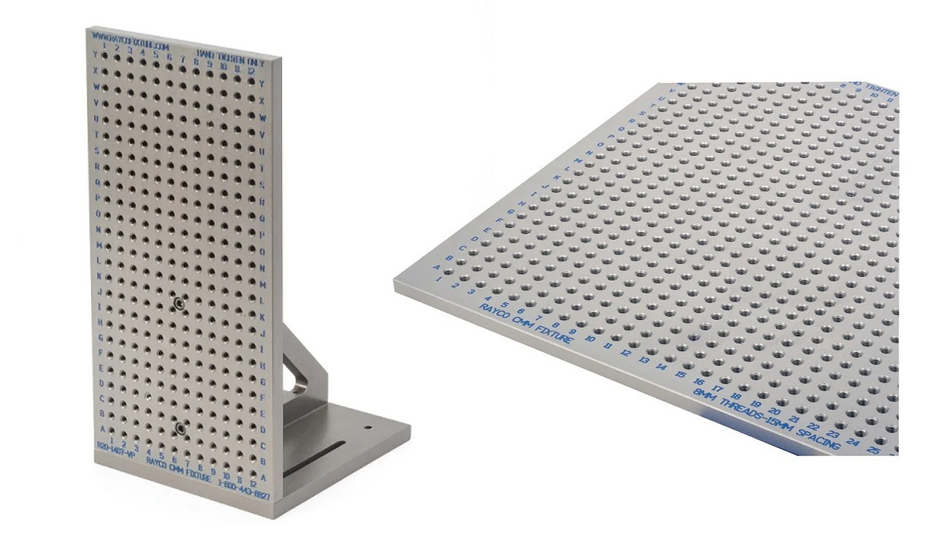

![]() CMM Fixture Kit PlatesRayco CMM Fixture Base Plates are available in standard and custom sizes, as well as with your choice of 1/4 20, M4 or M8 threaded holes. Rayco CMM Fixture Base Plates are made of cast aluminum with a special protective hard-coat surface. They also use their patented alphanumeric labeling system to mark all holes which allows for easy documentation of each setup. |
Optical Comparator Fixture KitsFixOptix Modular Fixture System for FixOptix OFK-1 Kit with optional rotary vise stage comparators is the first of its kind. The kit is economical and very functional. The system mimics traditional fixtures like v-blocks, vises, and centers. It also allows the user to create an infinite variety of fixtures to stage parts that are not easily held by traditional fixtures. |

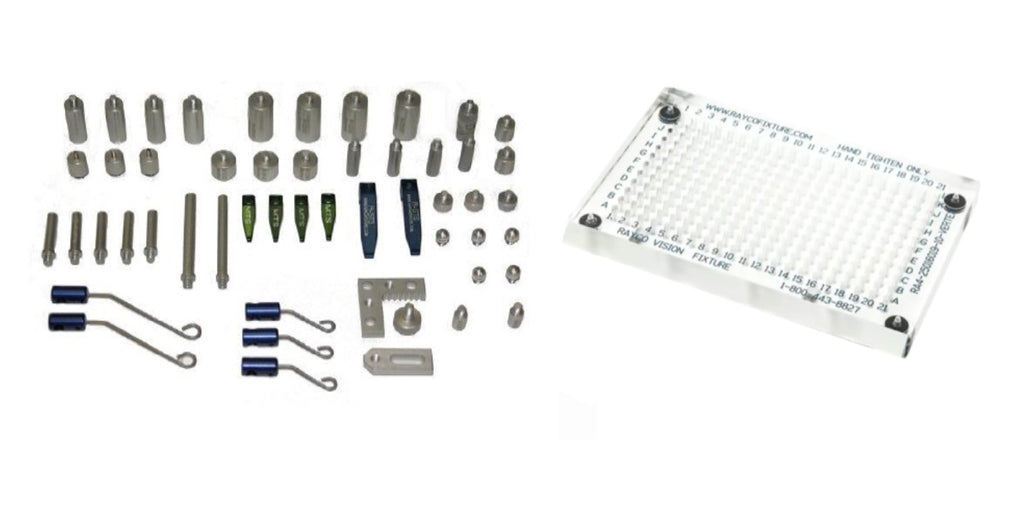

![]() Vision System Fixture KitsRayco offers a variety of Vision System Fixture Kits. Each kit is made with a precision acrylic base plate that allows for back lighting and a clear, clean look at the part from your vision system. Fixture base plates can be customized to fit and mount to your specific vision stage. The base plates are alphanumerically labeled for documenting your part setups. |

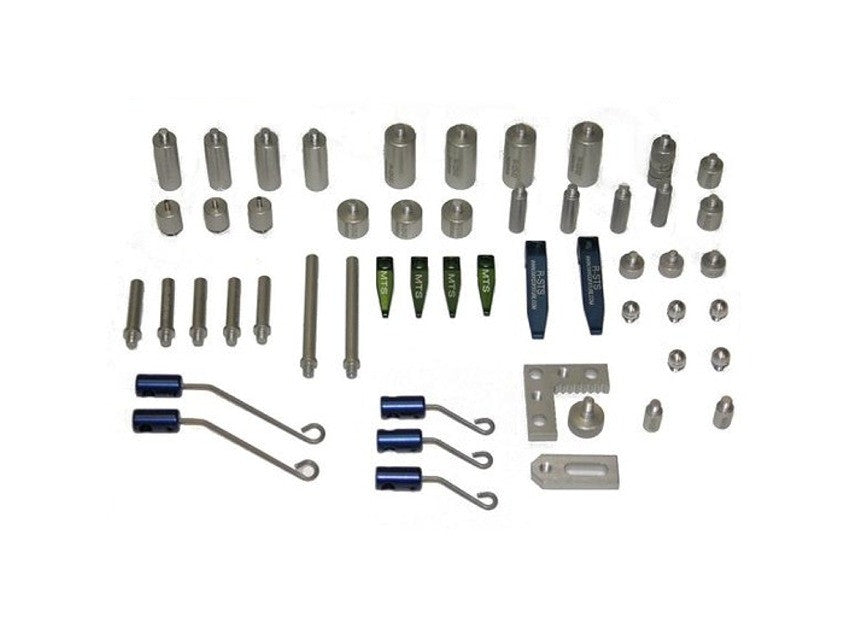

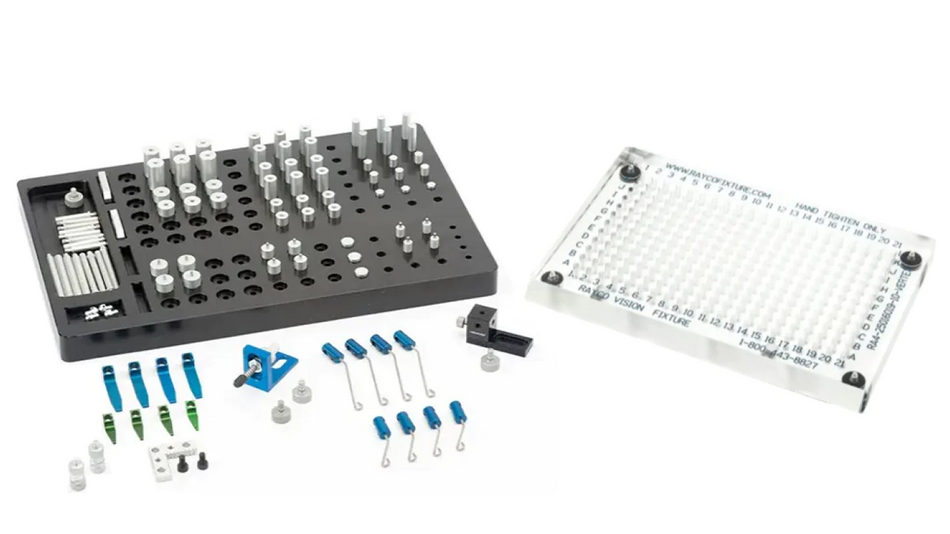

Vision System Fixture Component KitsRayco offers a variety of Vision System Fixture Component Kits ranging from a 39 pc set up to a 111 pc set. Rayco's components are small and can be arranged within a close circumference to hold and view the smallest of parts without interfering with the edge detection of your machine. Steel stampings or machined parts can be held to the fixture with magnets, while various clamping methods are provided for aluminum , plastic, brass, and other non-ferrous materials. The Rayco Vision System Fixture Kits have the versatility to hold virtually anything. |
