Specialty Digital Indicators


These digital indicators are IP66 rated, providing water and dust protection.

There slim body design make these units ideal for smaller, hard-to-fit fixtures where regular digital indicators are just a little to big.

Features include...

  • Proven ABSOLUTE sensor.
  • Rated to IP66 water- and dust-proofing standard and oil resistance improved.
  • Slim body design is advantageous for multi-point measurements.
  • Improvement in workability with the LCD readout-rotation function.
  • Back plunger design (ID-B).
  • Built-in tolerance judgment function.
  • Switchable resolution.
  • Waterproof data output connector.
  • Built-in hold/preset function

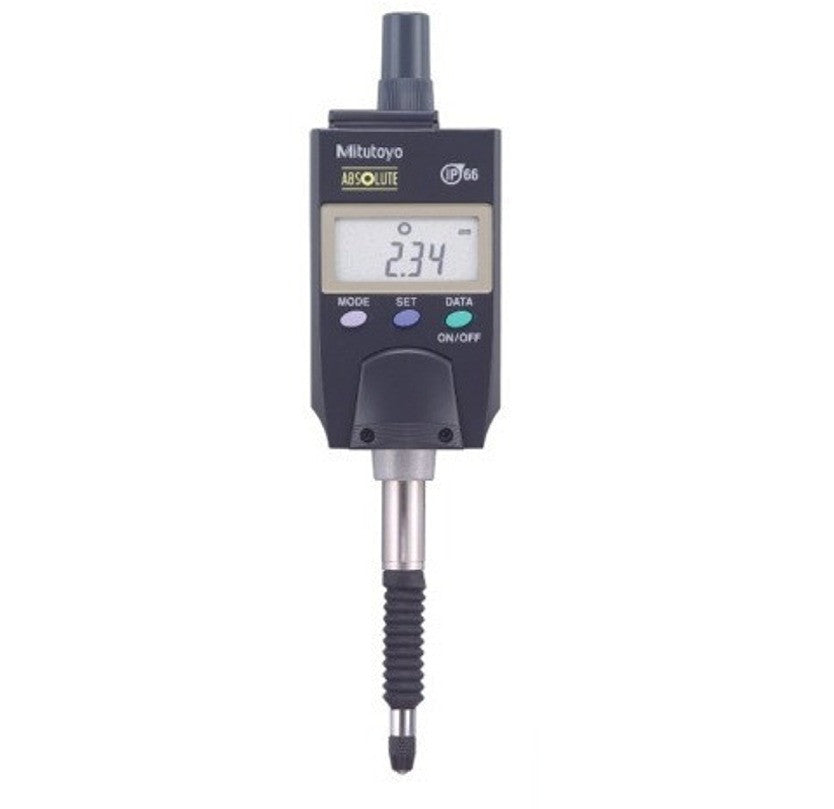

ID-N Slim Type

ID-N Slim Type



ID-B Back Plunger Type

Resolution Range Model # Accuracy Measuring Force Model Type

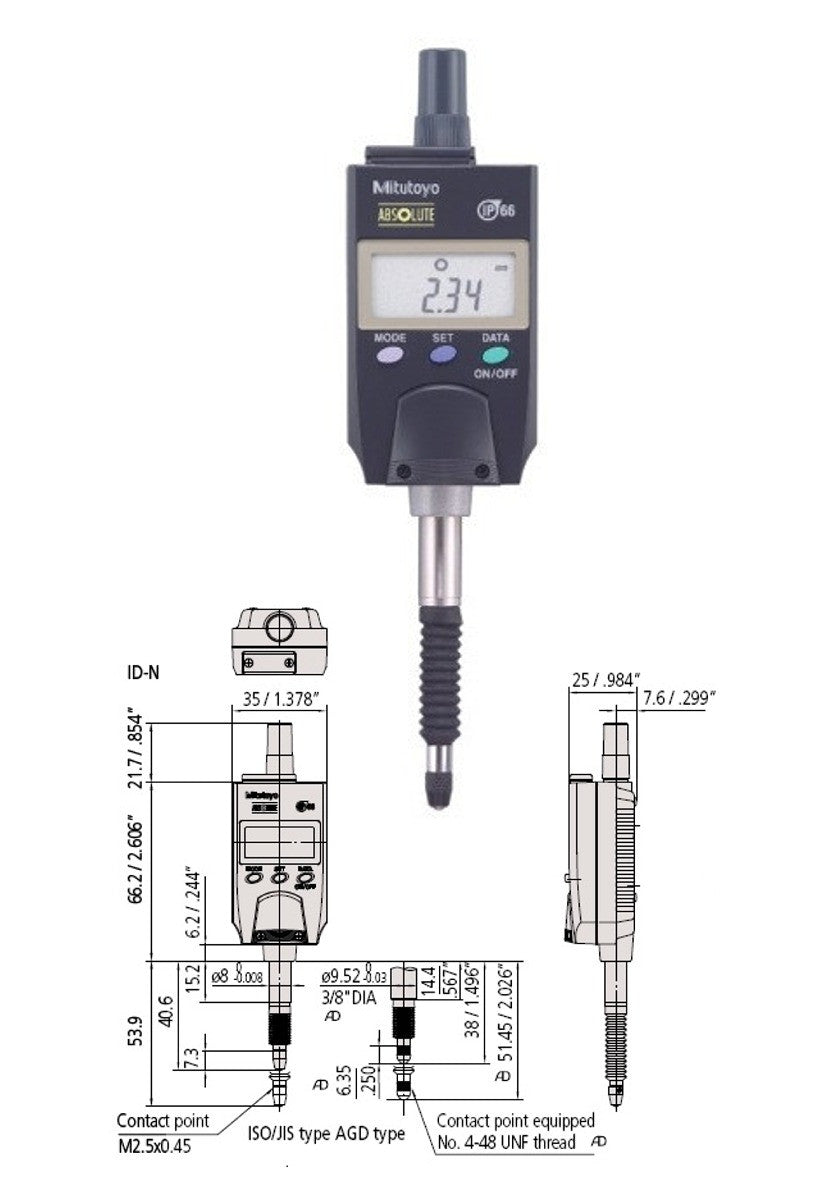

0.0008" / 0.02mm .5" / 12.7mm 543-571 .0008" / .02mm 2.0N or less ID-N Slim Type

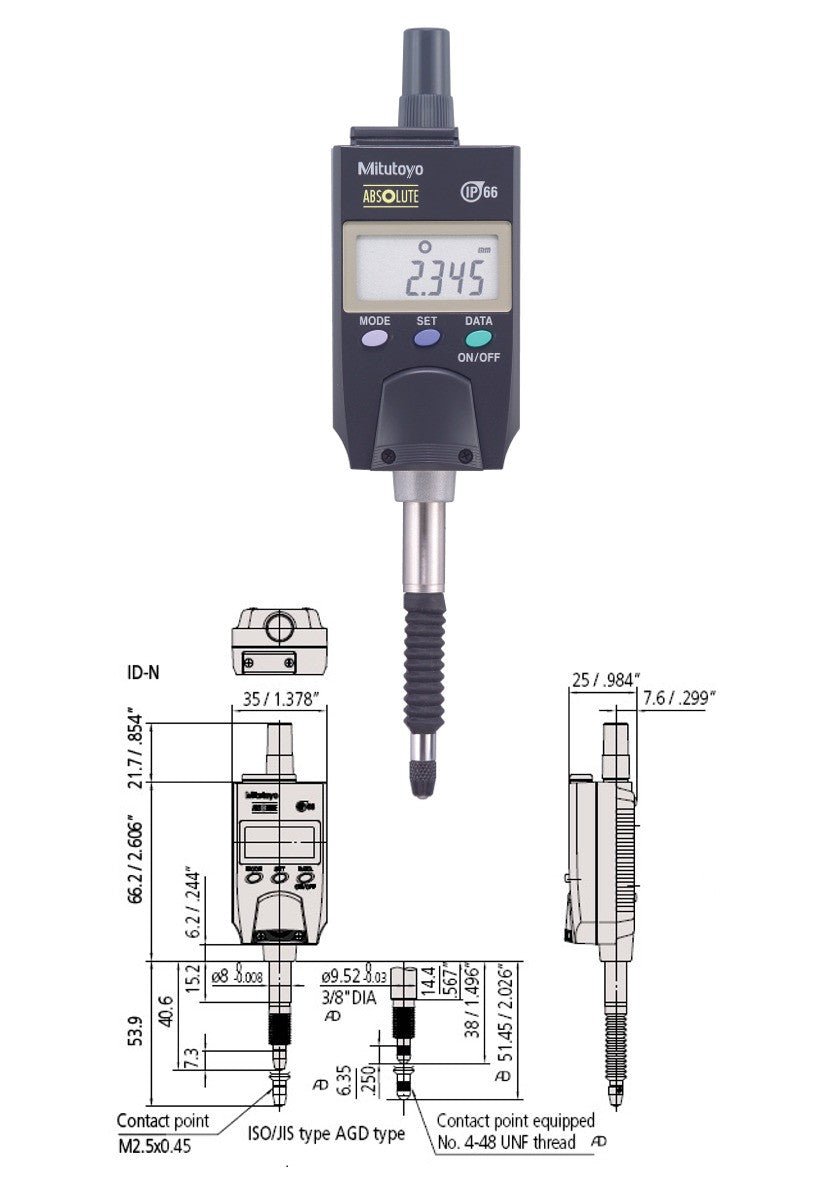

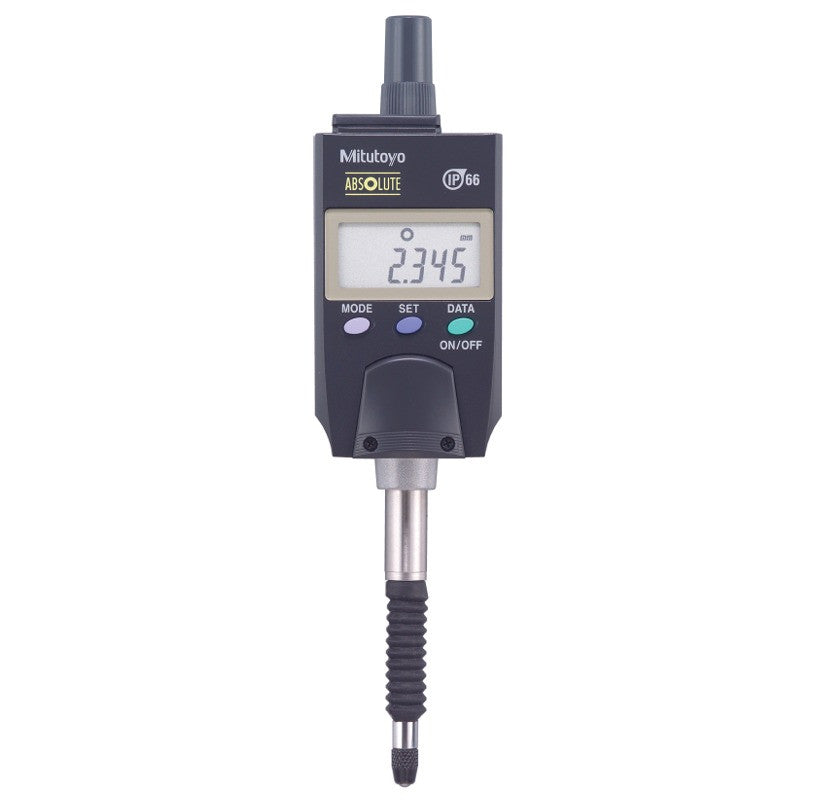

0.00012" / 0.003mm .5" / 12.7mm 543-576 .00012" / .003mm 2.0N or less ID-N Slim Type

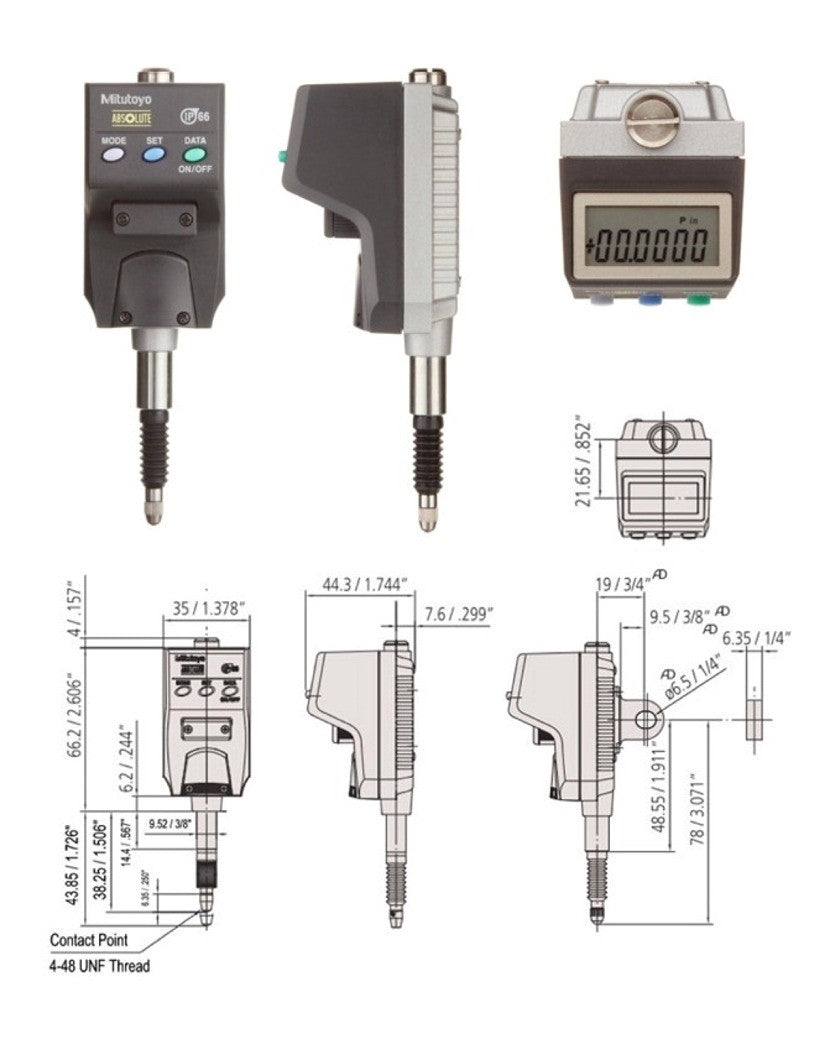

0.0005" / 0.01mm .22" / 5.6mm 543-581 .0008" / .02mm 2.0N or less ID-B Back Plunger Type

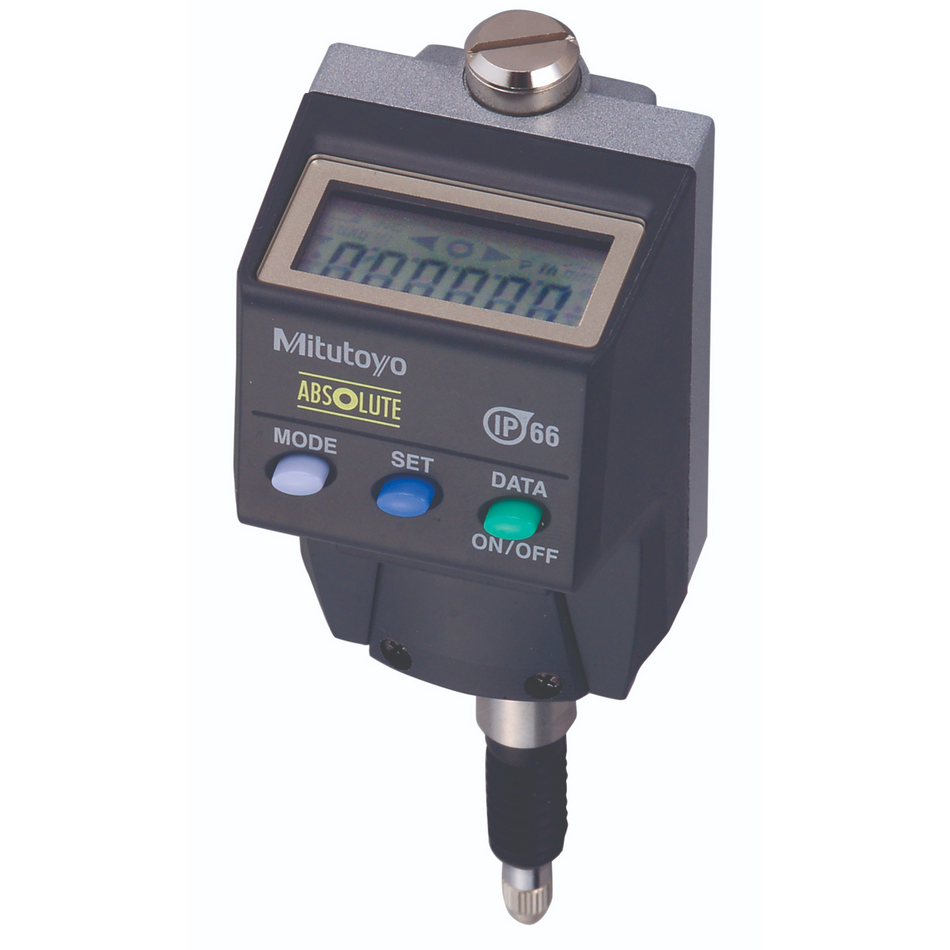

0.00005" / 0.001mm .22" / 5.6mm 543-586 .00012" / .003mm 2.0N or less ID-B Back Plunger Type
 Mitutoyo IDN Indicators Brochure... Click Here
