Mitutoyo IDF Digital Indicators

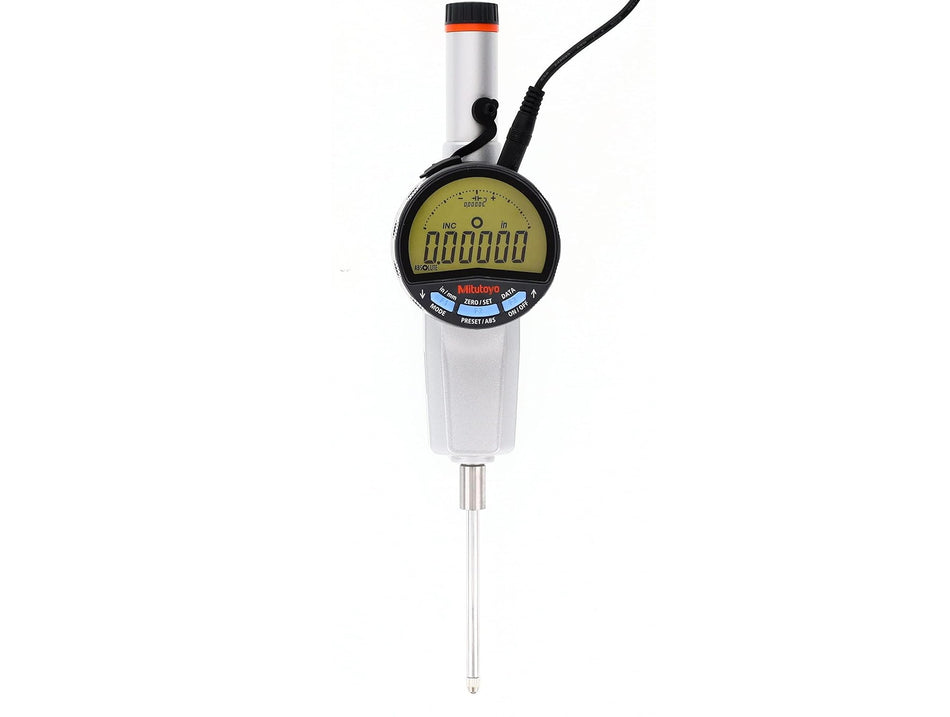

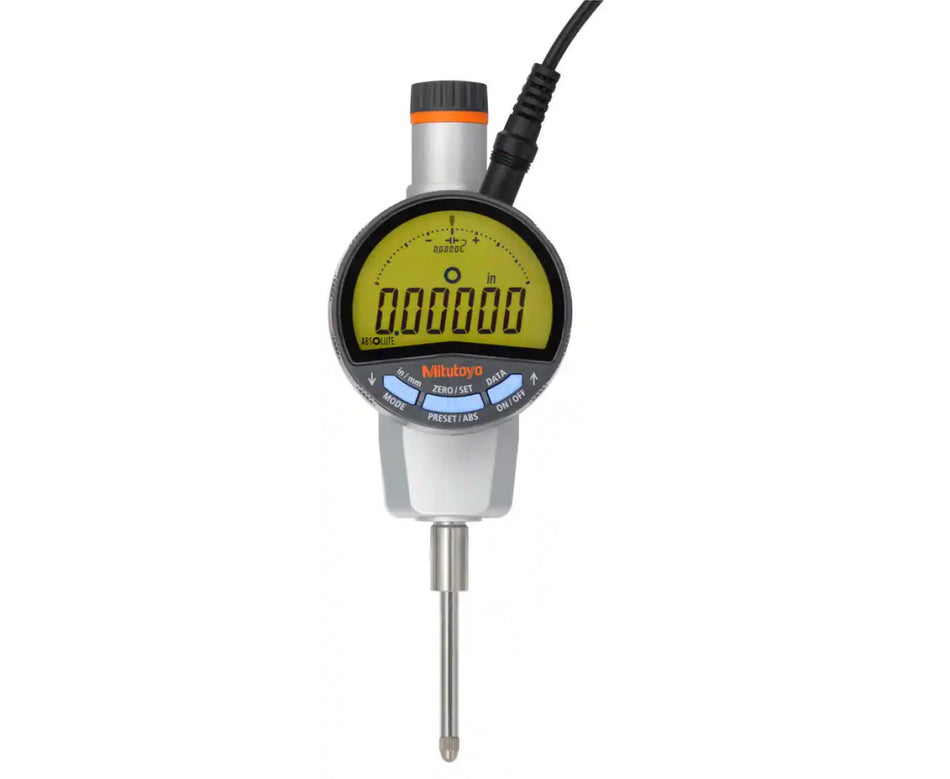

Mitutoyo IDF Digital Indicator

This Mitutoyo digital indicator offers a back-lit LCD screen that changes color (Red / Green) when tolerances have been set.

Features include...

  • With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on.
  • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed.
  • Switchable resolution: .00005", .0001", .0005", .001" / 0.001mm, 0.01mm
  • With SPC data output.

Functions Include...

Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value hold, Runout measurement, Resolution switching, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only), Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error.
