STANDARD V-ANVIL MICROMETERS

PRECISION Thickness MEASURING

Mechanical V-Anvil Micrometers are precision measuring tools used to measure the outside diameter of cylindrical components with high accuracy. They are commonly used in the manufacturing, engineering, and scientific industries to ensure precise measurements of cylindrical components, such as shafts and bearings.

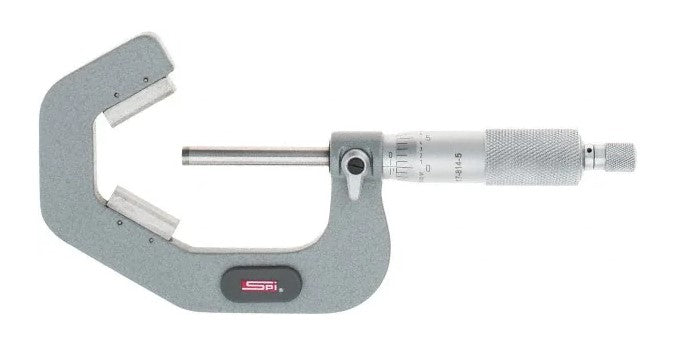

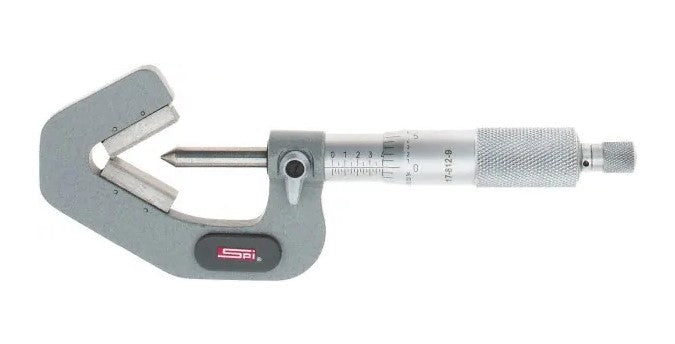

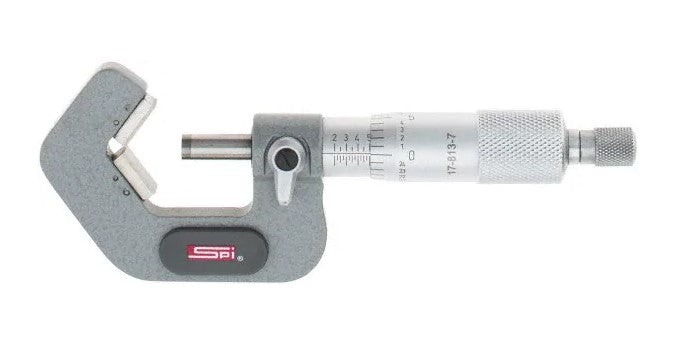

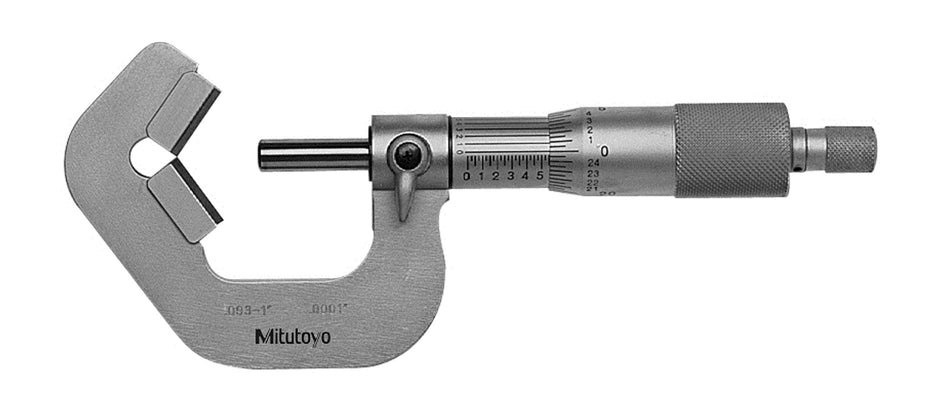

A Mechanical V-Anvil Micrometer consists of a frame, a spindle, a thimble, and a measuring contact with two V-shaped anvils that are designed to make contact with the component being measured. The anvils are typically positioned at a 120-degree angle to each other and are used to measure the diameter of cylindrical components that have a V-shape, such as threads or bearings.

Standard V-Anvil Micrometers at GreatGages.com

To measure the outside diameter of a cylindrical component with a V-shape, the micrometer is placed over the component, and the spindle is adjusted until it makes contact with the component's V-shape. The measurement is taken by reading the measurement result on the micrometer's thimble, which has markings indicating the diameter being measured in micrometers or thousandths of an inch.

Mechanical V-Anvil Micrometers are available in various types and sizes, including micrometers with different angles between the anvils, and micrometers with interchangeable measuring contacts for greater versatility. They can be used to measure various types of cylindrical components, such as threads, bearings, and pipes, making them a versatile tool for quality control and precision machining.

Overall, Mechanical V-Anvil Micrometers are highly precise and accurate measuring tools that are essential in many industries. They provide accurate measurements of the outside diameter of cylindrical components with a V-shape, making them a valuable tool for quality control and precision machining. The variety of anvils and measuring contacts available also makes them a versatile tool for a wide range of applications.

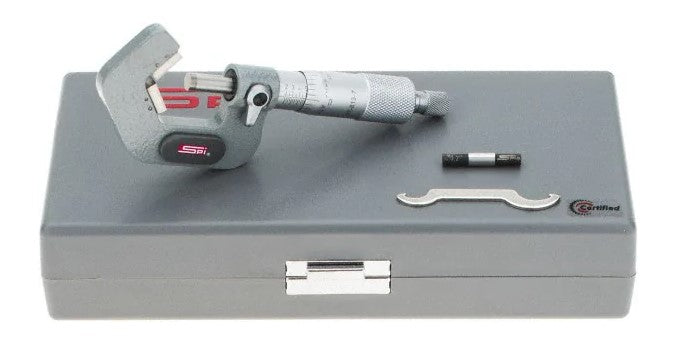

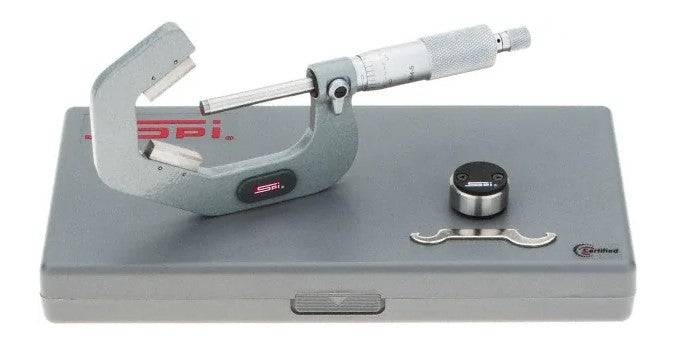

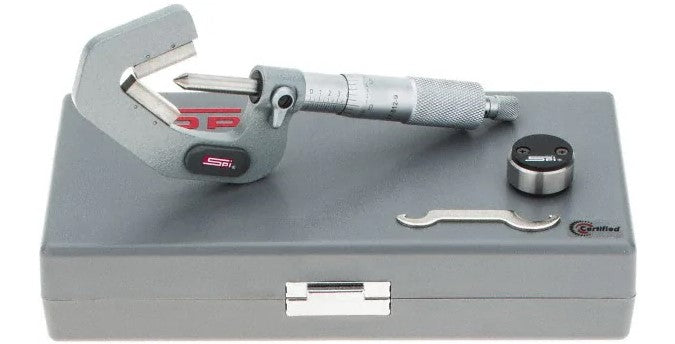

sHOP our STANDARD V-ANVIL MICROMETER collection...

4 products
