Digital High Accuracy Micrometers

Mitutoyo Hi Resolution Digital Micrometer

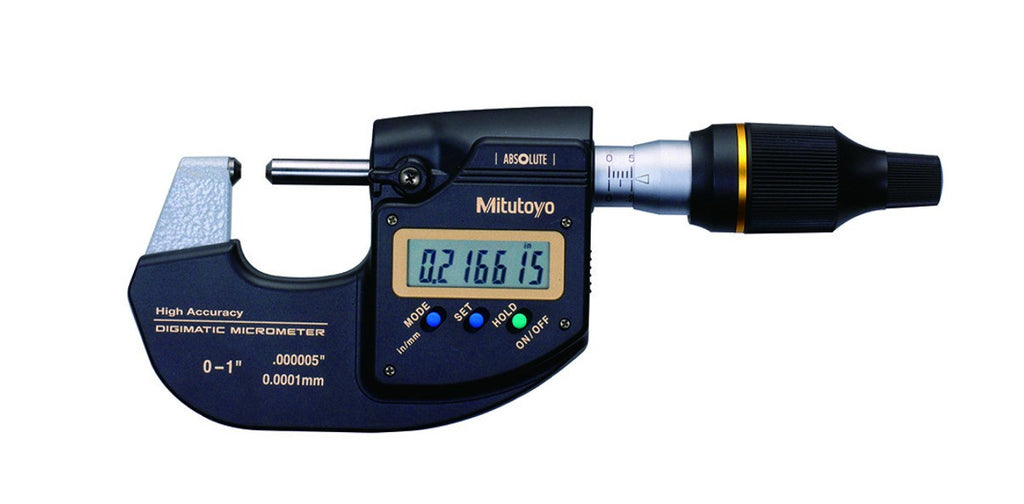

Mitutoyo's High-Accuracy Sub-Micron Digimatic Micrometer

The MDH Micrometer from Mitutoyo enables 0.000005" / 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a handheld tool.

A highly rigid frame and high-performance constant-force mechanism enable more stable measurements, while the clicks emitted while the workpiece is being measured assure the operator that measurement is proceeding normally.

Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.

The ABS (absolute) rotary sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring right away. With no possibility of overspeed errors, the High-Accuracy Digimatic Micrometer also delivers a high level of reliability.

 Mitutoyo High Accuracy Micrometer Brochure... Click Here
