QUICK SCOPE QS-L
Height measurement now included on a single platform!
High-intensity 4-quadrant LED ring light generates shadows to highlight edges that otherwise would be difficult to see. High-speed height measurement capability is now standard.
Measurements previously requiring additional use of an indicator or stylus are now integrated into one machine.
Reliable small part measurement!
High-speed 7X optical zoom with an interchangeable objective lens unit provides sharp and bright images. Measures details more clearly than a digital zoom.
Highlights hard-to-see edges

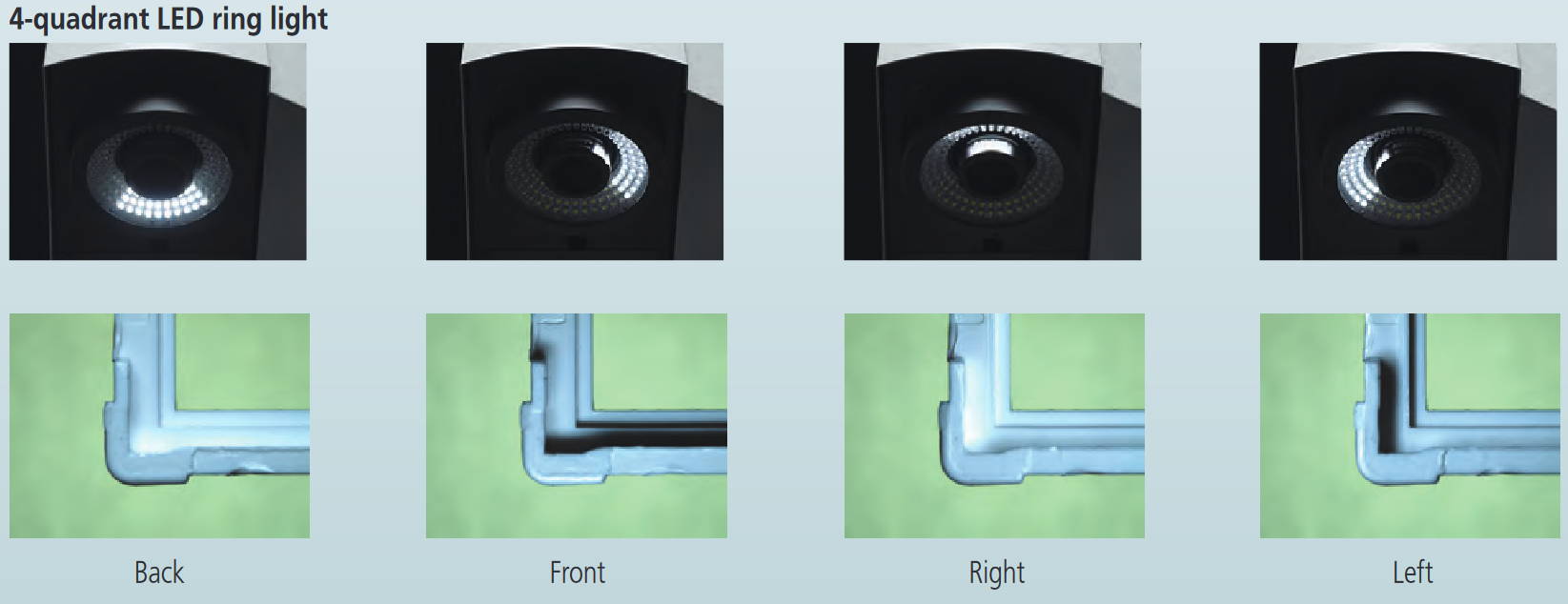

High-intensity 4-quadrant LED ring light generates shadows to highlight edges that otherwise would be difficult to see.
Precise + Effective + Absolute
Difficult to measure reliably using regular microscope lighting.
Some edges cannot be accurately detected and captured when only using the ring light as edge height and shape are so variable.

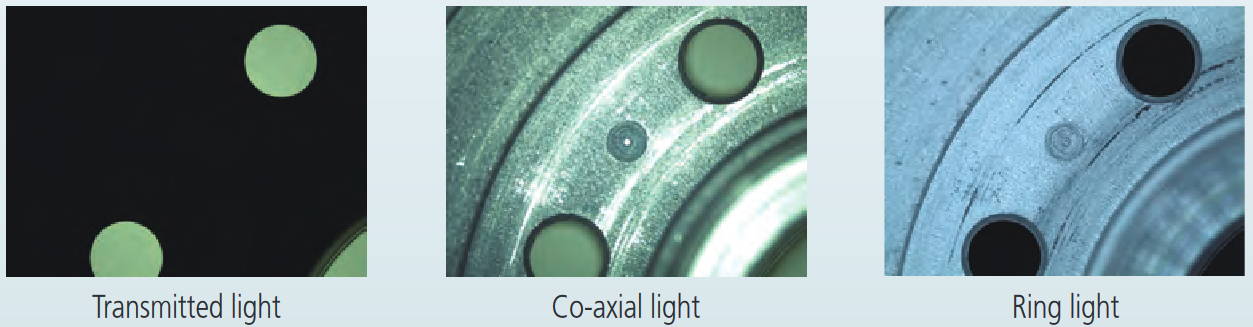

Edge measurement using a combination of co-axial light, ring light and transmitted light.
Cannot measure minute dimensions due to low magnification
Some small forms cannot be measured only using digital zoom.
Measurement of the width of micro-recessed-forms cannot be accurately performed due to low magnification
7X optical zoom unit with interchangeable objective lenses improves small part measurements.
Edge measurement of a stepped feature cannot be performed correctly.
It's difficult to detect edges with low magnification and large depth of focus.
Edges can easily be captured with the interchangeable objective lenses.
Height measurement results are not stable.
Height measurement with a contact probe is not reliable.
Image auto focus function is standard equipment.
Image auto focus offers highly accurate height measurement with minimal workpiece clamping.
Could give customers unreliable measurement results.
Mitutoyo provides inspection/calibration services using reference instruments that are traceable to NIST
7X optical zoom with interchangeable objective lenses
OFFERS RELIABLE SMALL PARTS MEASUREMENT
Newly designed 7X optical zoom with interchangeable objective lenses securely captures measurement targets from wide-field to micro form. In addition, 4X digital zoom is available using software.

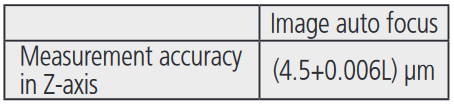

High-speed image auto focus
ENABLES HIGHLY ACCURATE HEIGHT MEASUREMENT

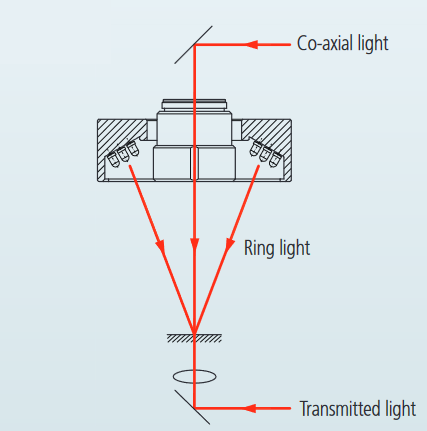

LED light unit
offers many options for reliable edge measuremenT
Lighting tool (Contrast and brightness)
The lighting tool offers automatic light intensity to maintain constant brightness and eliminates inaccurate measurements caused by lighting conditions.
QSPak software enables easy operation and reliablE MEASUREMENT
Large screen makes detailed operations easy
All the functions needed for measurement are displayed on one screen; measurement can be performed by simply moving the mouse. Large images enable users to measure details with ease.
Many commands enable fast measurement
A wide choice of commands including various distance and intersection point measurements enables easy and reliable measurement.
Eliminates confusion between results and points
Since results are displayed on the camera image, confusion from numeric-only results are eliminated.
One-click edge detection
Circles, lines and locations around the measurement point can be output instantly with a single mouse click.
Detection tools matched to targets
Detection tools can be selected based on feature in order to capture edges with high accuracy.
User-friendly operation
When a command is selected, instructions are displayed on the screen.
Remove influence from chips and burrs
BY EXCLUDING POINT ANOMALIES
Template function
Identifies desired measuring points quickly
Multiple measurement runs can easily be combined
8 Manual Vision Measuring Machine with Motorized Z-axis QS-L/AFC
External dimensions
Unit: mm 25.4mm = 1"
Option
Turntable with fine adjustment (A), (B)
Holder with clamp
V-block with clamp
Swivel center support
* Adapter B (176-310) is separately required for size 2010.
* Adapter B (176-304) is separately required for size 3017 and 4020.
Opti-fix
The modular clamping system opti-fix has been developed
especially for optical coordinate measuring systems.
Stage adapter
Stage adapter B
Optional software
FORMTRACEPAK-AP
Geometric tolerance, contour evaluation, and dimensional analysis can be performed on the data obtained using the Quick Scope.
MeasurLink® Real-Time Professional
MeasurLink® Real-Time is Statistical Process Control (SPC) software that displays statistical results. This includes control charts, histograms, and process capability indicies in real time based on data collected using the Quick Scope. The software helps prevent scrap by tracking feature variations, so actions can be taken early in a process to prevent products being made outside of their tolerance limits
QS-CAD I/F
• Shows the current observation point corresponding to stage position
• Can extract design information from graphic elements and skip manual input during verification
• Outputing measurement results as CAD data is available
Traceability
Traceability to the national standard of length
Mitutoyo owns standard scales that are traceable to the national standard of length and are used to calibrate the reference gages used for calibration of measuring instruments, thus establishing and maintaining traceability for each instrument.
