02AGD680 Mitutoyo Laser Scan Micrometer Adjustable V-Blocks

Mitutoyo

02AGD680 Mitutoyo Laser Scan Micrometer Adjustable V-Blocks

$ 3,287.00 $ 3,460.00

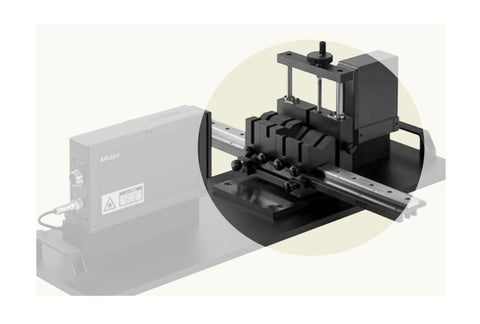

Mitutoyo Laser Scan Micrometer Adjustable Workstage & V-Blocks

For use with Mitutoyo's Benchtop Laser Scan Micrometer model LSM-9506.

Aids in measuring workpiece diameter by means of up / down and right / left slide adjustments.

Optimum for quality control of precision shafts, rollers, pin gages, etc...

Specifications include...

  • 300mm (11.81") Horizontal Adjustment
  • 45mm (1.77") Vertical Adjustment
  • Maximum Table Loading: 5.0kg (11 lbs)
  • Mass: 4.8kg (10.56 lbs)

V-Blocks included...

  • 2 pcs of 02AGD550
    • 2.36" Max OD
    • 1.54" Tall
    • 1.97" Wide
  • 1 pc of 02AGD560
    • 2.36" Max OD
    • 1.77" Tall
    • 1.97" Wide
  • 1 pc of 02AGD560
    • 2.36" Max OD
    • 1.77" Tall
    • 1.97" Wide
