1.3 MP USB Color Camera

1.3 MP USB Color Camera

  • $ 179.95
  • Save $ 220.05

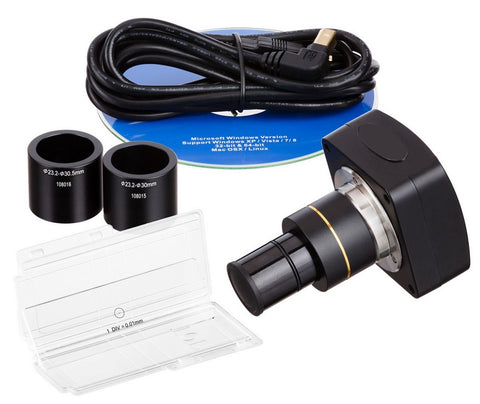

1.3 Megapixel USB Color Digital Camera

This camera system is specially designed for microscopes, making it easy to display live microscope images on your PC.

Included in the package is software that allows you to preview images, record videos, capture still images, edit captured images, and save the images in a variety of different formats. The software also allows you to perform length, angle, area and other measurement functions.

Features include...

  • Image Sensor: 1/3” Color CMOS (Micron)
  • Pixel Size: 3.6 micron x 3.6 micron
  • Hardware Resolution: 1280 x 1024 pixels
  • Imaging Resolution: 1.3 MP
  • File Format: BMP, TIFF, JPG and others
  • Frame Rate: 30 f/s @ 640x480, 15 f/s @ 1280 x 1024 pixels
  • Sensitivity: 1.8V/lux-sec @ 550nm
  • Speed: Low/high adjustable
  • White Balance: Auto/Manual
  • Exposure Time: 1ms to 0.3s
  • Exposure Control: Auto/Manual
  • Scan Mode: Progressive
  • Shutter: Electronic Rolling Shutter
  • S/N Ratio: 40.5 dB
  • Dynamic Range: 60 dB
  • Filter: RGB Bayer Pattern
  • Parameter: Gain (1~40), Gamma (0.1~2.50)
  • Mount: 23mm Photo Port, C & CS-Mount (Ring Adapter Included)
  • Camera Body: Cast Aluminum
  • Power Supply: Via USB 2.0 connector
  • System Required: Windows 2000, XP, Vista or Windows 7 (32 & 64 bits system) with USB 2.0 port
  • Software Calibration Kit
  • One year full-coverage warranty
