10-759-9 Hole Mike Setting Frame 9.00"

10-759-9 Hole Mike Setting Frame 9.00"

  • $ 563.13
  • Save $ 60.73

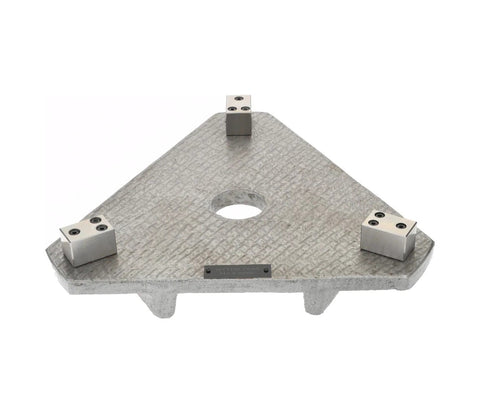

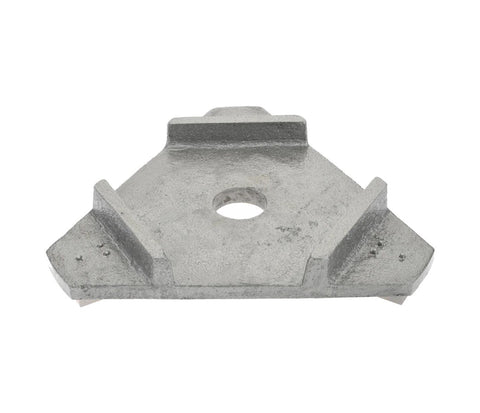

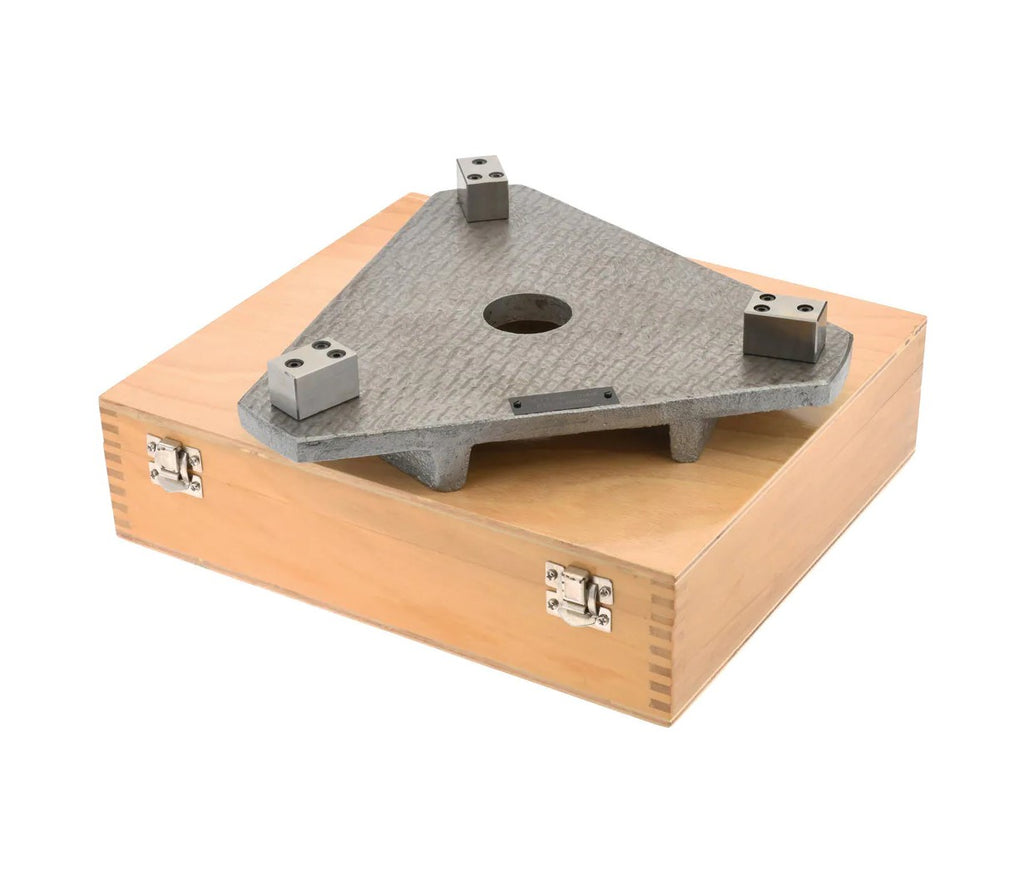

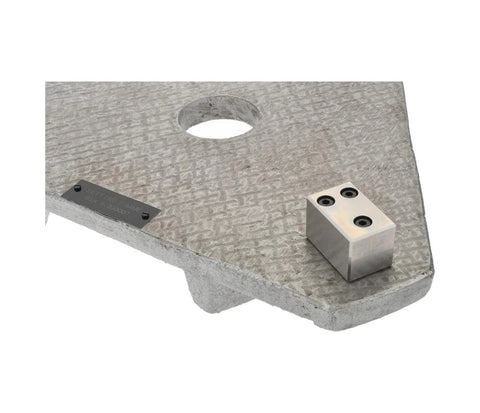

Master Setting Ring - Style Setting Frame

For comparative gaging, calibration and the setting of internal measuring tools.

Specifications include...

  • 9.00" Size
  • + 0.00019" Accuracy
  • 0.000055" Taper / Ovality

Features include...

  • Made from oil hardened non-shrinking steel
  • Hardened and tempered to 62 RC
  • Actual dimensions duly etched
  • Cryogenic treatment for long-term dimensional stability
  • Calibrated at 20º C under standards room conditions

This is a 3-sided Setting Frame, not a Setting Ring.
