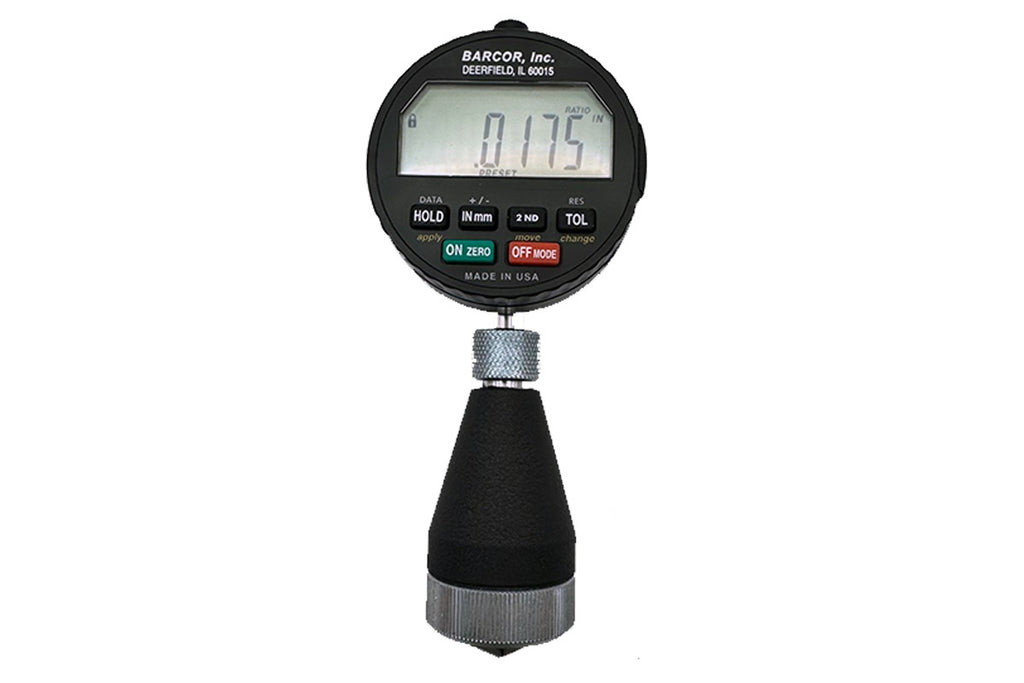

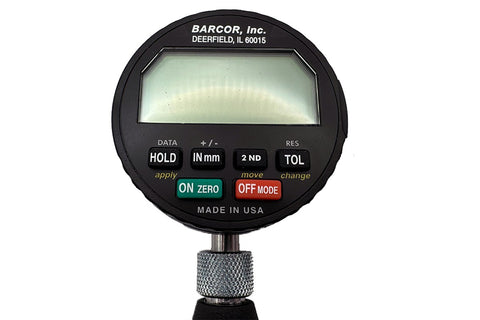

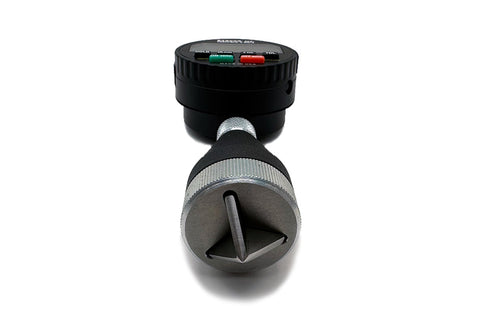

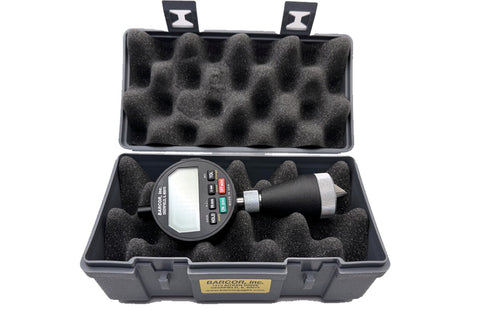

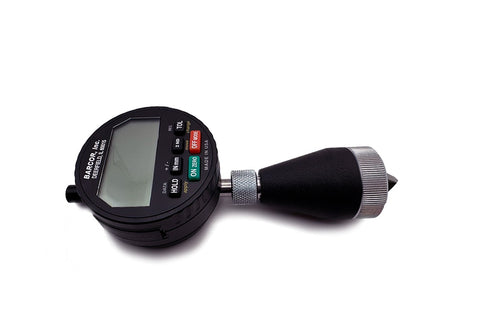

Digital Chamfer Gage The BARCOR Electronic CHAMFER GAGE is a precision instrument designed specifically to measure the top diameter of chamfers, countersinks, center drills, or tapered holes. Simply press the Electronic CHAMFER GAGE’s spring loaded Gaging Plunger into the piece being measured and directly read the size in .0002" or .005mm with the SAME gage. Or, at the press of a button, change to Comparative Mode from a known standard. Features include... 0-90° Chamfer Readings 0.0002" / 0.005mm Resolution Includes Hardened Tool Steel Plunger Please select Capacity from Pulldown Menu. Like BARCOR's well-known mechanical counterpart, the Electronic CHAMFER GAGE requires no Setting Master (Standard) or lookup chart. To “Zero” or “Set” the gage, just press the base against any flat ground surface and press the "on" button. Equipped with rechargeable long-life batteries, the gage may also be powered continuously through its 110 VAC adapter/battery charger or directly from a printer, PC, data collector, etc. Similar in appearance to BARCOR's popular mechanical CHAMFER GAGE, BARCOR'S Electronic CHAMFER GAGE is completely self-contained and fully portable, with no tandem units, attachments, cables or external power required. The Electronic CHAMFER GAGE features a special indicator designed solely for chamfer measurements, based on the geometry of the Gaging Plunger. The indicator’s special 360 Degree rotational bezel allows the user to read in any position. It also features "Inch/Metric" and "Hold" capabilities, and a high contrast, easy-to-read, large, LCD Digital Display, for error-free readings.
