11-960-2 SPI Electronic Height Gage 18"
11-960-2 SPI Electronic Height Gage 18"

11-960-2 SPI Electronic Height Gage 18"

  • Save $ 116.71

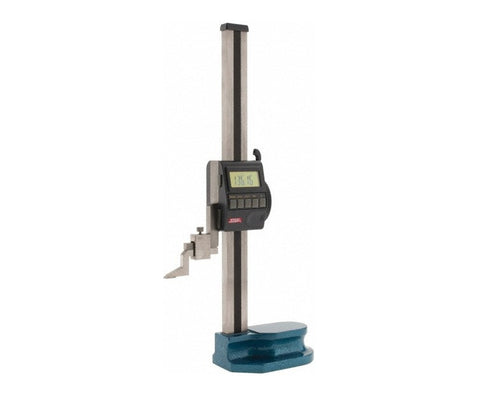

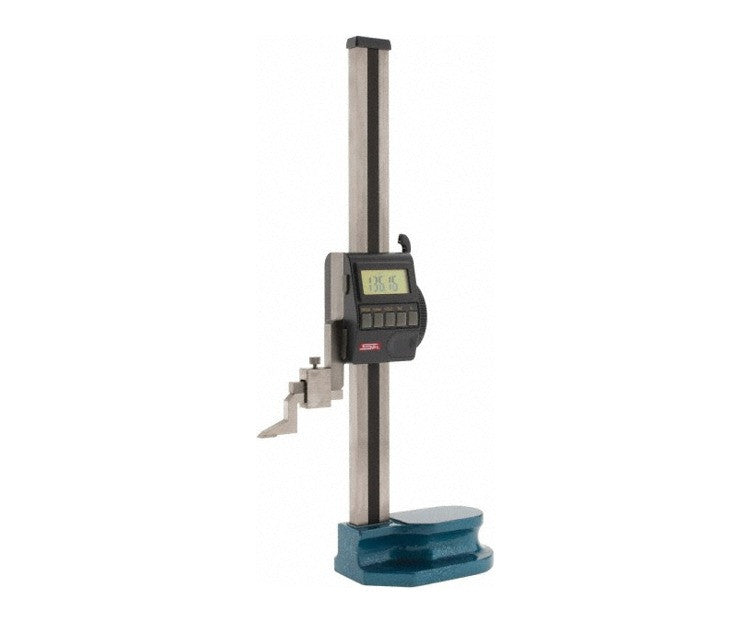

SPI Electronic Height Gage

This Electronic Height Gage allows you the choice of using the included scriber for standard height measurements, or using the included Indicator Holding Bar to use a Digital Indicator for the height measurements with an increased resolution of 0.00005" and increased accuracy of 0.00016".

Features Include...

  • 0-18" / 0-450mm Measuring Range
  • 0.0005" / 0.01mm Resolution with Scriber
  • + 0.002" / + 0.05mm Accuracy with Scriber
  • Inch/Metric conversion at any point
  • Heavy Duty Stainless Steel Beam
  • Zero-setting at any position
  • Carbide tipped scriber
  • Smooth slider wheel
  • Large LCD Display
  • Manual On/Off power
  • Data Cable to connect Indicators included
  • Indicator Holding Bar included

For higher resolution & higher accuracy we recommend using either of the following SPI Digital Indicators...

  • Digital Indicator # 11-965-1
    • 0-.5" / 12.7mm Range
    • 0.00005" / 0.001mm Resolution
    • + 0.00016" / + 0.004mm Accuracy
  • Digital Indicator # 11-966-9
    • 0-1" / 25.4mm Range
    • 0.00005" / 0.001mm Resolution
    • + 0.00020" / + 0.005mm Accuracy
