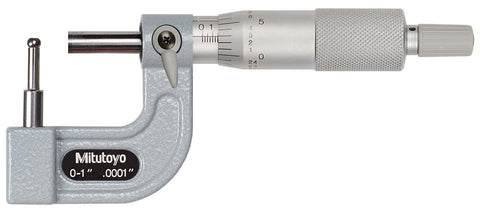

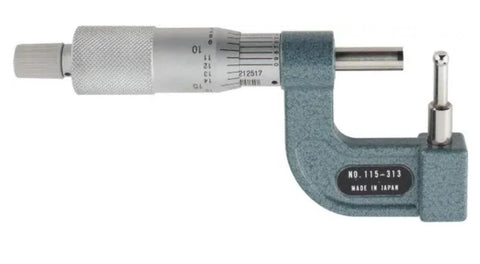

115-313 Mitutoyo Tube Micrometer 0-1"

Mitutoyo

115-313 Mitutoyo Tube Micrometer 0-1"

$ 139.65 $ 147.00


Mitutoyo Tube Micrometer

Designed to measure the wall thickness of various tubing.

Specifications include...

  • 0-1" Measuring Range
  • 0.0001" Graduations
  • + 0.00015" Accuracy

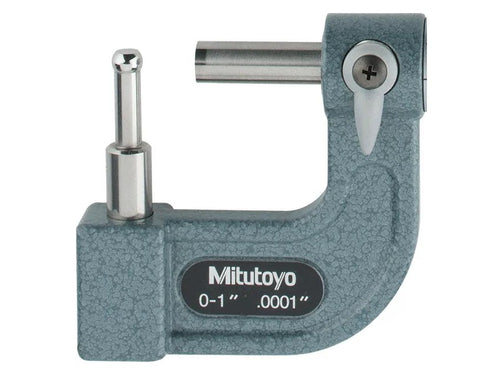

Spherical Post Dimensions...

  • 0.272" Bottom Post Diameter
  • 0.157" Center Post Diameter
  • 0.185" Spherical Ball on Top
  • 0.500" Height of Post from Bottom of Center Post to Centerline of Spherical Ball on Top

Features include...

  • Carbide Tipped Measuring Face
  • Ratchet Stop for constant force

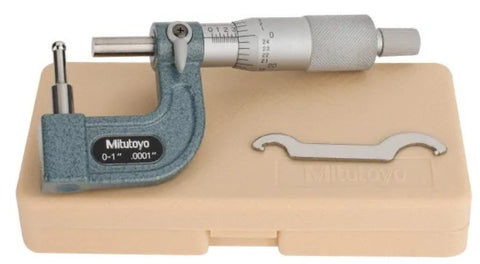

  • Supplied in fitted case
