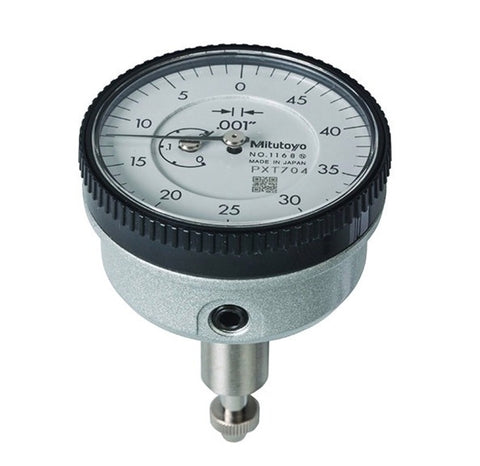

1168T Mitutoyo Back Plunger Indicator .2" Range - .001" Grad

  • $ 134.90
  • Save $ 7.10


Mitutoyo's back plunger type dial indicators are built with the measuring spindles on the back of the units. This type of indicator offers the same precision and durability as all other Mitutoyo dial indicators, and operates very effectively with optional holding bars.

    Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see.

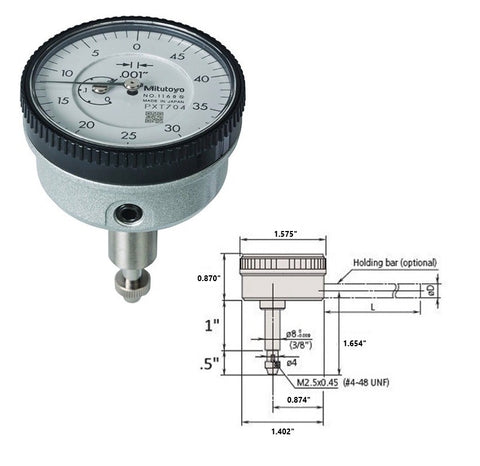

      Specifications include...

      • 0.001" Graduations
      • 0.2" Measuring Range
      • 0.05" Range per Revolution
      • 50-0 Dial Reading
      • +/- .001" Accuracy
