12-395-0 SPI 30° Point Micrometer 0-1", .001" Grad

SPI

12-395-0 SPI 30° Point Micrometer 0-1", .001" Grad

$ 122.10

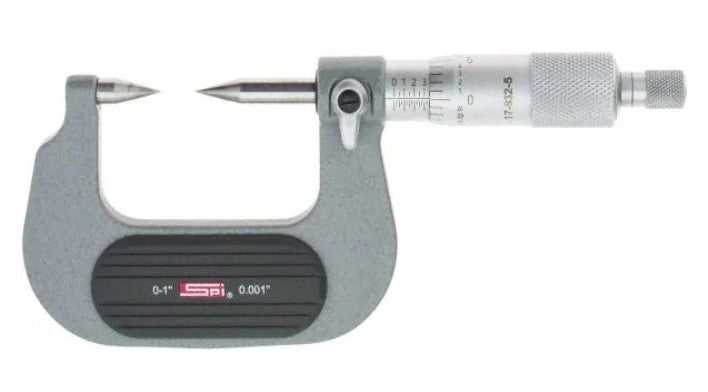

SPI 30° Point Micrometer

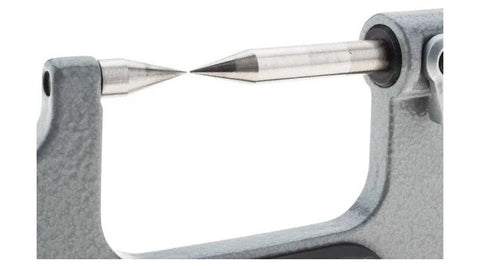

Pointed spindle and anvil (30°) for measuring drill web, grooves, and other hard to reach areas.

Features include...

  • 0-1" Measuring Range
  • 0.001" Graduations
  • 0.00016" Accuracy
  • Carbide tipped measuring faces
  • Satin chrome barrel and thimble
  • Point radius approx. 0.012"
  • Spindle Diameter: 0.250"
  • Painted frame with heat shield

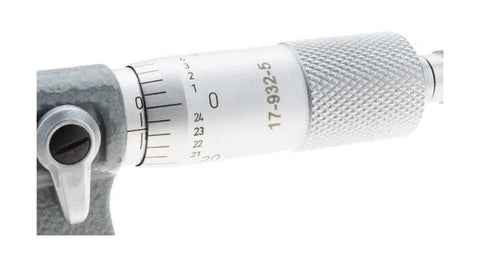

  • Ratchet thimble
  • Lever lock
  • Certificate of Calibration Traceable to NIST

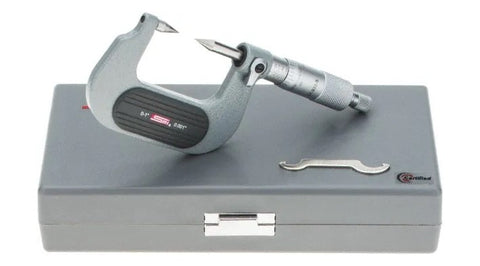

  • Furnished in fitted case
