12-457-8 SPI Spline Micrometer 0-1"

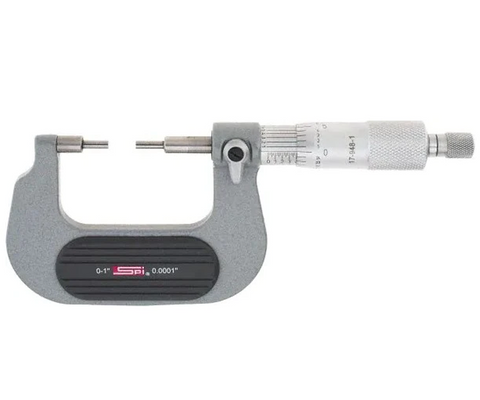

SPI Spline Micrometer

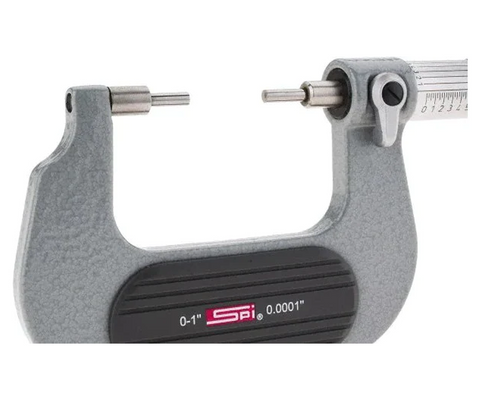

Anvil and spindle have a small diameter for measuring splined shafts, slots and keyways.

Features include...

• 0-1" Measuring Range
• 0.0001" Graduation
• 0.00016" Accuracy
• 0.250" Spindle Diameter
• Measuring Faces: 0.118" Diameter x 0.200" Length

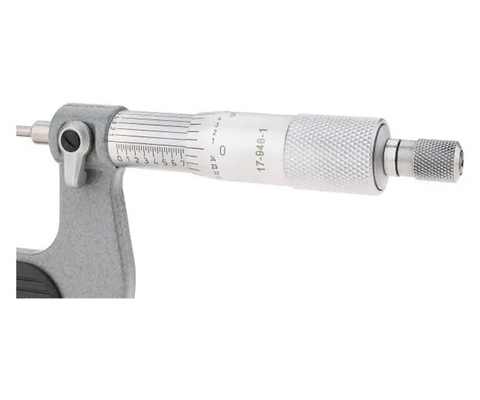

• Ratchet Thimble
• Lever Lock
• Certificate of Calibration Traceable to NIST

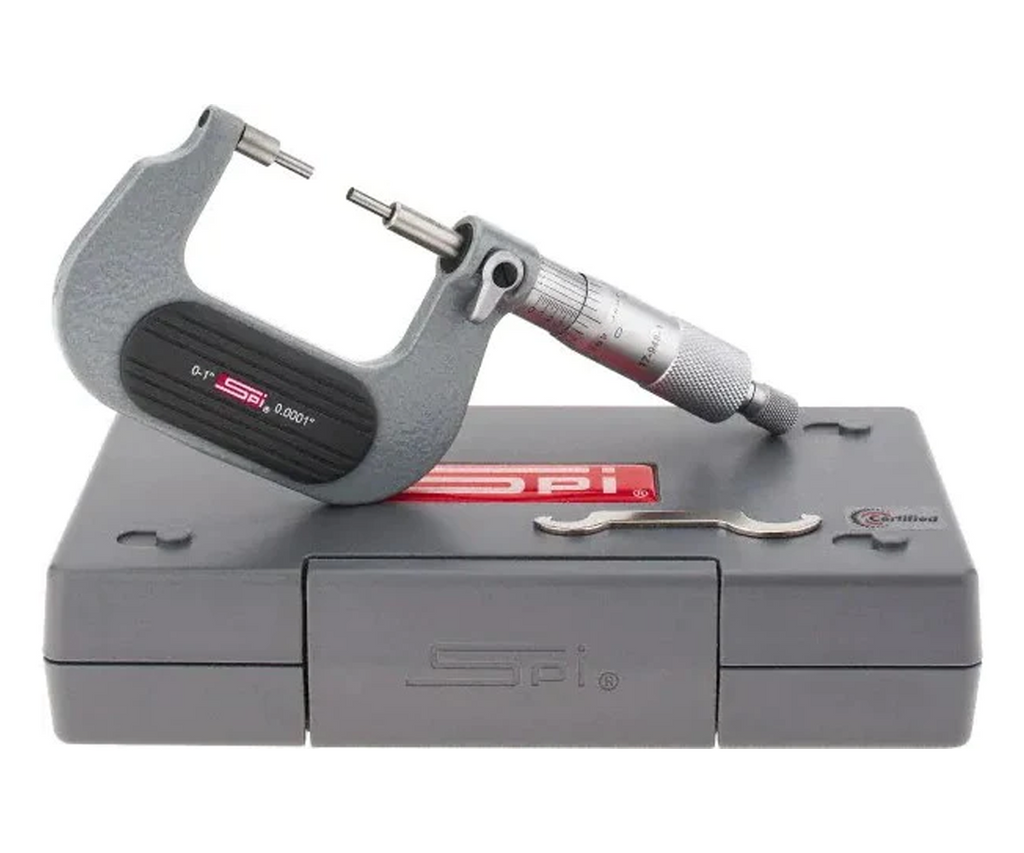

• Furnished in fitted case
