12-470-1 SPI Micrometer Anvil Set
SPI Micrometer Anvil Set
Features include...
- 7 slip-on pieces
- Held on with own reinforced neoprene boots.
- Measure hard to reach places and odd workpieces. (Shoulders, webs, slots, grooves, etc.).
- All anvil attachments other than ball, subtract 0.500" from total reading.
- Subtract 0.175" for ball.
- Furnished in a plastic case

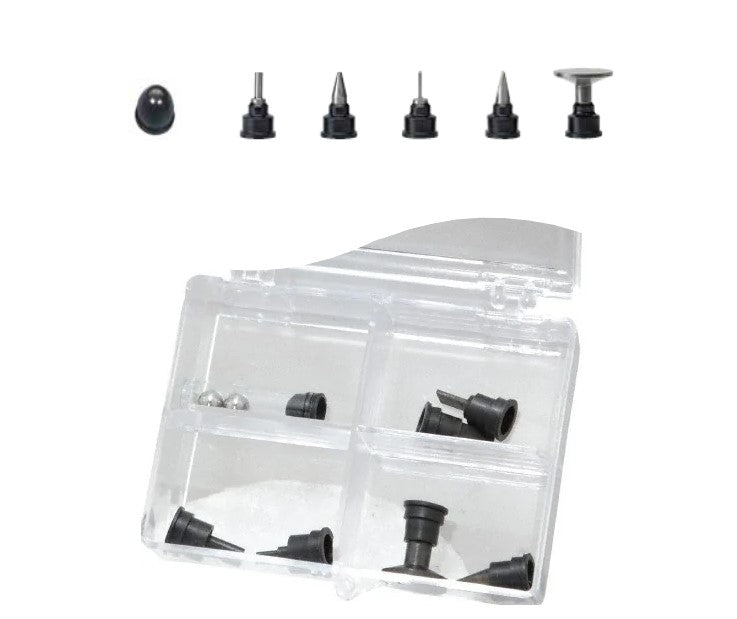

Anvils include...
- Spline Anvil: 0.100"
- Knife Anvil: 30° Angle
- Super Spline Anvil: 0.050" Face
- Blade Anvil: 0.300" Thick
- Comparator Anvil: 30° Point
- Disk Anvil: 0.500" Face
- Ball Attachment Anvil: 0.200" Diameter
