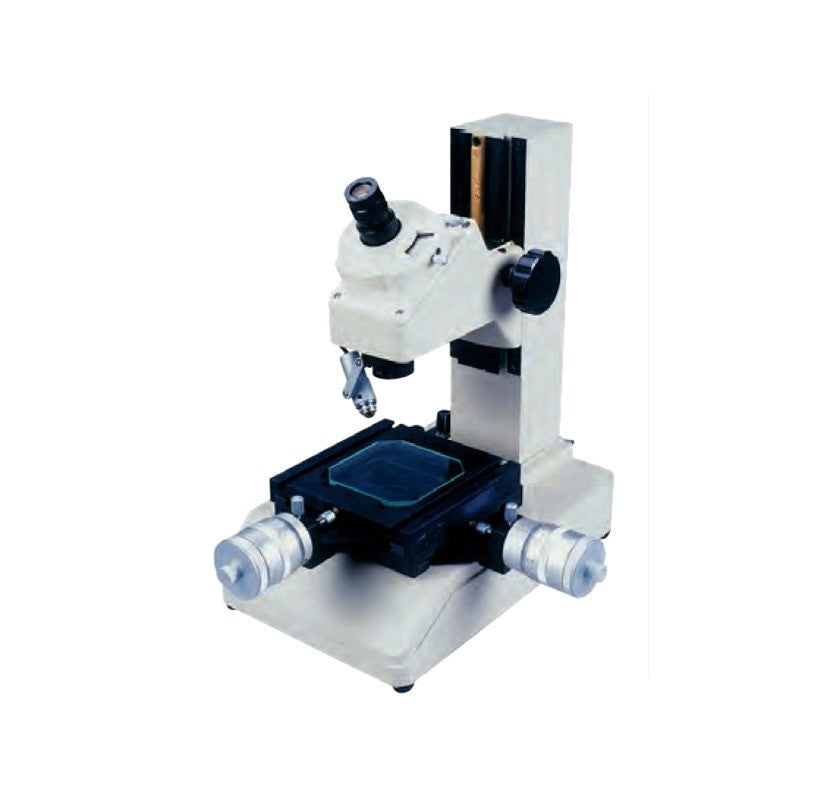

12-503-9 SPI Toolmaker's Microscope
2" x 2" Stage w/Dial Mic Heads
- 15X Eyepiece Lens & 2X Objective Lens
- 90 degree broken cross-hair reticle
- 67mm working distance
- Crossed roller bearings and keyway stage construction ensure a true linear traverse in X and Y axis.
- Large dovetail assures 2 axis squareness in relation to the stage surface.
- The Eyepiece protractor is graduated in 1 degree.
- The eyepiece and angle can be measured in 6 minutes.
Features of the Micrometer Heads...
- 1" Measuring Range
- Bi-directional graduation for versatile measurement.
- Provided with non-rotation spindle tip.
- Floating thimble allows zero setting at any spindle position.
- Graduations: 0.0001"
