12-526-0 SPI Optical Comparator 12"

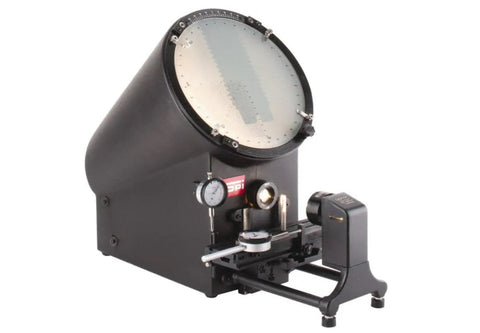

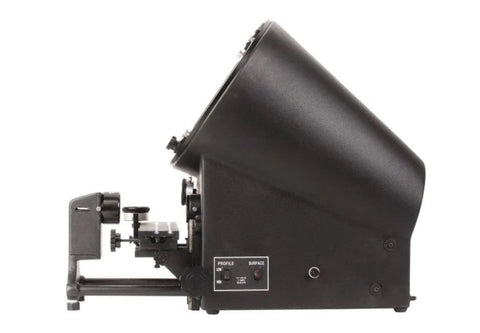

SPI 12" Optical Comparator
This Horizontal Comparator, or Profile Projector, is used with heavy parts or with shapes that require being in a fixed position. A light is projected horizontally onto the workpiece, and the profile shadow of the part is then projected onto the screen.
Complete package includes the following...
- 10X, 20X, & 40X Lenses
- 2 Dial Indicators

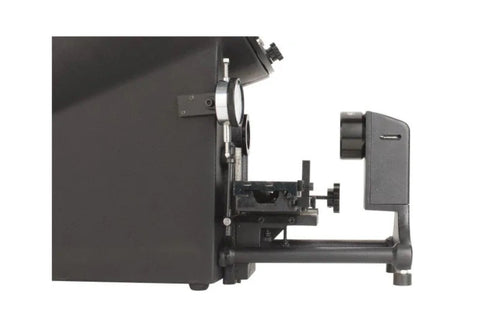

- 12" x 3" T-Slot Stage
- 6" x 2.5" travel

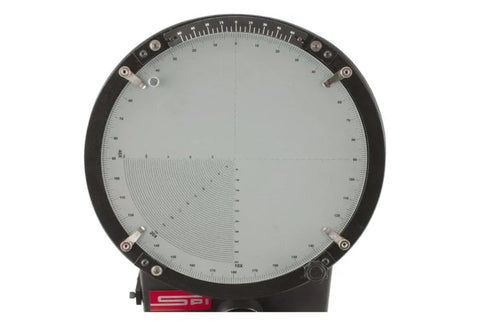

- 12" Diameter Screen
- Rotatable screen with fine adjustment
- High & Low intensity profile illumination switch
