17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert
17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert
17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert
17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert
17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert

17-624-8 Electronic Internal Micrometer .800" - 1.00" w/Cert

  • Save $ 205.71

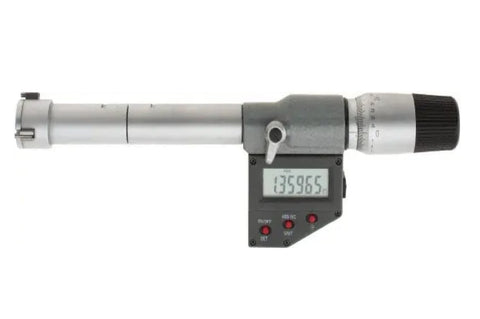

SPI Electronic Internal 3-Point Micrometer

Specifications include...

  • 0.800" - 1.000" Measuring Range
  • 0.00005" / 0.001mm Resolution
  • 0.00016" Accuracy
  • 4.125" Measuring Depth
  • 0.020" Distance from Bottom of Bore
  • 6.00" Extension Rod Included

Features include...

  • Self Centering 3 contacts points for accurate measurement of internal diameters.
  • Measurement can be taken close to the bottom of a blind bore, can also be taken in a deep bore with extension rod.
  • Inc./abs./inch/metric measuring
  • Carbide tipped contact points.

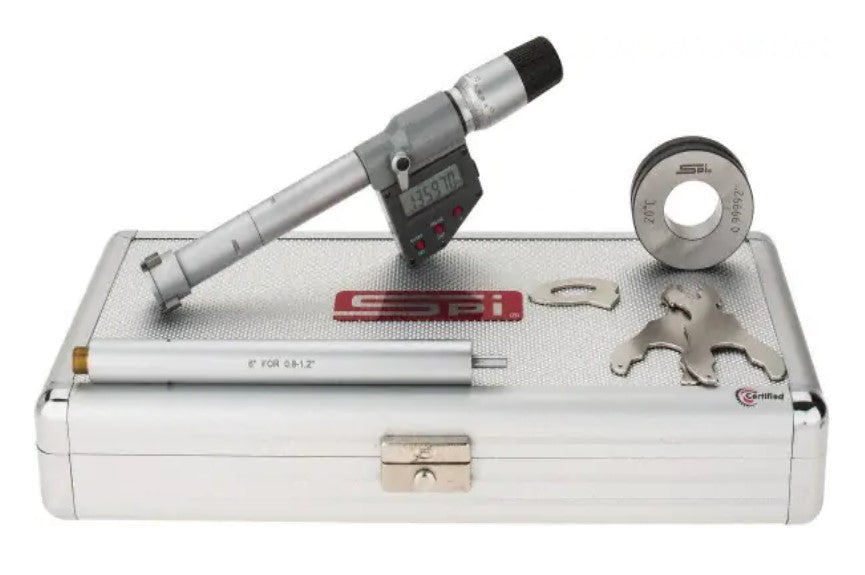

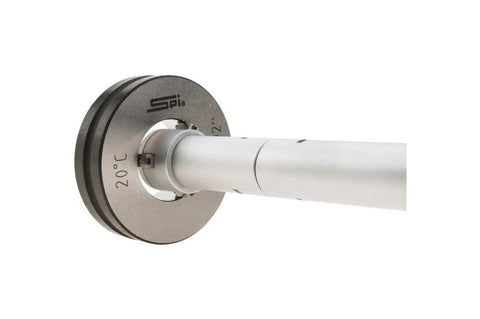

  • Supplied with setting ring and extension rod
  • Protection level IP54
  • Ratchet thimble
  • Certificate of calibration
  • Furnished in fitted aluminum attache.
