13-980-8 Electronic Bore Gage .24" - .4"

13-980-8 Electronic Bore Gage .24" - .4"

  • $ 197.75
  • Save $ 117.81


SPI Electronic Bore Gage

2 Point Measurement System with precision wheel guides for self-centering.

Specifications include...

  • 0.24" - 0.4" Measuring Range
  • 0.00005" / 0.001mm Resolution
  • 2" Probe Depth
  • 9 Anvils

Features include...

  • Close tolerance inspection of bores for size, roundness, ovality, and taper.
  • Electronic indicator is fully protected by rugged cover to minimize potential shock in the machine shop environment.
  • 2 point measurement with precision wheel guides for self centering.
  • Various anvil sizes are provided in each set to achieve desired measurement range. Spacers also included for fine adjustments.
  • Zero setting with plain ring gage or micrometer.
  • SPC data output port.
  • Resolution: 0.00005"/0.001 mm
  • Inc./abs/inch/metric measuring.
  • Auto shut off.

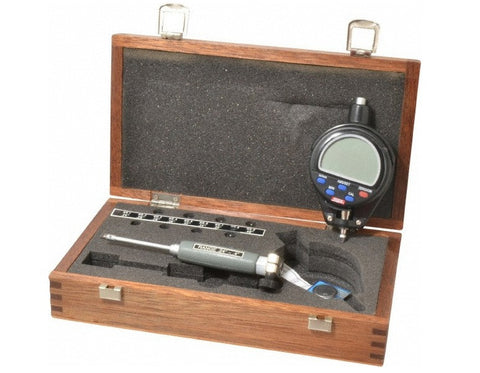

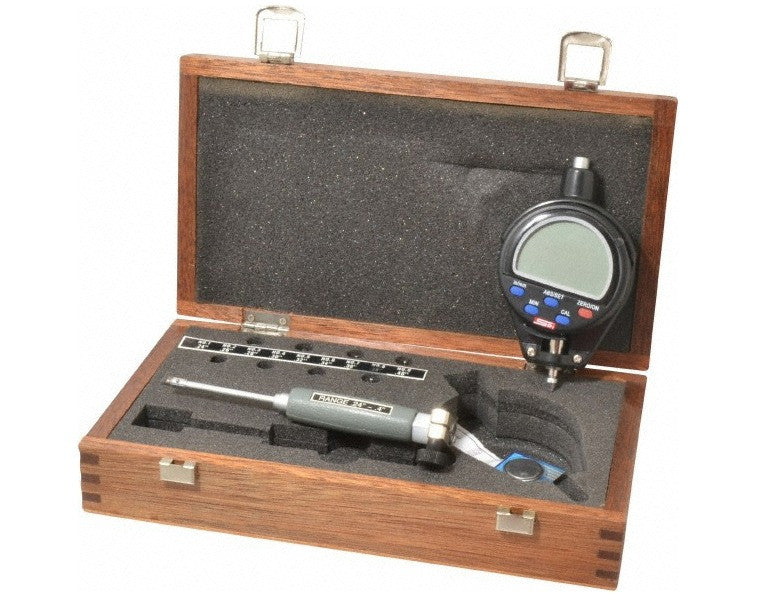

  • Furnished in fitted case
