15-540-8 SPI Optical Comparator 13.3" x 6"

15-540-8 SPI Optical Comparator 13.3" x 6"

  • $ 9,580.77
  • Save $ 684.34

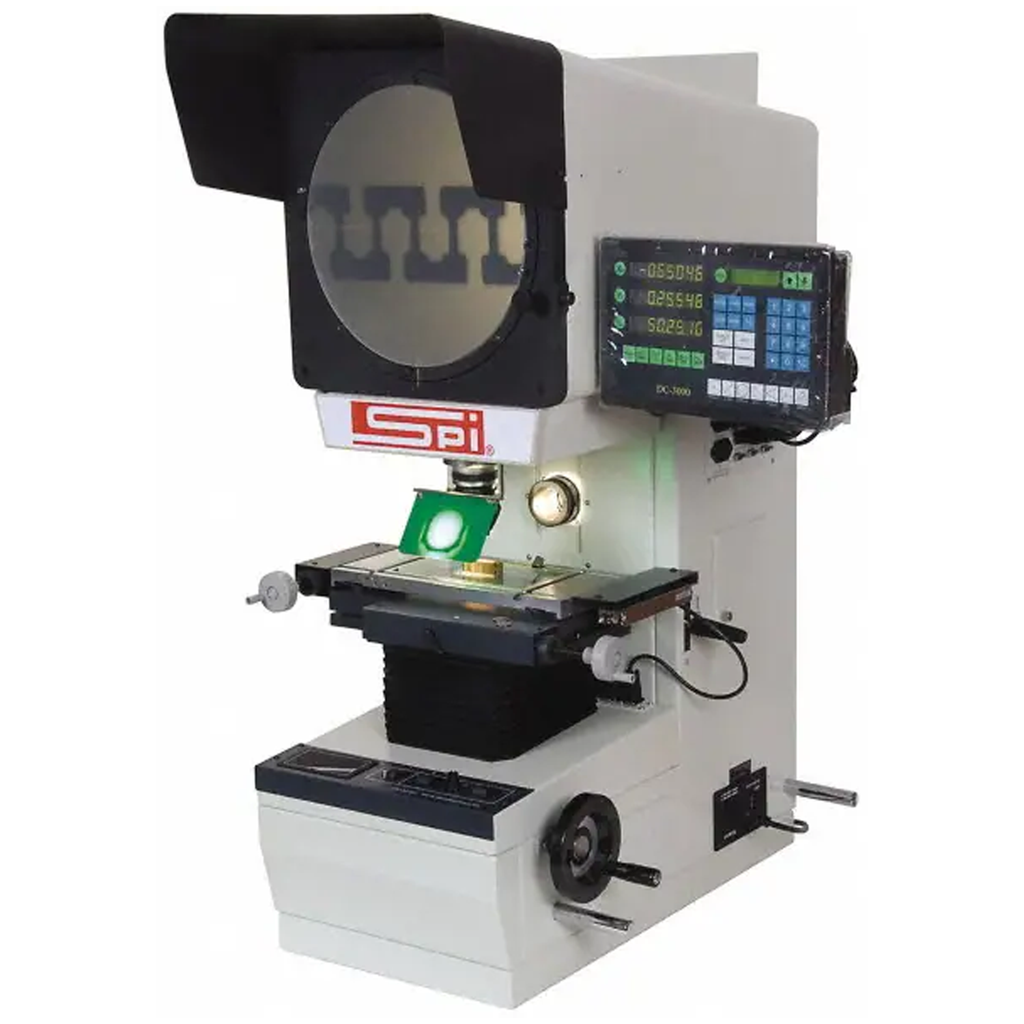

SPI Vertical Optical Comparator

Inspect your parts with surface and / or profile illumination. This Optical Comparator is built with solid, stable steel construction. The X-Y table positioning is done with ball screws (0.1" / rev), also with quick disconnect for fast positioning. The excellent quality optical system provides clear images and accurate magnifications.

Specifications include...

  • 13.3" x 5.9" Table
  • 6.8" x 3.9" Glass Stage
  • Stage Travel
    • 5.9" X-Axis
    • 2.0" Y-Axis
    • 3.5" Z-Axis
  • Measuring Accuracy: 4.0+L/25 um: L=measuring length
  • Resolution (X/Y axis): 0.0004" / 0.001mm, 0.00002" / 0.0005mm

Features include...

  • 10X magnification
  • 12" Diameter Screen
    • Includes Crosshair, 30°, 45°, 60° lines for quick angle checking.
