15-541-6 SPI Optical Comparator 16" x 9"

15-541-6 SPI Optical Comparator 16" x 9"

  • $ 12,320.08
  • Save $ 879.92

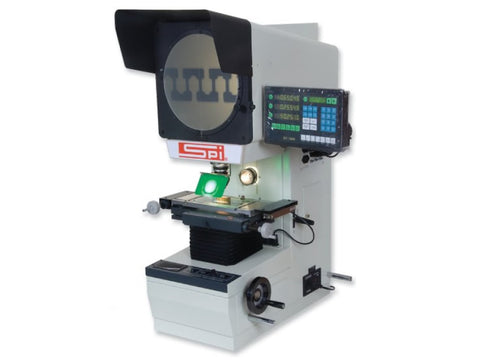

SPI Vertical Optical Comparator

Inspect your parts with surface and / or profile illumination. This Optical Comparator is built with solid, stable steel construction. The X-Y table positioning is done with ball screws (0.1" / rev), also with quick disconnect for fast positioning. The excellent quality optical system provides clear images and accurate magnifications.

Specifications include...

  • 15.9" x 8.9" Table
  • 10.2" x 6.3" Glass Stage
  • Stage Travel
    • 7.8" X-Axis
    • 3.9" Y-Axis
    • 3.5" Z-Axis
  • Measuring Accuracy: 4.0+L/25 um: L=measuring length
  • Resolution (X/Y axis): 0.0004" / 0.001mm, 0.00002" / 0.0005mm

Features include...

  • 10X magnification
  • 12" Diameter Screen
    • Includes Crosshair, 30°, 45°, 60° lines for quick angle checking.
