178-296 Mitutoyo SJ-210 and SJ-310 Low Force Detector
Mitutoyo Surface Roughness Low Force Detector
The Mitutoyo Surface Roughness Tester models SJ-210 & SJ-310 are both available in 2 different models, the Standard Force model and the Low Force model.
- The Standard Force model uses 4mN measuring force during the measurement.
- The Low Force model uses 0.75mN measuring force during the measurement.

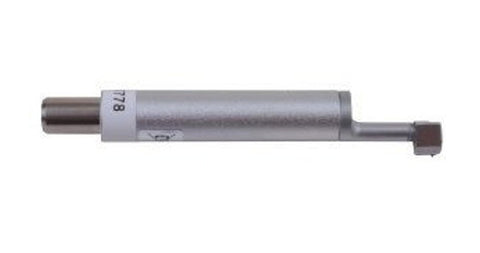

This is a Standard Detector for the Low Force models, using only 0.75mN measuring Force.
- 0.75mN Measuring Force
- Stylus Profile: 2μmR Tip Radius
- 60° Tip Angle
