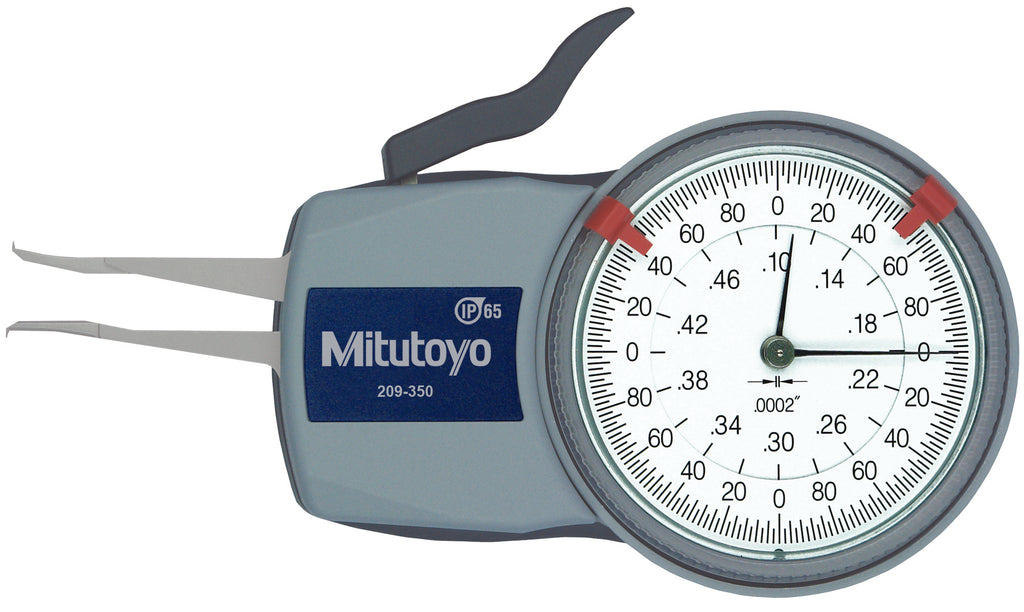

Mitutoyo Internal Dial Caliper-Type Gage

For checking internal bores, recess diameters and grooves.

Features include...

• 0.10" - 0.50" Measuring Range
• 0.0002" Graduations
• +0.0008" Accuracy
• Max Measuring Depth: 0.47"
• Max Groove Depth: 0.027"
• Minimum Groove Width: 0.032"
• Contact Points 0.1 Radius
• Spring loaded opening
• Press Button for closing arms. Arms automatically open when button is released
• Unit is spring-loaded and makes point contact at constant measuring pressure
