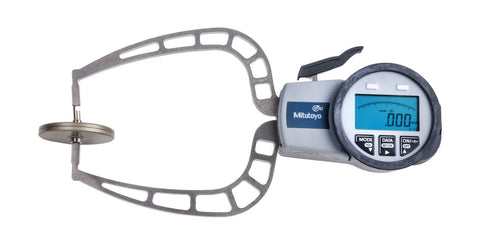

209-953 Mitutoyo Thickness Gage 1.18" Range, 4.58" Reach

Mitutoyo Thickness Caliper-Type Gage

Mitutoyo's versatile OD measuring gage for hole diameters, groove thickness, tube thickness, and hard to reach dimensions.

Features include...

• 0-1.18" / 30mm Measuring Range
• 0.001" / 0.02mm Resolution
• 0.002" / 0.04mm Accuracy
• 4.58" / 116mm Max Measuring Depth - Reach
• 1.42" Upper Contact Point Length
• 0.94" Lower Contact Point Length
• 1.97" / 50mm Diameter Disc Upper & Lower Contact Points

This model used to be Mitutoyo # 209-915.
