293-130-10-IP Mitutoyo Hi Resolution Micrometer to USB Package, 0-1

293-130-10-IP Mitutoyo Hi Resolution Micrometer to USB Package, 0-1" Range, .00005" Resolution

$ 2,159.35$ 2,051.38

Customer Reviews

Product Description

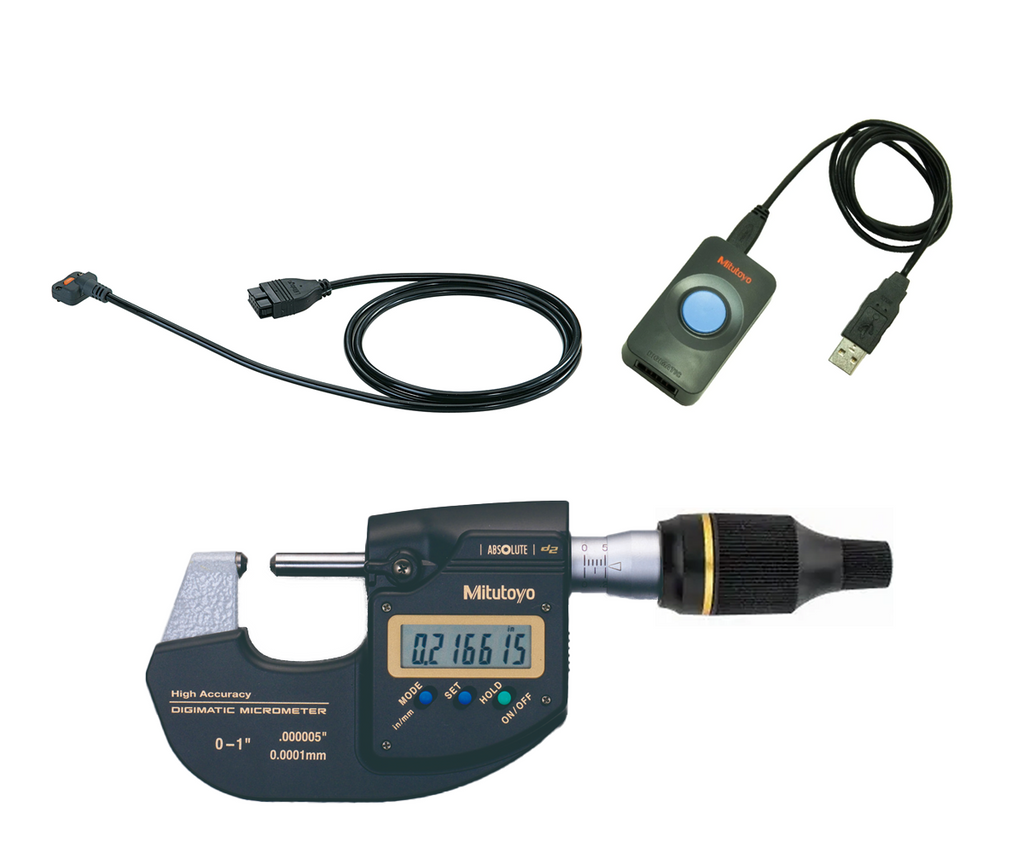

Mitutoyo's Hi Resolution Micrometer to USB Direct Package

This package provides all of the items required to be able to measure your products with a Mitutoyo Hi-Resolution 0-1" Digital Micrometer, and then send the measured data to a PC through a USB port.

The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

Includes the World's first 5uinch / 0.1um Resolution Micrometer!

This micrometer is ideal for customers who need accurate measurements with a hand-held tool.

This High-Accuracy Digimatic Micrometer utilizes Mitutoyo's innovative 0.1um resolution ABS rotary sensor and high accuracy screw machining technology to reduce the instrumental error to ?ñ0.5um, delivering higher accuracy without sacrificing operability.

A highly rigid frame and high-performance constant-force mechanism enable more stable measurements, while the clicks emitted while the workpiece is being measured assure the operator that measurement is proceeding normally.

Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.

The ABS (absolute) rotary sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring right away. With no possibility of overspeed errors, the High-Accuracy Digimatic Micrometer also delivers a high level of reliability.

?ÿ

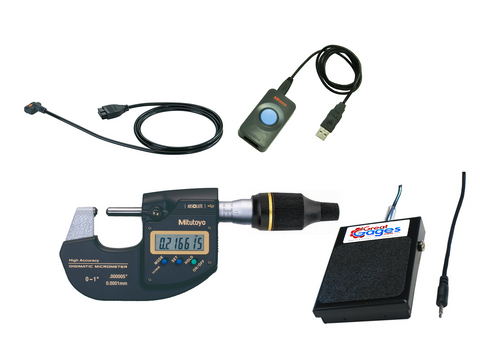

Complete package includes the following...

Mitutoyo 0-1" Hi Resolution Digital Micrometer w/SPC Output

Specifications include...

    • 0-1" / 0-25.4mm Measuring Range
    • Selectable Resolutions...
      • .000005" / 0.00002"
      • 0.0001mm / 0.0005mm
    • + .00002" Accuracy

Features include...

    • Using precision digital measuring tools together with a USB input tool improves both measurement results and data reliability. The latest version of digimatic output allows output to a resolution of 1 millionths of an inch. The high-accuracy MDH with 5 millionths resolution can be output in its entirety in both inch and metric. Resulting data can be input directly to Excel, MeasurLink or other SPC programs.
    • The ABS (absolute) rotary sensor eliminates the need to perform origin setting each time the power is turned on, allowing you to start measuring right away. With no possibility of overspeed errors, the high-accuracy digimatic micrometer delivers a higher level of reliability.
Mitutoyo USB Data Input Tool Gage Interface
  • This device uses your computer's USB connection to make data collection easy. This is a Single Gage Interface device that connects directly to your PC's USB port. Microsoft Windows will recognize this device as a 2nd keyboard, allowing you to import data from your gage directly into ANY Windows-based software you want. Wherever you would be typing in data is where the incoming data from your gage will be placed.

Mitutoyo 2m Interface Cable Type B

  • This 2 meter data cable from Mitutoyo is designed for transferring measurements from compatible Mitutoyo digital micrometers to a computer or data collection device. It features a 10-pin Mitutoyo Digimatic connector on one end to interface with the micrometer. The other end has a waterproof B-type connector with an output button to connect to the data collection device. With this cable, users can transmit micrometer measurements directly to software, eliminating the need for manual data entry.?ÿ

    Footswitch. (Optional)

    • Used on floor as footswitch or on the tabletop as a palmswitch. With a cable about 4.5ft long.

    ?ÿ

    PACKAGE CAN BE ORDERED WITH OR WITHOUT A FOOTSWITCH.
