This package provides all of the items required to be able to measure your products with a Mitutoyo Hi-Resolution 0-1" Digital Micrometer, and then send the measured data to a PC through a USB port.
The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.
Works great with MS Word, Excel..., even SPC software packages.Includes the World's first 5uinch / 0.1um Resolution Micrometer!
This micrometer is ideal for customers who need accurate measurements with a hand-held tool.
This High-Accuracy Digimatic Micrometer utilizes Mitutoyo's innovative 0.1um resolution ABS rotary sensor and high accuracy screw machining technology to reduce the instrumental error to ±0.5um, delivering higher accuracy without sacrificing operability.
A highly rigid frame and high-performance constant-force mechanism enable more stable measurements, while the clicks emitted while the workpiece is being measured assure the operator that measurement is proceeding normally.
Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.
The ABS (absolute) rotary sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring right away. With no possibility of overspeed errors, the High-Accuracy Digimatic Micrometer also delivers a high level of reliability.

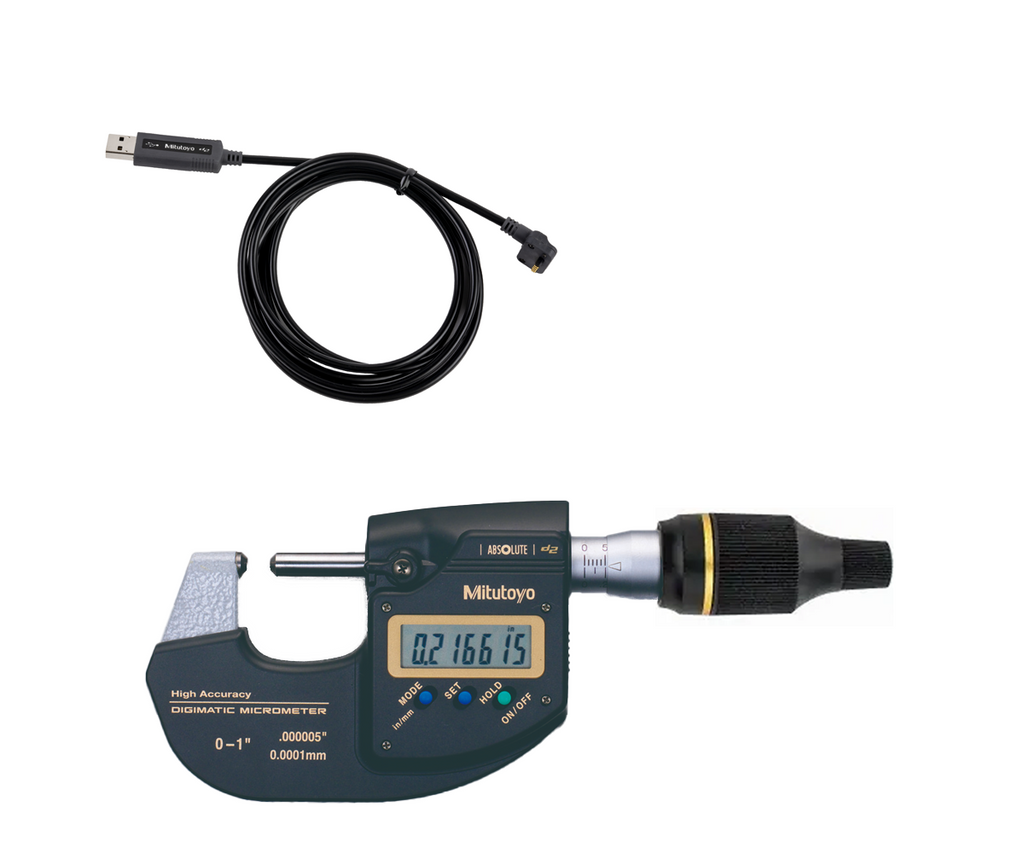

Mitutoyo 0-1" Hi Resolution Digital Micrometer w/SPC Output
Mitutoyo 2m Interface Cable Type B
