293-182-30-USB Mitutoyo QuantuMike Micrometer to USB Direct Package, 2-3

293-182-30-USB Mitutoyo QuantuMike Micrometer to USB Direct Package, 2-3" Range, .00005" Resolution

$ 648.00$ 540.72

Customer Reviews

Product Description

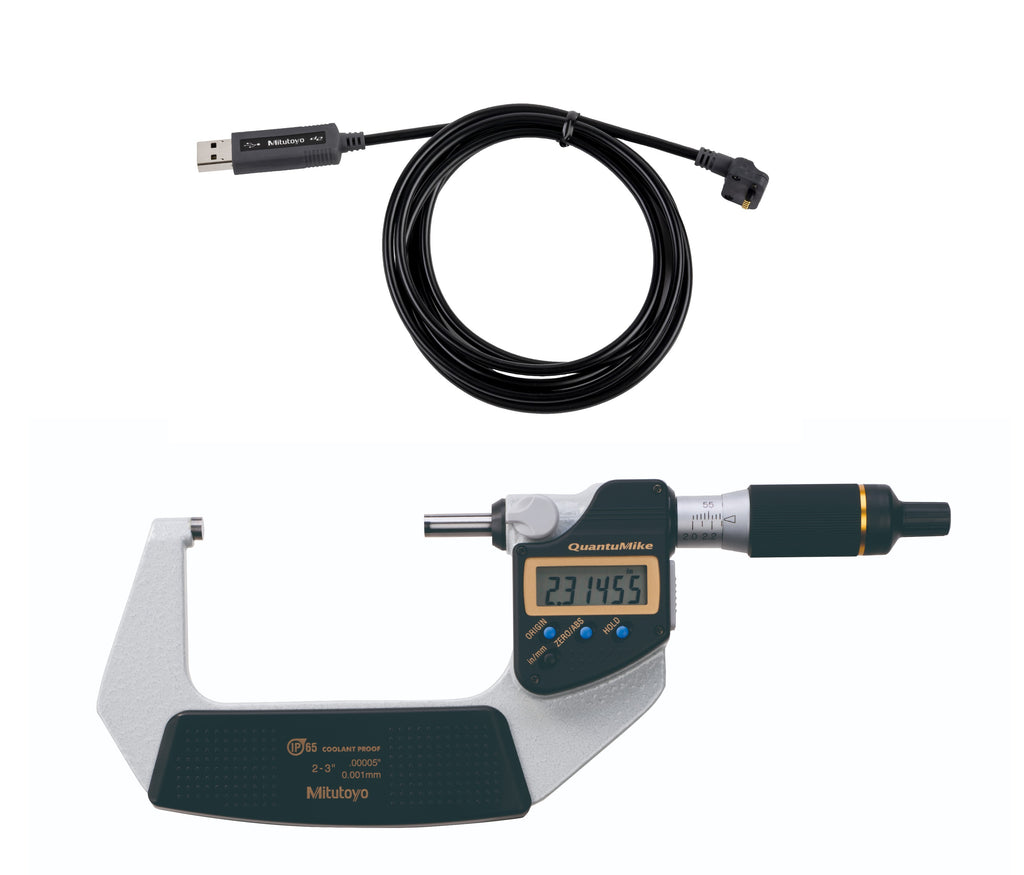

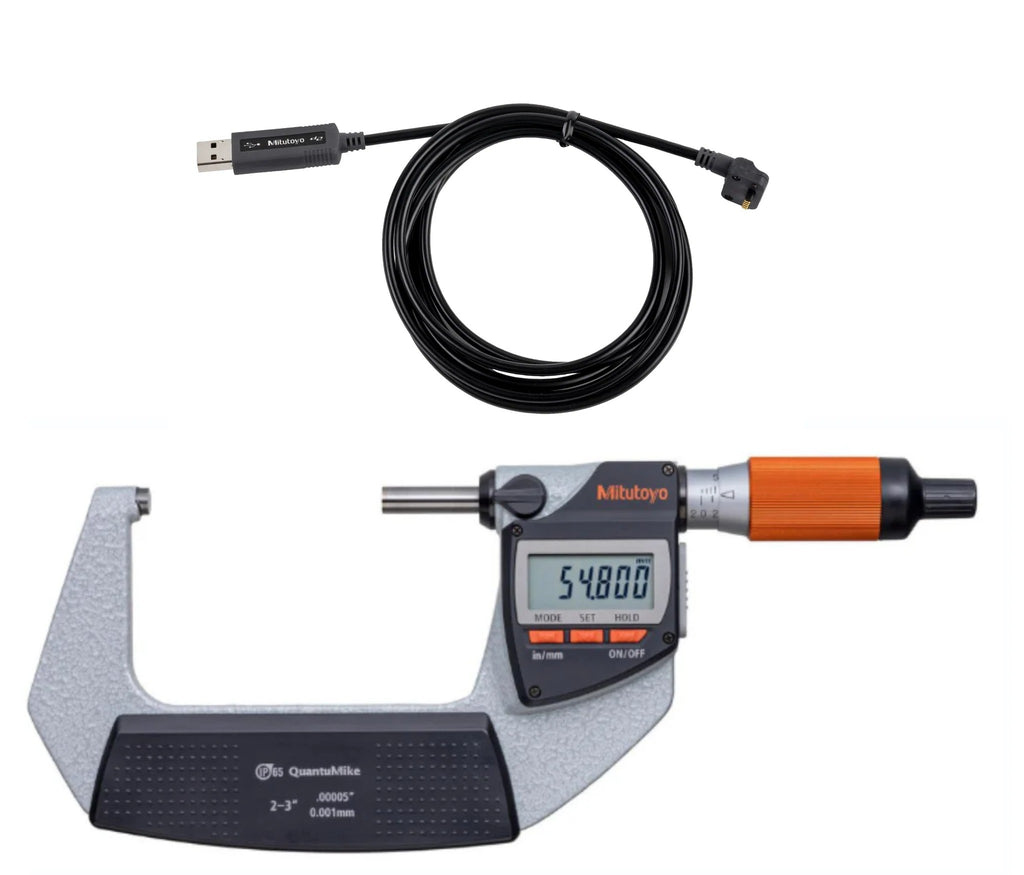

Mitutoyo's QuantuMike Coolant Proof Micrometer to USB Direct Package

This package provides all of the items required to be able to measure your products with a Mitutoyo QuantuMike 2-3" Digital Micrometer, and then send the measured data to a PC through a USB port.

The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

Complete package includes the following...

Mitutoyo 2-3" Digital Micrometer w/SPC Output

    Specifications include...

      • 2-3" / 50-75mm Measuring Range
      • .00005" / 0.001mm Resolution
      • + .00005" Accuracy
      • 2mm Travel per Revolution

    Features include...

      • A patented ratchet thimble mechanism helps ensure repeatability
      • The QuantuMike is equipped with a function lock feature to prevent the origin point from being moved by mistake during measurement.
      • IP-65 protection level
      • Supplied in fitted plastic case
      • With SPC Output

    Functions include...

      • Origin-set, Zero / ABS, Hold, Function lock Auto power on/off , inch/mm conversion
      • Alarm: Low voltage, Counting value composition error

    Mitutoyo 2m Interface Cable Type B

    • This 2 meter data cable from Mitutoyo is designed for transferring measurements from compatible Mitutoyo digital micrometers to a computer or data collection device. It features a USB connector on one end to interface with the computer. The other end has a waterproof B-type connector with an output button to connect to the micrometer. With this cable, users can transmit micrometer measurements directly to software, eliminating the need for manual data entry.
