293-330-30-USB2 Mitutoyo Micrometer to USB Direct Package, 1

293-330-30-USB2 Mitutoyo Micrometer to USB Direct Package, 1" Range, 0.00005" Resolution

$ 502.00$ 476.90

Customer Reviews

Customer Reviews

Based on 3 reviews Write a review

Product Description

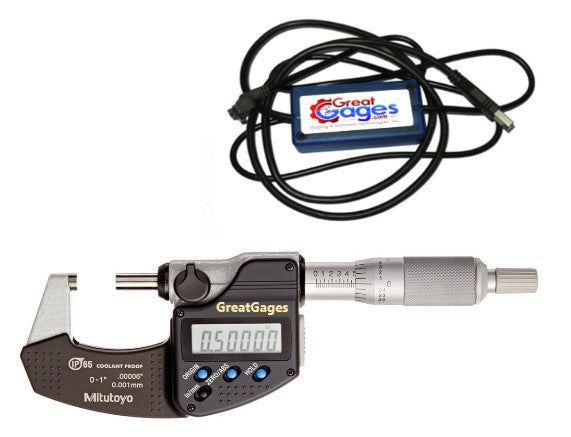

Mitutoyo 0-1" Digital Micrometer to USB Direct Package

This package provides all of the items required to be able to measure your products with a Mitutoyo 0-1" Digital Micrometer, and then send the measured data to a PC through a USB port.

The incoming data is converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

Mitutoyo's most popular Coolant Proof Micrometer w/SPC Output!

The Mitutoyo 293 Series is a line of advanced digital micrometers offering high accuracy and resolution for precision measurement. Available in a range of sizes, this series features an ABSOLUTE linear encoder that eliminates reliance on origin point setting. The ratchet thimble and friction thimble options allow both coarse and fine adjustment. With an IP65-rated dust/water proof body, the 293 Series is ideal for shop floor use. It has a convenient flip-open lever to speed measurements as well as Mitutoyo's DIGIMATIC output for data transfer.

Specifications Include...
  • 0-1" / 0-25.4mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • Accuracy +/- .00005"
Features Include...
  • IP65 Level of Protection, enabling use in environments exposed to cutting oil, etc
  • Measurement data output function is available with a water-resistant connection cable
  • Auto power ON/OFF function
  • With a standard bar
  • Supplied in fitted case
  • Carbide Tipped Faces
  • Ratchet Stop
Functions Include...
  • Origin Set
  • Zero Set
  • Auto Off
  • Data Hold
  • in/mm conversion

    USB Direct Interface Cable for Mitutoyo Micrometers

    • This 2 meter data cable from Mitutoyo is designed for transferring measurements from compatible Mitutoyo digital micrometers to a computer or data collection device. It features a USB connector on one end to interface with the computer. The other end has a waterproof B-type connector with an output button to connect to the micrometer. With this cable, users can transmit micrometer measurements directly to software, eliminating the need for manual data entry.
