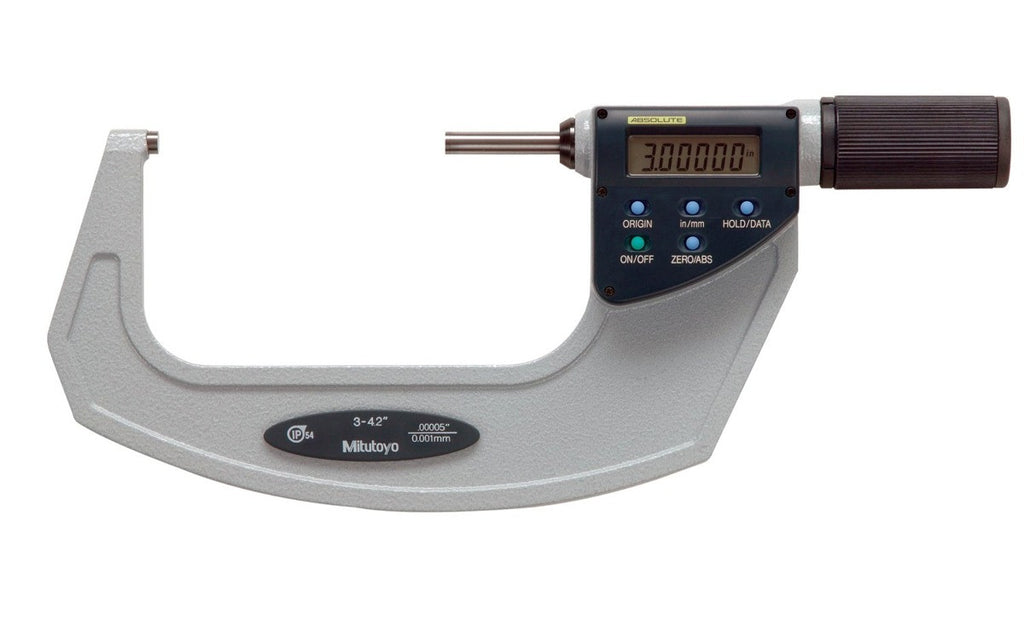

293-679-20 Mitutoyo Quickmike Micrometer 3-4.2"

Mitutoyo Quickmike Micrometer

The Quickmike provides a speedy spindle feed of 10mm / .4” per thimble rotation as compared to the conventional micrometer with 0.5mm / .025” per rotation. Its wide 30mm / 1.2” measuring range allows various workpieces with different shapes to be measured quickly.

Specifications include...

• 3-4.2" / 76.2-106.68mm Measuring Range
• 0.00005" / 0.001mm Resolution
• + 0.00015" Accuracy

• Non-rotating spindle and the new ratchet friction thimble
• Speedy spindle feed of 0.4" / 10mm per revolution
• With absolute linear scale
• IP54 dust/water protection
• With SPC data output
• Supplied in fitted plastic case.
