30-464-2 Groovemaster Set

30-464-2 Groovemaster Set

  • $ 272.01
  • Save $ 25.82


For quick and accurate measurements of internal and external diameters of retaining ring grooves, o-ring grooves, and undercuts.

Precision machined from steel, hard chrome plated for extra wear resistance.

Fits all 6" vernier, dial and digital calipers with a maximum jaw thickness of 0.140".

Measures internal grooves from 0.200" up to the capacity of the caliper.

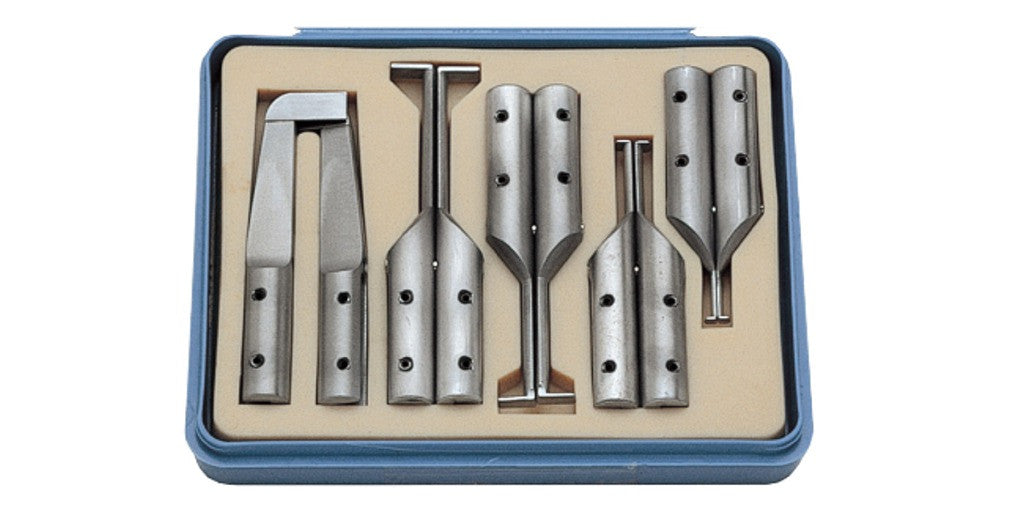

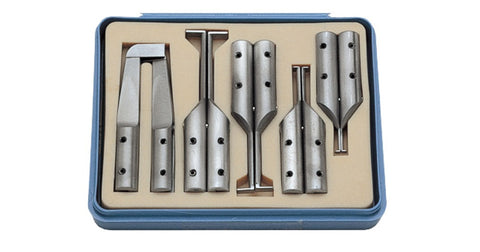

Complete Set includes the following...

  • Groovemaster Size 1
  • Groovemaster Size 2
  • Groovemaster Size 3
  • Groovemaster Size 4
  • Groovemaster Size 5

?ÿSize Min Bore A Width B Max Depth C Groove Depth D
1 0.200" 0.015" 0.400" 0.050"
2 0.300" 0.015" 0.625" 0.070"
3 0.600" 0.025" 1.000" 0.200"
4 0.725" 0.040" 1.250" 0.255"
5 External 0.024" 3.000" 0.375"
