303-712-1A-S Mitutoyo Vertical Optical Comparator PJ-H30 4

303-712-1A-S Mitutoyo Vertical Optical Comparator PJ-H30 4" x 4" & Stand

$ 26,500.00$ 25,175.00

Customer Reviews

Product Description

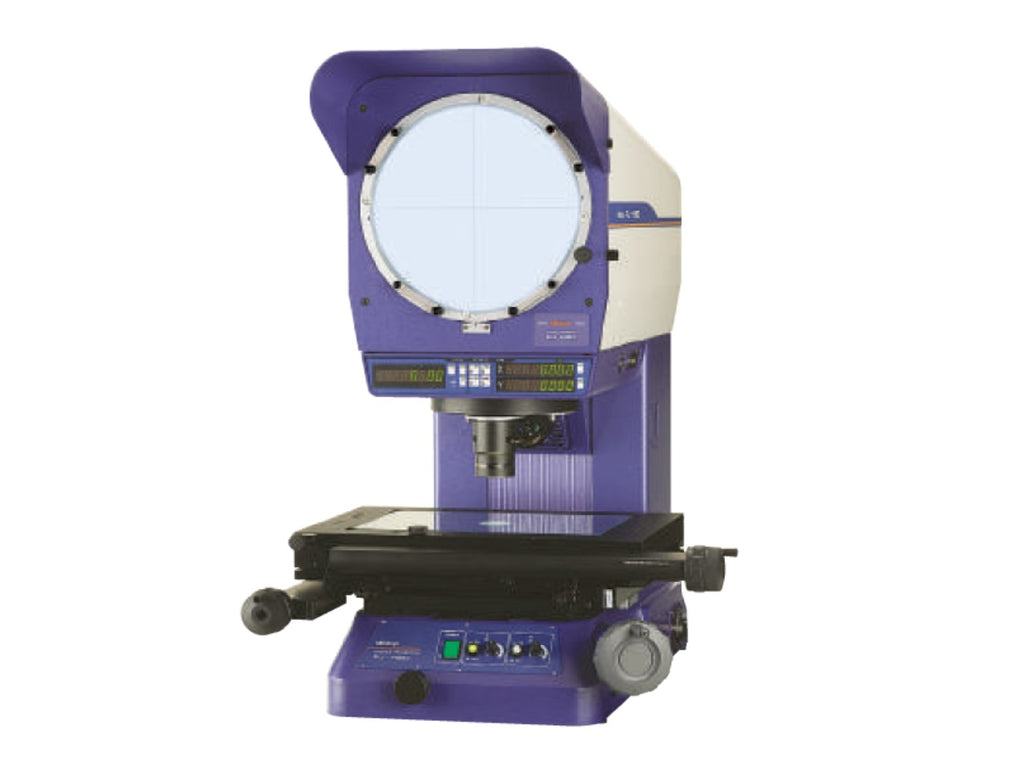

Mitutoyo's PJ-H30A Vertical, High Accuracy Optical Comparator

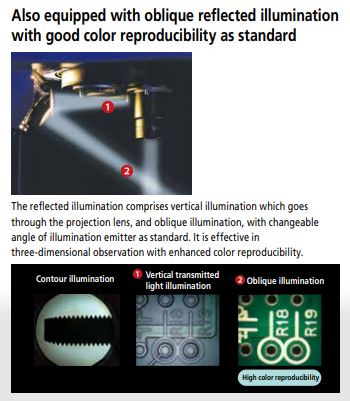

Mitutoyo's newly designed Vertical Optical Comparator with high NA lenses provides drastically brighter and clearer screen images during surface illumination.

The Easy-to-Read digital counters are located near the projection screen, thereby minimizing strain associated with excessive movement. A digital angle display eliminates the need to perform complex calculations. The included Digital Readout Protractor screen facilitates angle measurements.

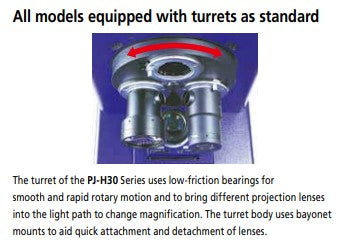

The three-lens mounting turret includes a 10X lens as standard.

  • 5X, 20X, 50X & 100X lenses are available.

A floating table makes measuring quick and easy.

PJ-H30A1010B features include the following...

  • 12" Diameter Screen
  • 4" x 4" / 100mm x 100mm Measuring Range
  • 0.0001" / 0.001mm Resolution
  • 11.8" x 9.4" Table Size
  • 4.1" / 105mm Max Workpiece Height
  • 22lbs Max Workpiece Load

This package includes the following...

  • PJ-H30 Main Unit with 10X Lens
  • Mitutoyo Optical Comparator Stand

FREE Freight Anywhere in the Continental USA

High Visibility Digital Display

Mitutoyo PJ-H30 Display

Since the digital counter (XY axes and angle) built into all models as standard uses a high-intensity LED and a large-character display, it secures high visibility unaffected by the environment. In addition to zero-setting and direction change, the data output of each counter value adopts the highly versatile RS-232C.
