3350-50 INSIZE Digital Indicating Micrometer / Snap Gage 1-2

3350-50 INSIZE Digital Indicating Micrometer / Snap Gage 1-2"

$ 1,107.00

Customer Reviews

Product Description

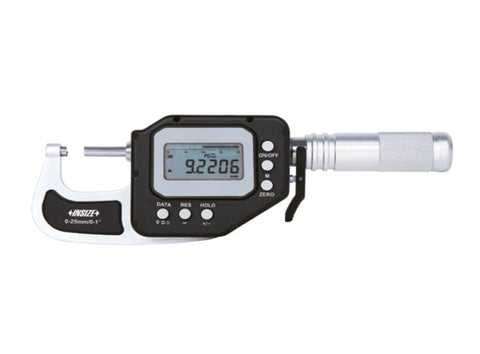

INSIZE Digital Indicating Micrometer

INSIZE introduces their new Indicating Snap Micrometer.

Developed for in-process use in a shop environment, the Snap Mic combines the versatility and ease of use of a standard analog indicating micrometer with the accuracy and resolution of an electronic capacitive system.

Mic Features include...

  • 1-2" / 25-50mm Measuring Range
  • Selectable Resolutions...
    • 0.00001" / 0.0002mm
    • 0.00005" / 0.001mm
    • 0.0005" / 0.01mm
  • Accuracy: +0.00006"
  • Repeatability: +0.00004"
  • Retractable Anvil Travel of 0.12"
  • Non-rotating spindle with carbide tips
  • Large, easy to read digital display
  • Measuring Force: 7-10N
  • Supplied with Gage Block for Zero Setting
  • SPC Output
  • Includes Fitted Plastic Case

Dimensions...

  • Throat Width Dim A: 2.480"
  • Throat Depth Dim B: 1.102"
  • Ratchet Sleeve Diameter: 0.945"

3350-25 Tolerance Limits Display

Check out our video below to learn how to use Insize Snap Gages:
