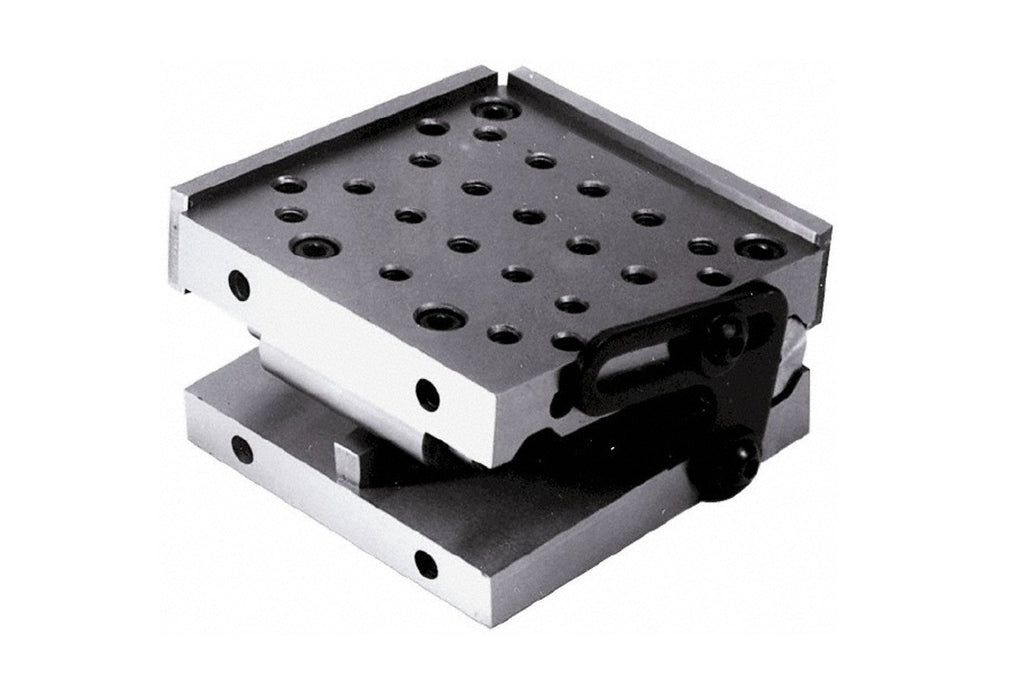

34-793-0 5" Precision Sine Plate

34-793-0 5" Precision Sine Plate

  • $ 838.93
  • Save $ 209.73


5" Precision Sine Plate

Features include...

  • Square and parallel within 0.0002"
  • Tolerance: + 1/16"
  • Two T-slots for 1/4" tee bolts 3" on center
  • Center distance of rolls 5.000" + 0.0005"
  • Working surface top 5" + 1/16" x 6" + 1/16"
  • Dimensions: 6" L x 5" W x 2" H
  • Twenty 1/4-20 tapped holes
  • Minute angle step 0.200" - 0.0001" on gage block roll
  • End rail included
