342-361-30 Mitutoyo Point Micrometer 1

342-361-30 Mitutoyo Point Micrometer 1" to PC Wireless Package U-Wave

$ 1,438.00$ 1,366.10

Customer Reviews

Product Description

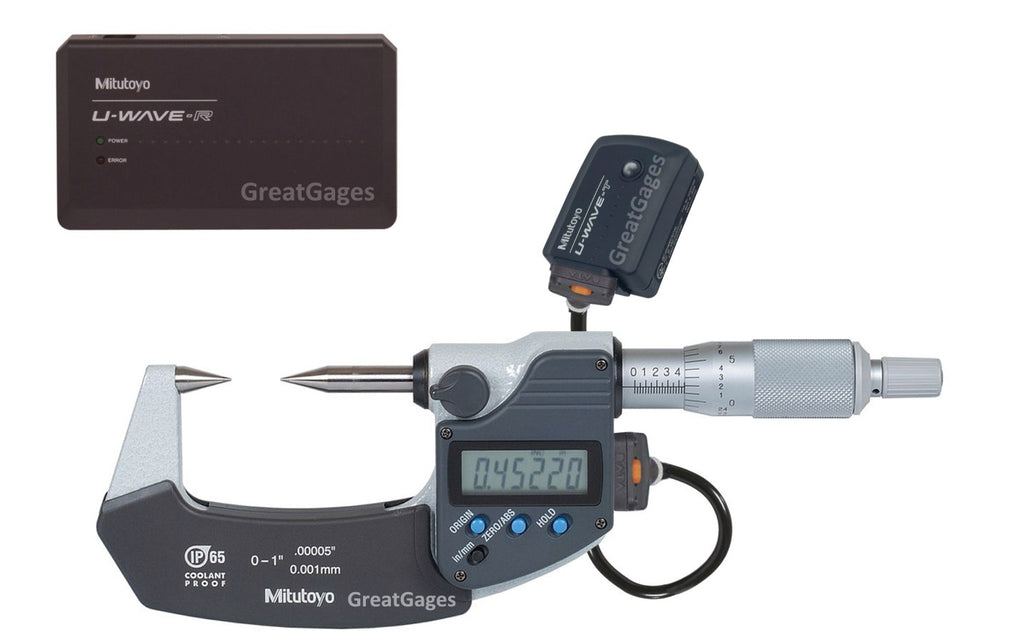

This complete package provides all of the items required to be able to measure your products with a Mitutoyo 0-1" Digital Point Micrometer, and then send the measured data to a PC via Mitutoyo's U-Wave wireless gage interface system.

The incoming data can be converted to a keyboard style entry, so wherever you can type in data is where your incoming data will be placed.

Works great with MS Word, Excel..., even SPC software packages.

Complete package includes the following...

  • Mitutoyo 0-1" Digital Point Micrometer w/SPC Output
  • Mitutoyo's U-Wave Interface Cable
  • Mitutoyo's U-Wave Transmitter
  • Mitutoyo's U-Wave USB Receiver
  • USB connecting cable
  • Mitutoyo's U-Wave programming software

Mitutoyo Micrometer Specifications...

  • 0-1" / 25.4mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • 30° Contact Points
  • + 0.00005" Accuracy
