342-361-30-CAL Mitutoyo 30?ø Point Digital Micrometer 0-1

342-361-30-CAL Mitutoyo 30° Point Digital Micrometer 0-1" with CAL Cert

$ 586.00$ 558.70

Customer Reviews

Product Description

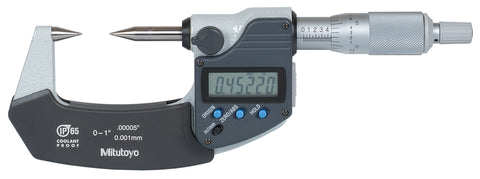

Mitutoyo Electronic Point Micrometer w/ SPC Output

Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions.

Features include...

  • 0-1" / 25.4mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • + .0001" Accuracy
  • 30° Points
  • IP65 water / dust protection
  • The measuring points (carbide-tipped) have approximately 0.3mm / .012 radius
  • SPC Output
  • With Ratchet Stop for constant force
  • Supplied in fitted plastic case


PLEASE SELECT CALIBRATION OPTION FROM PULL DOWN MENU.

  • Standard Calibration
    • Usually takes about 3-4 Weeks to ship from Mitutoyo.
  • 5-Day Calibration
    • Ships out within 1 Week after receipt of order.
  • 1-Day Calibration
    • Ships out in 1 Day after receipt of order.

INCLUDES CERTIFICATE OF CALIBRATION TRACEABLE TO NIST.

Mitutoyo now is offering their most popular gages with an ISO/IEC 17025 Accredited Certificate of Calibration that is traceable to NIST.

These calibrations are performed at Mitutoyo America's A2LA Accredited Calibration Laboratory in Aurora, Illinois after receipt of order.

The Open Date Put Into Service is to be filled out by the end user when the gage is first used.
